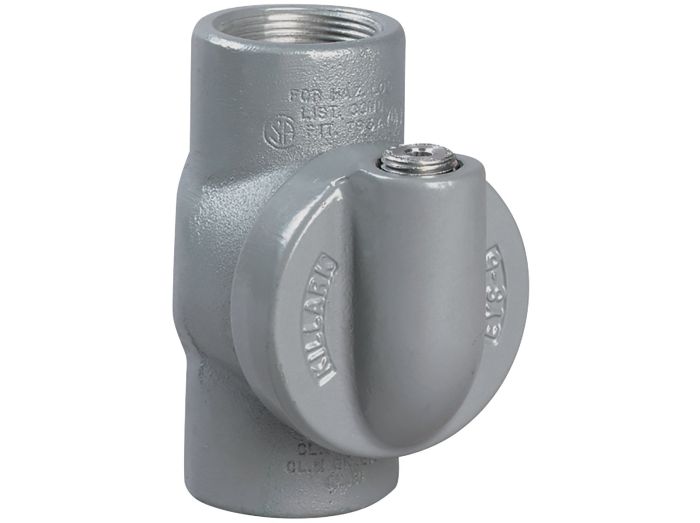

Hubbell EYS1 EYS Seal Fitting Aluminum 1/2 inches Female/Female

Product Description

The HUBBELL EYS1 is a ½" EYS seal fitting made from aluminum with a female/female connection. It is designed to minimize the passage of gases and vapors and prevent the passage of flames in hazardous locations. The fitting features NPT tapped hubs to ensure ground continuity and a large opening for easy fiber packing.

• Large opening for easy packing of fiber and pouring of compound
• Integral bushings in conduit hubs to protect conductor insulation from damage
• NPT tapped hubs to ensure ground continuity

Product Highlights

This aluminum sealing fitting is ideal for use in hazardous locations to prevent the spread of flames and gases through conduit systems.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: EYS1

Technical Specifications

• Catalog Number: EYS-1
• Color: Gray
• EU RoHS Indicator: Contact Manufacturer
• Finish Type: Powder Epoxy Paint
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: EYS Series
• Type: Sealing Fitting
• UPC: 783936110110
• Height: 2.75 in
• Hub Size: 1/2"
• Length: 4.75 in
• Width: 4.75 in
• CSA File Number: LR11716
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E10514
• Finish: Electro-Static Powder Coated
• Suitable For Use With: Vertical/Horizontal Conduit
• UNSPSC: 39131708
• Connection Type: Female Hub
• Position: Vertical and Horizontal
• Trade Size: 1/2 "
• Turning Radius: 1.188 "
• Composition: Metallic
• Protection Rating: Indoor, Outdoor
• Hazardous Location: Yes
• Net Weight: 0.47 lbs
• Gross Weight: 0.72 lbs
