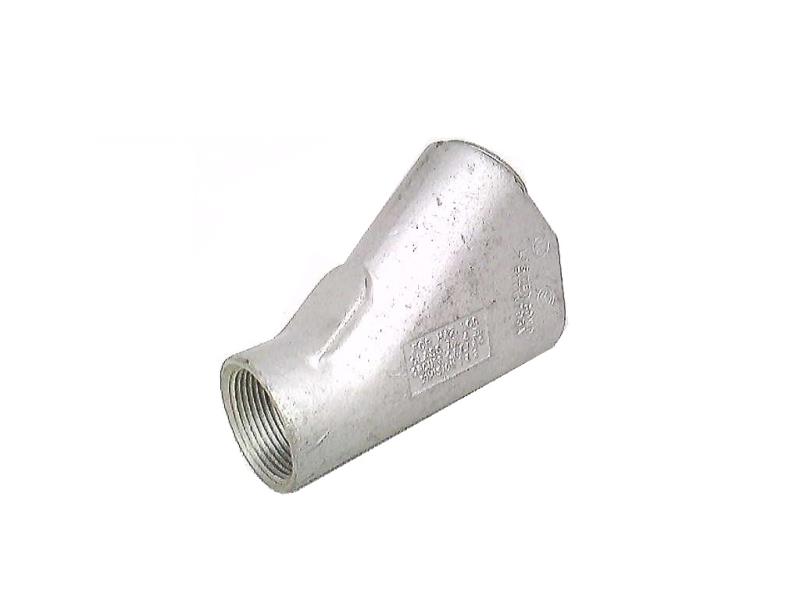

Hubbell EY4 EY Seal Fitting Aluminum 1-1/4 inches

Product Description

The HUBBELL EY4 is a 1-1/4" EY seal fitting made of aluminum with a female/female connection. It is designed to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Features electrostatically applied powder coating.

• Large opening for easy packing of fiber and pouring of compound
• Integral bushings in conduit hubs to protect conductor insulation from damage
• NPT tapped hubs to ensure ground continuity

Product Highlights

The fitting has NPT tapped hubs to ensure ground continuity and a large opening for easy fiber packing. It is suitable for Class I, Divisions 1 & 2 hazardous locations.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: EY4

Technical Specifications

• Application: Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
• Catalog Number: EY-4
• Color: Gray
• EU RoHS Indicator: Contact Manufacturer
• Finish Type: Powder Epoxy Paint
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: EY Series
• Type: Sealing Fitting
• UPC: 783936110042
• Height: 3.75 in
• Hub Size: 1-1/4"
• Length: 11 in
• Width: 7 in
• CSA File Number: LR11716
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E10514
• Carton Quantity: 5
• Category: Conduit/Fitting
