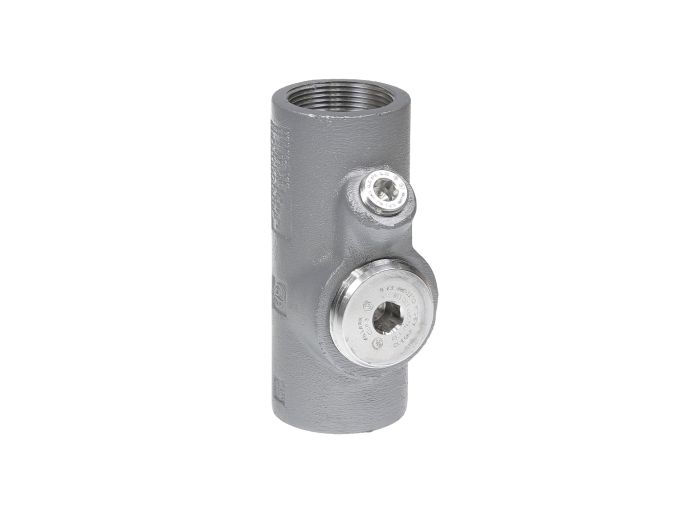

The HUBBELL ENY5 is a 1-1/2" ENY seal fitting made of aluminum with a female/female connection. It is designed to minimize the passage of gases and vapors and prevent the passage of flames in hazardous locations. Features minimal turn radius for optimal spacing and large openings for easy conductor access.
Minimal turn radius for optimal spacing of both enclosures and conduit
Large openings for ease of access to conductors for proper dam installation
Engineered to latest 419 hub specifications for superior continuity and ingress protection
Product Highlights
This aluminum seal fitting ensures safety and ease of installation in hazardous environments.
Product Information
Standard Information
Brand: HUBBELL
Manufacturer Part Number: ENY5
Technical Specifications
Catalog Number
ENY-5
Color
Gray
EU RoHS Indicator
Contact Manufacturer
Finish Type
Powder Epoxy Paint
Material
Aluminum
Series
ENY Series
Type
Sealing Fitting
UPC
783936111148
CSA File Number
LR11716
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups A, B, C, D
Class I, Zones 1 & 2, Groups IIC, IIB, IIA
Class II, Divisions 1 & 2, Groups E, F, G
Class III, Divisions 1 & 2
UL File Number
E10514
Hub Size
1-1/2"
Connection Type
Female Hub
Position
Vertical and Horizontal
Trade Size
1-1/2 "
Turning Radius
1.906 "
Protection Rating
Indoor, Outdoor
Hazardous Location
Yes
Composition
Metallic
Application
Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
