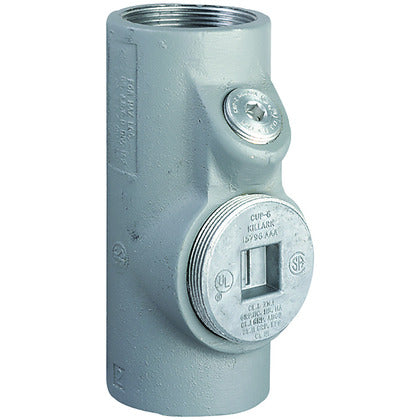

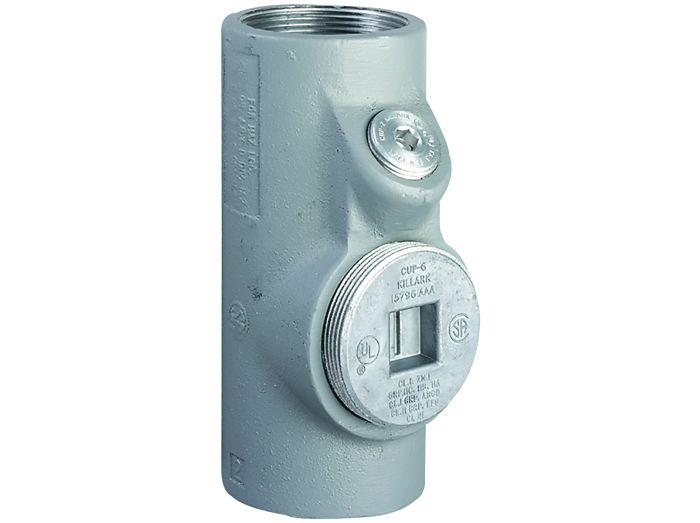

Hubbell ENY-5M Killark Seal FTG 1-1/2 inches FE Femal/Femal

Product Description

The HUBBELL ENY-5M Killark Seal FTG is a conduit sealing fitting with female/female connections. Designed for use with vertical or horizontal conduit, it minimizes the passage of gases and vapors and prevents flames from spreading through the conduit system in hazardous locations.

• Features a tri-coat finish of electro-zinc, chromate sealant, and electrostatically applied powder coating
• Has a 1-29/32 in turning radius
• Suitable for surface mounting

Product Highlights

The Killark ENY-5M seal fitting is ideal for hazardous environments, ensuring safety and preventing the spread of flames through conduit systems.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: ENY-5M

Technical Specifications

• Manufacturer Part Number: ENY-5M
• Series: ENY Series
• Size: 1-1/2 in
• Type: Female/Female
• Application: Purpose of seals in a class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system
• Color: Gray
• Finish: Tri-Coated
• Material: Duraloy Iron
• Mounting Type: Surface
• Standards/Approvals: CSA File No. LR11716|UL File No. E10514|Class I, Div 1 & 2, Groups A, B, C, D, Class I, Zone 1, Groups IIC, IIB, IIA, Class II, Div 1 & 2, Groups E, F, G, Class III
• Suitable For Use With: Vertical/Horizontal Conduit
• Connection Type: Female Hub
• Position: Vertical and Horizontal
• Turning Radius: 1.906 "
• Composition: Metallic
• Protection Rating: Indoor, Outdoor
• Hazardous Location: Yes
• Diameter: 1 1/2 in
• Catalog Number: ENY-5M
• Finish Type: Powder Epoxy Paint
• UPC: 783936111353
• Hub Size: 1-1/2"
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups A, B, C, D Class I, Zones 1 & 2, Groups IIC, IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
