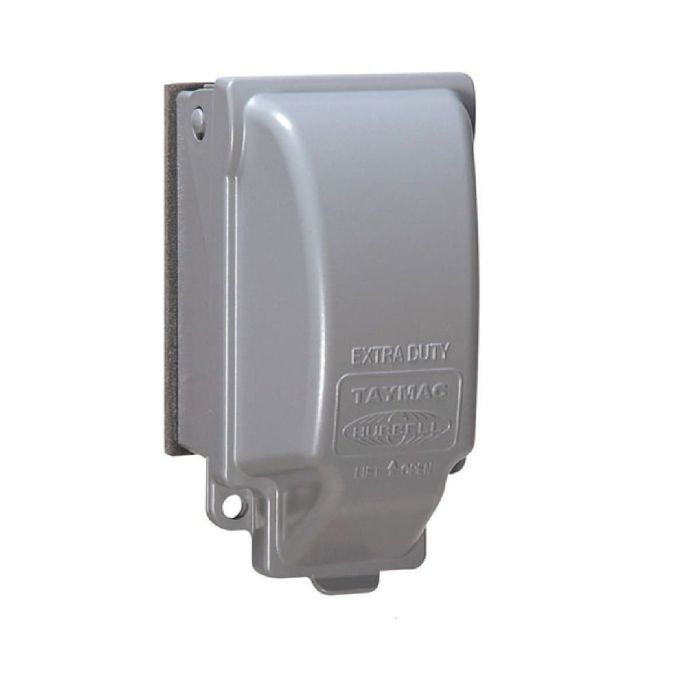

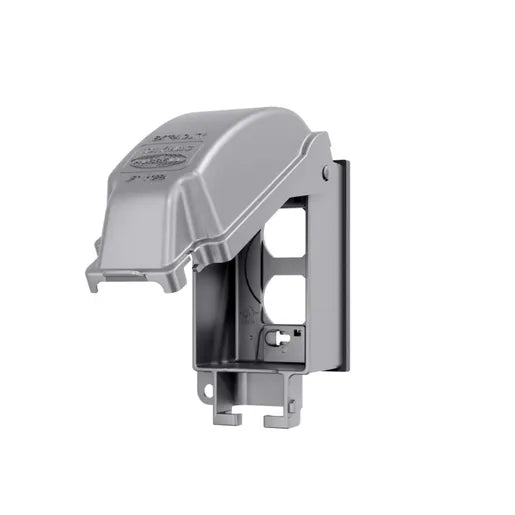

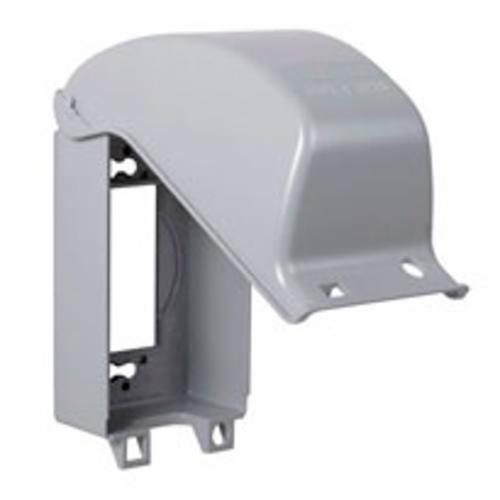

Hubbell Electric MX3200 weatherproof while-in-use box cover

Product Description

The HUBBELL ELECTRIC MX3200 weatherproof metallic while-in-use cover is made of die cast metal. The Quick-Fit keyhole mounting system allows for quick installation. Preconfigured for GFCI and includes a Universal-Fit adapter for custom fitting to multiple other applications. It can be locked open or closed and has an 8-in-1 configuration.

• Patented Quick-Fit keyhole mounting system allows installation in under a minute
• Preconfigured for GFCI and includes patented Universal-Fit adapter for custom fitting to multiple other applications
• Lockable, open or closed

Product Highlights

This TAYMAC weatherproof cover is made of commercial quality die cast construction and is quick and easy to install.

Product Information

Standard Information

• Brand: HUBBELL ELECTRIC
• Manufacturer Part Number: MX3200
• Country of Origin: CN

Technical Specifications

• Application: Electrical Applications
• Material: Die Cast Metal
• Mfg Standards/Approvals: UL E212332|NEC 2014 (Article 406.9A) Approved
• Mounting Orientation: Vertical
• Mounting Type: Surface
• Number of Gangs: 1
• Depth: 3-1/2 in
• Length: 3.55 in
• Width: 3.31 in
• Finish: Powder Coated
• Includes: Gasket, Installation Hardware and Multi-Lingual Instruction
• Country of Origin: CN
• Type: Weatherproof While-In-Use
• Catalog Number: MX3200
• Construction: Metallic
• Cover Type: In-Use
• Material Type: Metallic
• Series: EXTRA DUTY® Series
• UPC: 092326104760
• Cubic Capacity: 75.102576 cu.in
• Height: 6.52 in
• Buy America(n) Qualified: Contact Manufacturer
• Certified Listed: UL Listed
• Compliance: Extra-Duty
• NEC: Compliant
• Nema Rating: NEMA 3R
• Brand: TayMac
• Configuration: Single
• Installation Type: Screw-In
• Manufacturer: TayMac
• Part Number: MX3200
• Item model number: MX3200
• Is Discontinued By Manufacturer: No
• Size: 1 Gang
• Style: Vertical
• Pattern: Cover
• Shape: Rectangular
• Item Package Quantity: 1
• Number Of Pieces: 1
• Switch Style: Decorator
• Included Components: Metal In-Use Cover, Instruction Guide
• Batteries Included?: No
• Batteries Required?: No
