Product Description

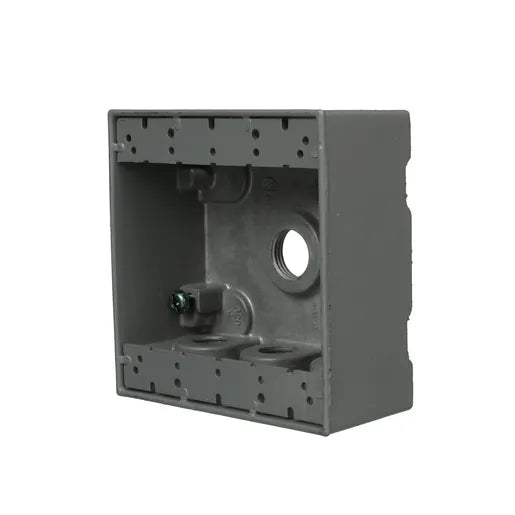

The HUBBELL ELECTRIC 5340-0 is a weatherproof outlet box with lugs, constructed from die-cast aluminum with a powder-coated finish. It has a capacity of 30.2 cu-in and features 2 gangs and seven 1/2 in outlets. Designed for receptacles, switches, and GFCIs, it meets UL 514A and CSA C22.2 No. 18 standards.
- State-of-the-art powder coat finish provides maximum weather ability and scratch resistance
- Eight box mounting options with detachable lugs
- Hubs accept all threaded fittings and threaded conduit
Product Highlights
This weatherproof outlet box is ideal for outdoor electrical connections, providing durability and resistance to the elements.
Product Information
Standard Information
-
Brand: HUBBELL ELECTRIC
-
Manufacturer Part Number: 5340-0
-
Country of Origin: IN
Technical Specifications
-
Application: For receptacles, switches, and GFCIs
-
Capacity: 30.2 cu-in
-
Color: Gray
-
Dimensions: 4-1/2 in H x 4-1/2 in W x 2-1/8 in D
-
Enclosure Type: NEMA 3R
-
Finish: Powder Coated
-
Hub Size: 1/2 in
-
Hub Style: Threaded
-
Includes: (2) Closure Plugs and Mounting Hardware
-
Material: Die Cast Aluminum
-
Mfg Standards/Approvals: UL 514A|CSA C22.2 No. 18
-
Mounting Orientation: Vertical
-
Number of Gangs: 2
-
Number of Outlets: 7
-
Construction: Metallic
-
Material Type: Metallic
-
Thread Size: 1/2 in
-
Type: 2-Gang
-
Actual Depth: 2.25 in
-
Depth: 2.25 in
-
Height: 4.5 in
-
Width: 4.5 in
-
Nema Rating: NEMA 3R
-
Certified Listed: UL Listed
CSA Certified
