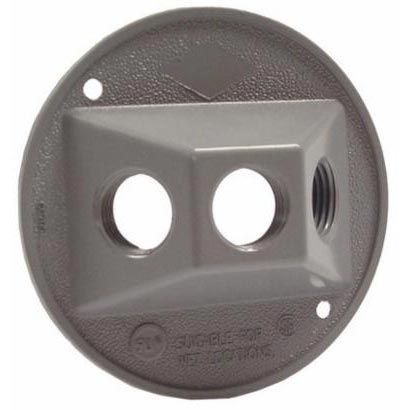

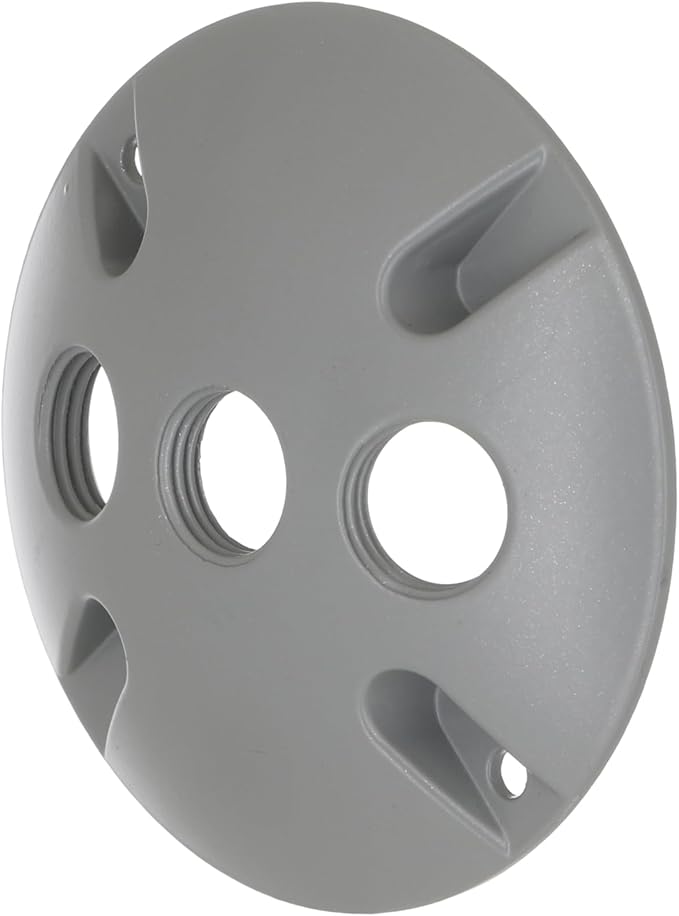

Hubbell Electric 5197-0 weatherproof cluster cover 4-1/8 in Dia

Product Description

The HUBBELL ELECTRIC 5197-0 is a weatherproof cluster cover made of die-cast aluminum with a powder-coated finish. Designed for use with BELL single gang or round weatherproof boxes and electrical applications. It features a 1/2 -14 NPT outlet and includes installation hardware, a gasket, and multi-lingual instructions. The cover has 3 outlets.

• Rugged die cast construction
• Multi-lingual instructions included
• Powder coat finish for weatherability and scratch resistance

Product Highlights

The HUBBELL ELECTRIC 5197-0 weatherproof cluster cover provides a means of mounting BELL lampholders and other accessories.

Product Information

Standard Information

• Brand: HUBBELL ELECTRIC
• Manufacturer Part Number: 5197-0
• Country of Origin: IN

Technical Specifications

• Application: For use with BELL single gang or round weatherproof boxes and electrical applications
• Diameter: 4-1/8 in
• Finish: Powder Coated
• Includes: Installation Hardware, Gasket and Multi-Lingual Instruction
• Material: Die Cast Aluminum
• Mfg Standards/Approvals: UL 514A|UL Recognized|CSA C22.2 No. 18
• Mounting Type: Surface
• Number of Outlets: 3
• Shape: Round
• Cover Type: Lampholder/Cluster
• EU RoHS Indicator: Yes
• Type: Cover
• Actual Depth: 1.094 in
• Cubic Capacity: 20.03445 cu.in
• Depth: 1.125 in
• Industry Standard(s): UL 514A
• Nema Rating: NEMA 3R
• Wattage: 150 watts
