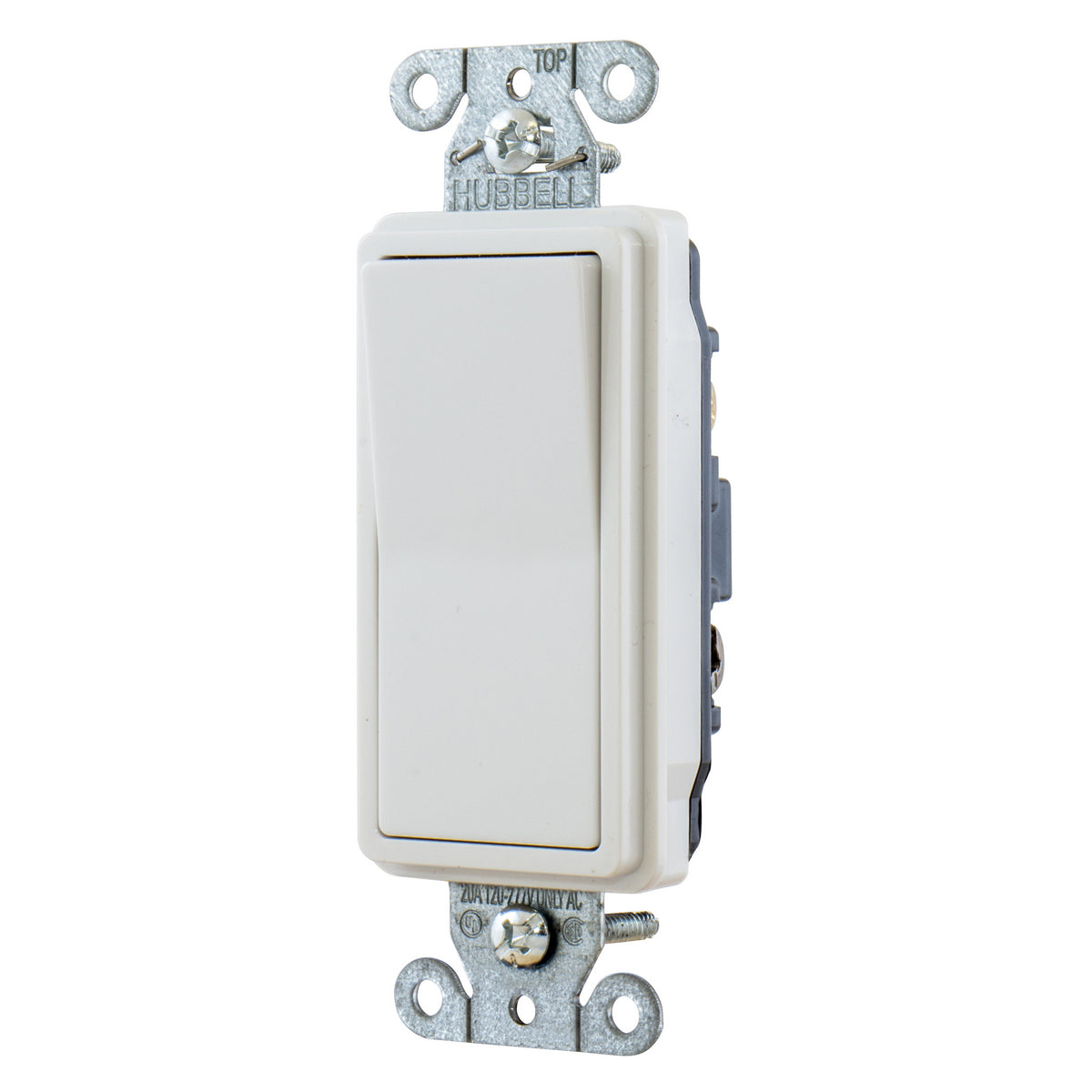

Hubbell DS320W Wiring Device-Kellems 3 Way Styleline 20A 120/277 WHT

Product Description

The Hubbell DS320W is an AC switch designed for general purpose usage. It operates at 120 to 277 VAC and supports a power rating of 20 A, making it suitable for various electrical applications. The switch features a rocker actuator and utilizes a threaded mounting design, which allows for easy installation. It is constructed from thermoplastic material and is available in white.

• 20 A at 120/277 VAC contact rating
• Suitable for commercial heavy duty applications
• Operates in environmental conditions ranging from -40 to 75 degrees Celsius

Product Highlights

The switch is equipped with a nylon toggle, integral ground terminal, and offers 50000 operating cycles, ensuring reliability and longevity in use.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: DS320W

Technical Specifications

• Type: Standard General Purpose
• Amperage Rating: 20 A
• Voltage Rating: 120 to 277 VAC
• Power Rating: 5540 W
• Number of Poles: 1
• Contact Configuration: 2 Position
• Environmental Conditions: -40 to 75 deg C
• Operating Cycles: 50000 cycles
