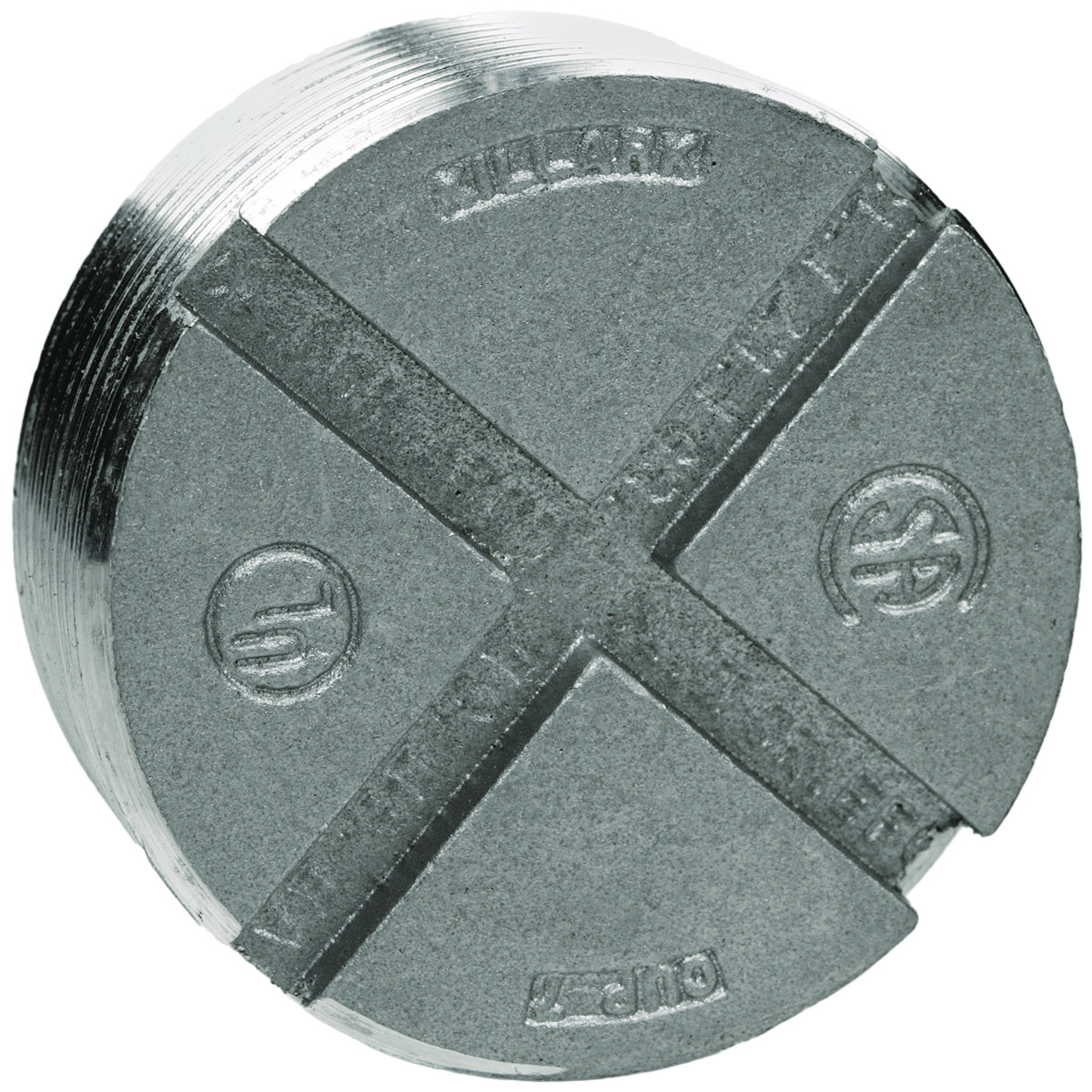

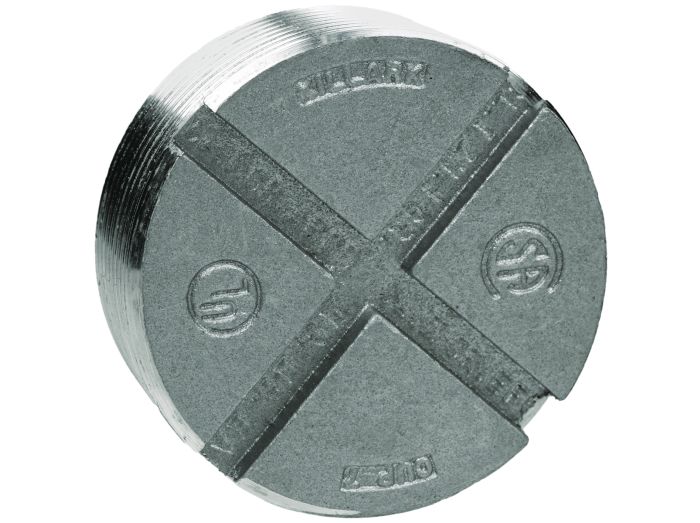

Hubbell CUP8 3 inches Aluminum, Threaded Insert Plug

Product Description

The HUBBELL CUP8 is a 3" aluminum, threaded insert plug designed to close up a tapped hole or hub. It features threaded hubs (NPT) and is suitable for indoor and outdoor use. This recessed plug is constructed from copper-free aluminum with a natural finish. It is UL and CSA approved.

• Threaded hubs (NPT)
• To close up a tapped hole or hub
• Zinc Plated

Product Highlights

The HUBBELL CUP8 is a reliable solution for closing tapped holes, ensuring safety and compliance in hazardous locations.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: CUP8
• Country of Origin: United States

Technical Specifications

• Catalog Number: CUP-8
• Color: Gray
• EU RoHS Indicator: Contact Manufacturer
• Finish Type: Natural
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: CUP Series
• Type: Recessed Plug
• UPC: 783936090085
• CSA File Number: LR11716
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups A, B, C, D Class I, Zones 1 & 2, Groups IIC, IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E10514
• Hub Size: 3"
• Height: 4 in
• Length: 2 in
• Width: 4 in
• Manufacturer: Killark
• Product Series: CUP
• Family Series: Killark Fittings, CUP Series
• Description: Recessed Plug, 3in. Hub, 1/4in. Slot Drive, Aluminum
• Connection Type: Recessed
• Trade Size: 3 "
• Composition: Metallic
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Hazardous Location Rating: Class I, Divisions 1 and 2, Groups A, B, C, D, Class I, Zones 1 and 2, Groups IIC, IIB, IIA, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2
• Hazardous Location: Yes
• Application: To close up a taped hole or hub.
• Conduit Outlet Body Hub Style: Threaded
• Overall Length: 2 in
