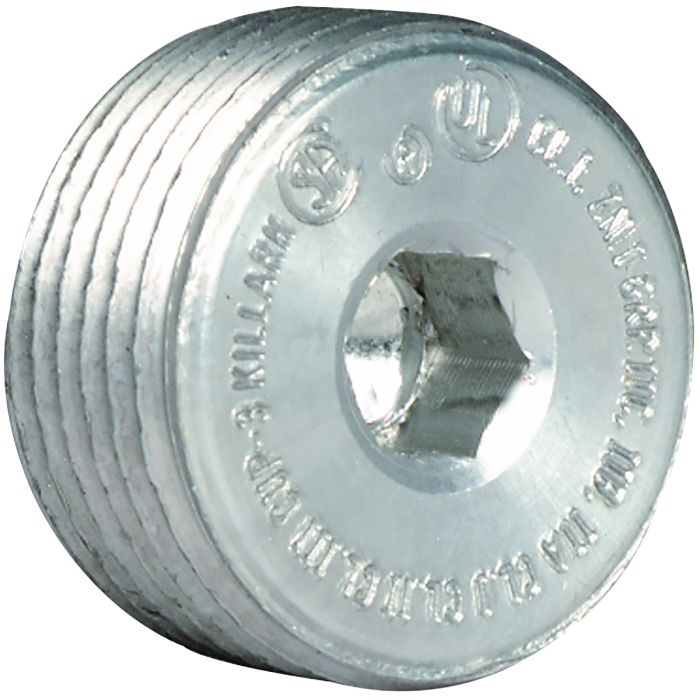

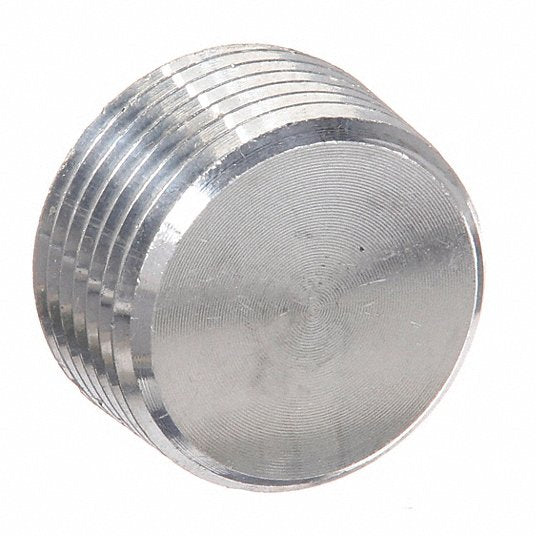

The HUBBELL CUP6 is a 2" aluminum threaded insert plug designed to close up a tapped hole or hub. It is suitable for use with IMC/Rigid Conduit. The plug is recessed to fit snugly when threaded into the opening. Often used with sealing fittings or female fittings that aren't closed off after the conduit system is constructed.
Threaded hubs (NPT)
To close up a tapped hole or hub
Copper free aluminum (Less Than 4/10 of 1%)
Product Highlights
The HUBBELL CUP6 conduit plug is ideal for closing taped holes or hubs in hazardous locations.
Product Information
Standard Information
Brand: HUBBELL
Manufacturer Part Number: CUP6
Country of Origin: United States
Technical Specifications
Application
To close up a taped hole or hub.
Catalog Number
CUP-6
Color
Gray
Finish Type
Natural
Material
Aluminum
Series
CUP Series
Type
Recessed Plug
UPC
783936090061
Hub Size
2"
CSA File Number
LR11716
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups A, B, C, D
Class I, Zones 1 & 2, Groups IIC, IIB, IIA
Class II, Divisions 1 & 2, Groups E, F, G
Class III, Divisions 1 & 2
UL File Number
E10514
Manufacturer
Hubbell
Suitable For Use With
IMC/Rigid Conduit
Part Number #
CUP-6
Brand
HUBBELL KILLARK
Finish
Plain
For Use With
Hub; Taped Hole
Hazardous Location Rating
Class I, Division 1 and 2, Groups A, B, C, D; Class I, Zones 1 and 2, Groups IIC, IIB, IIA; Class II, Division 1 and 2, Groups E, F, G; Class III, Division 1 and 2
Overall Length
1 in
Standards
CSA Certified File (LR11716); UL Listed File (E10514)
