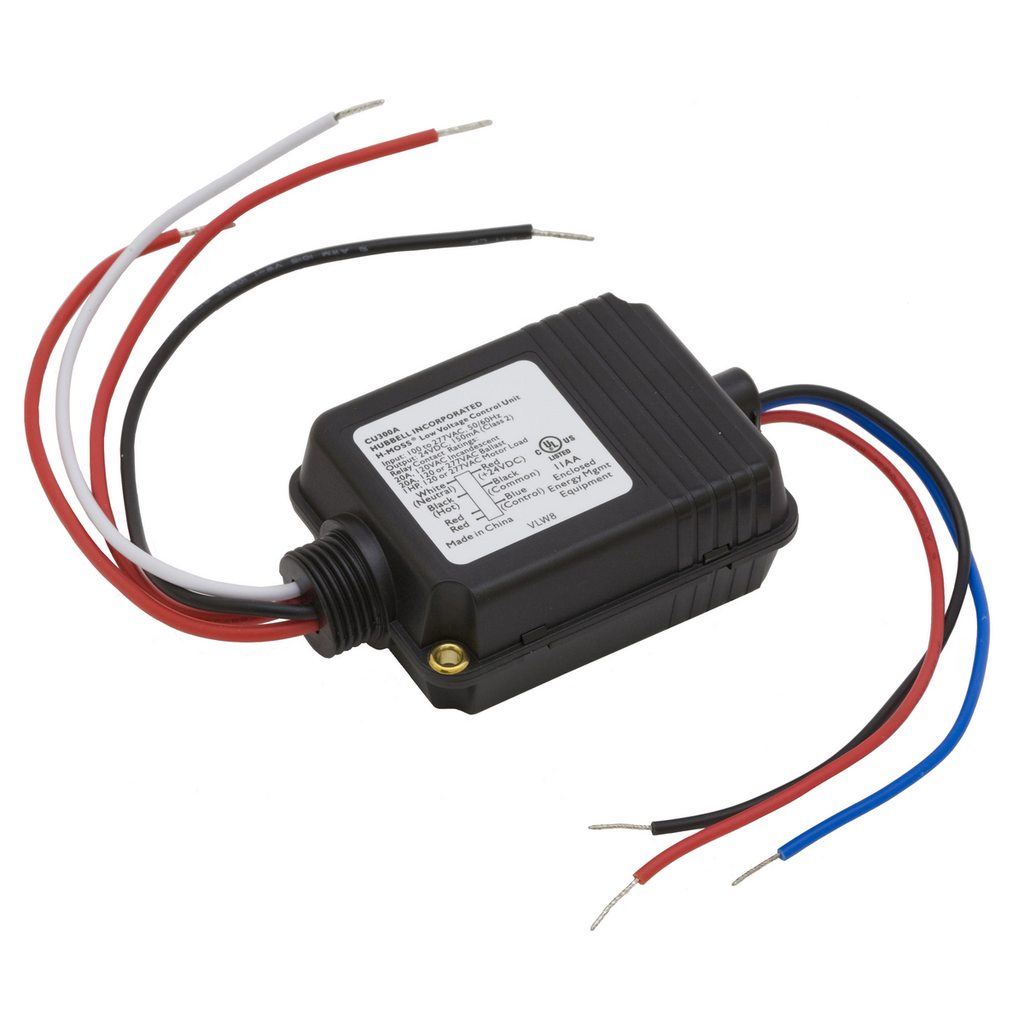

Hubbell CU300A HWD Universal Standard Occupancy Sensor Control Unit 120/277 VAC 0 to 1800 W Power CU300A

Product Description

The Hubbell Wiring Device-Kellems CU300A is a universal standard occupancy sensor control unit. It operates on a voltage rating of 120/277 VAC and supports a power rating from 0 to 1800 Watts. This control unit measures three point six nine inches in length, two point thirty-three inches in width, and one point thirty-six inches in height.

• Compatible with ceiling and wall-mounted sensors.
• Internal relay for controlling external lighting loads.
• 24 VDC power supply for up to four sensors.

Product Highlights

This control unit is designed to work with various Hubbell sensors, providing flexibility in indoor applications.

Product Information

Standard Information

• Manufacturer: Hubbell Wiring Device-Kellems
• Operating Temperature: 32 to 104 degrees Fahrenheit

Technical Specifications

• Size: 3.69 inches L x 2.33 inches W x 1.36 inches H
• Power Rating: 0 to 1800 W
• Voltage Rating: 120/277 VAC
• Control Output: 24 VDC/150 mA
• Response Frequency: 60 Hz
• Material: Thermoplastic
• Humidity Rating: 0 to 95% Non-Condensing Relative
• Operating Cycles: 6000 Minimum
