Hubbell CSB315I CSB315I IV 3WAY SW 15A 120V

Product Description

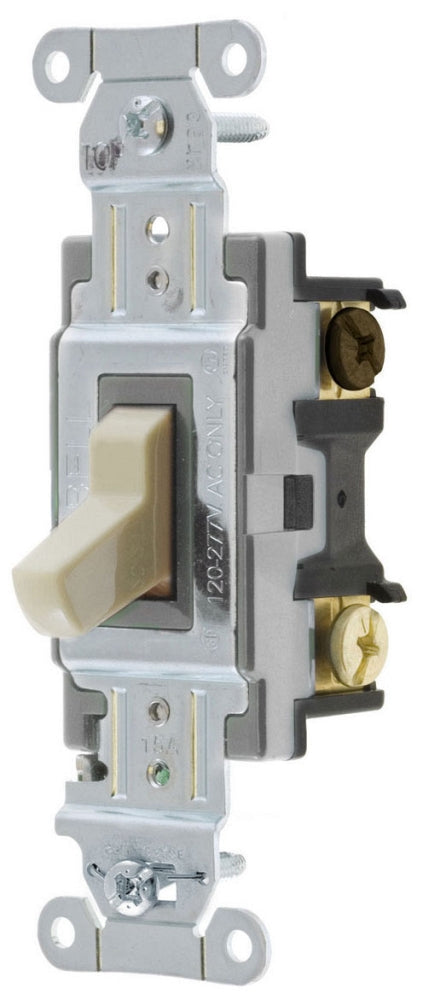

The Hubbell CSB315I is a 3-way toggle switch designed for commercial and general purpose applications. It operates at a voltage range of 120 to 277 VAC and can handle up to 15 Amperes. This switch features a toggle actuator with a NEMA WD-1 enclosure and supports threaded mounting for easy installation. Its robust design ensures longevity with a rating of 50000 operating cycles. It is housed in nylon material, suitable for environmental conditions ranging from -40 to 75 degrees Celsius.

• 3-way configuration for versatile wiring options
• Durable nylon construction
• Meets various safety and flammability standards

Product Highlights

Ideal for various wiring needs across commercial settings. Its design facilitates easy installation while ensuring reliable performance.

Product Information

Standard Information

• Brand: Hubbell
• MPN: CSB315I

Technical Specifications

• Actuator: Toggle
• Amperage Rating: 15 A
• Application: Commercial and General Purpose Applications
• Color: Ivory
• Contact Configuration: 2-Position
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Enclosure: NEMA WD-1
• Environmental Conditions: -40 to 75 deg C
• Manufacturer Part Number: CSB315I
• Material: Nylon
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Power Rating: 4155 W
• Standards/Approvals: RoHS Compliant, CSA Certified, Federal Specification WS896, UL 20 Listed, UL94 V-2 Flammability Rating
• Terminal Type: Back/Side Wire
• Type: 3-Way Specification Grade Standard
• Voltage Rating: 120 to 277 VAC
