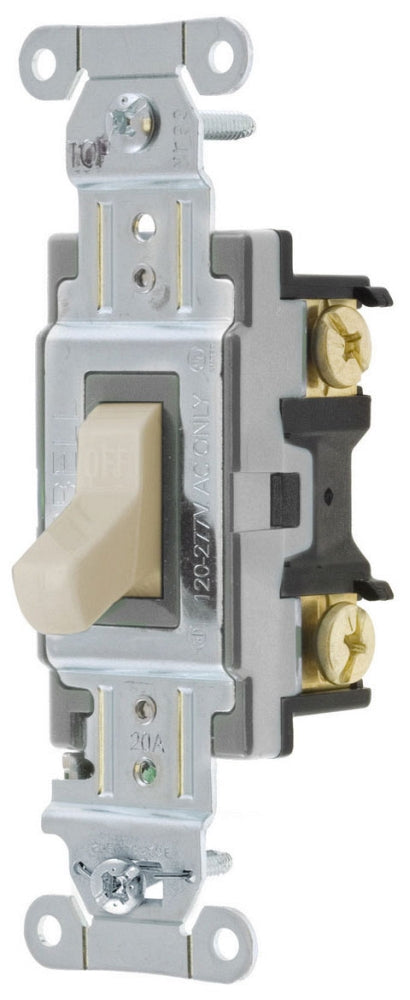

Hubbell CSB120LA Toggle Switch, Spec, SP, 20A 120/277V

Product Description

The Hubbell CSB120LA is a toggle switch designed for commercial and general-purpose applications. It operates on a voltage range of 120 to 277 volts AC. With a 20 amp rating and a power capacity of 5540 watts, this switch provides reliable operation in diverse environments.

• Voltage rating: 120 to 277 VAC
• Operating cycles: 50000 cycles
• Environmental conditions: -40 to 75 degrees C

Product Highlights

The CSB120LA features a 2-position contact configuration. It is suitable for various wiring needs and comes with threaded mounting for easy installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: CSB120LA

Technical Specifications

• Type: 2-Position Standard
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Material: Nylon
• Mounting: Threaded
• Number of Poles: 1
• Contact Configuration: 2-Position
• Voltage Rating: 120 to 277 VAC
• Operating Cycles: 50000 cycles
• Environmental Conditions: -40 to 75 degrees C
