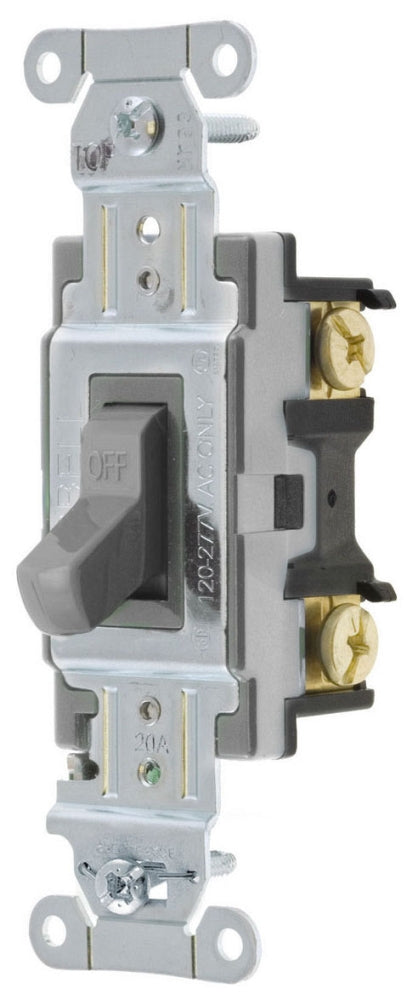

Hubbell CSB120GY Wiring Device-Kellems Toggle Switch 20A 120/277V Replacement MPN

HUBBELL
Brand: HUBBELL
SKU: CSB120GY
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Hubbell CSB120GY is a toggle switch suitable for various electrical applications. This switch operates at a voltage range of one hundred twenty to two hundred seventy-seven volts and has a current rating of twenty amps. It is ideal for commercial and general-purpose applications.

  • Voltage Ratings: 120 to 277 VAC
  • Operating Cycles: 50000
  • Environmental Range: -40 to 75 degrees Celsius

Product Highlights

The CSB120GY toggle switch features a threaded mounting system for secure installation. It includes a back and side wire terminal for versatile wiring options.

Product Information

Standard Information

  • Manufacturer: Hubbell
  • UPC: 78358515405
Technical Specifications
Type
2-Position Standard
Color
Gray
Actuator
Toggle
Material
Nylon
Mounting
Threaded
Dimensions
4.18 x 1.49 x 1.83 inches
Application
Commercial and General Purpose Applications
Power Rating
5540 W
Voltage Rating
120 to 277 VAC
Amperage Rating
20 A
Number of Poles
1
Operating Cycles
50000 cycles
Standards/Approvals
RoHS Compliant, UL 20, UL94 V-2 Flammability Rating, CSA Certified, Federal Specification WS896, NEMA WD1
Contact Configuration
2-Position
Environmental Conditions
-40 to 75 degrees Celsius
Terminal Type
Back/Side Wire
