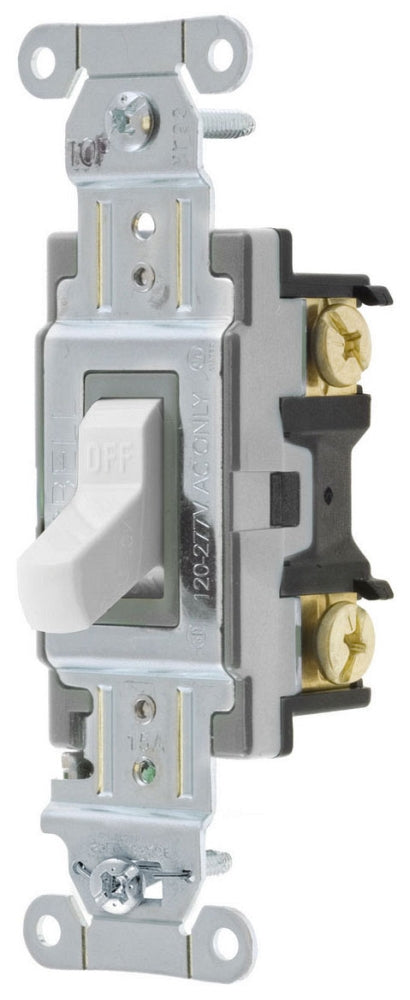

Hubbell CSB115W Switch, Spec, SP, 15A 120/277V, B+S

Product Description

The Hubbell CSB115W is a specification grade AC toggle switch designed for reliable performance in commercial and general purpose applications. This toggle switch operates at both 120 and 277 volts and has a 15 amp rating.

• Durable nylon construction for long-lasting use.
• Operates under various environmental conditions from -40 to 75 degrees Celsius.
• Features a back/side wire terminal for easy installation.

Product Highlights

This toggle switch is built to withstand up to 50000 operating cycles, ensuring a reliable and efficient electrical connection for indoor environments.

Product Information

Standard Information

• Manufacturer: Hubbell Kellems Div
• Part Number: CSB115W

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 15 A
• Power Rating: 4155 W
• Enclosure Type: NEMA WD-1
• Material: Nylon
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Standards/Approvals: RoHS Compliant, CSA Certified, UL 20 Listed
