Product Description

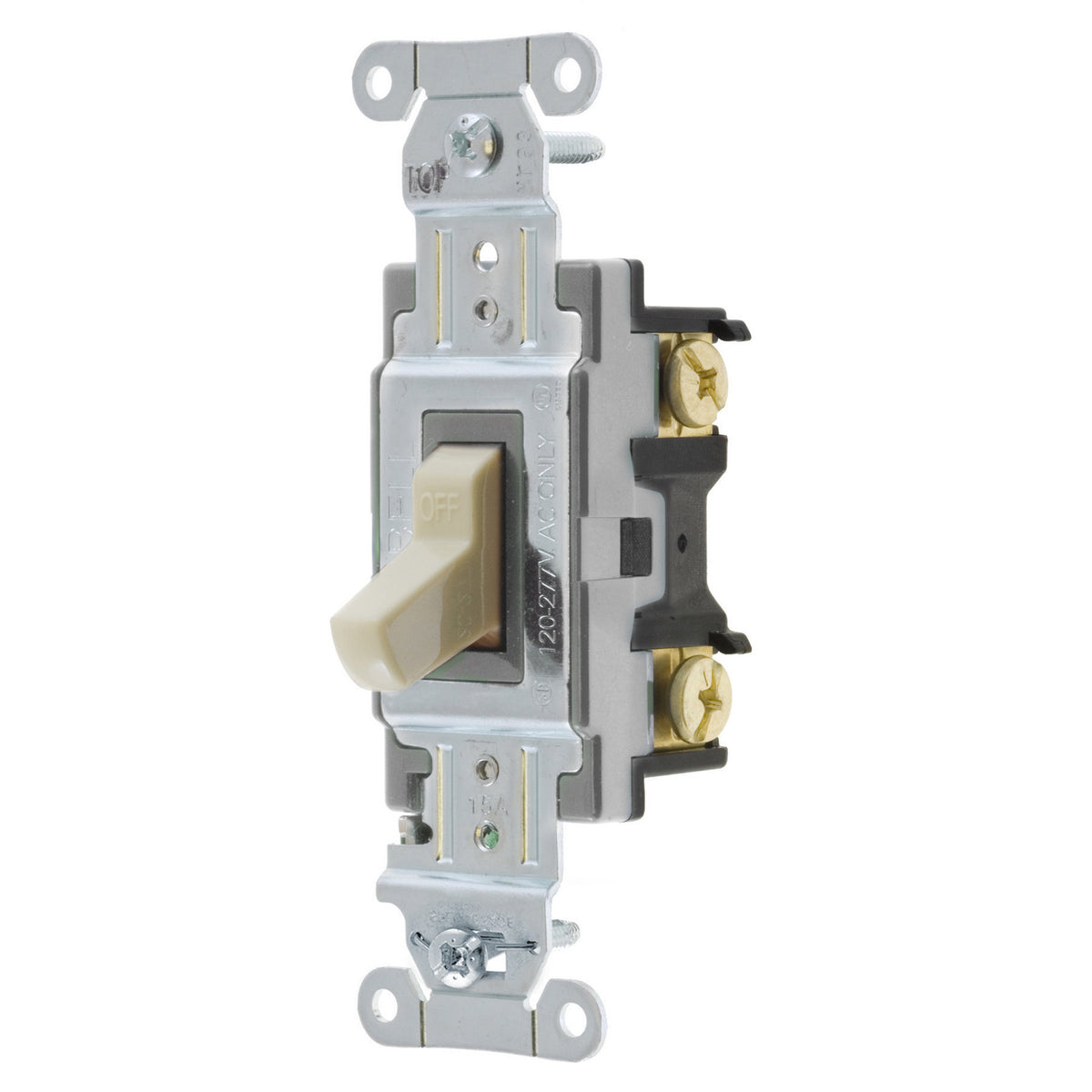

The Hubbell CSB115I is a toggle switch designed for general purpose AC and indoor applications. It operates on a voltage range of one hundred twenty to two hundred seventy-seven volts and supports a maximum current of fifteen amperes. The product features a two-position contact configuration and is suitable for various commercial settings.
- Voltage range: 120 to 277 VAC
- Amperage rating: 15 A
- Operating cycles: 50,000
Product Highlights
This toggle switch meets specification grade standards and ensures durability with its engineered thermoplastic housing. It is perfect for both residential and commercial installations.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: CSB115I
Technical Specifications
-
Actuator: Toggle
-
Application: General purpose AC and indoor applications
-
Color: Ivory
-
Contact Configuration: 2-Position
-
Dimensions: 4.18 x 1.49 x 1.83 inches
-
Environmental Conditions: -40 to 75 deg C
-
Material: Nylon
-
Mounting: Threaded
-
Number of Poles: 1
-
Operating Cycles: 50,000 cycles
-
Power Rating: 4155 W
-
Standards/Approvals: RoHS Compliant, CSA Certified, NEMA WD1, UL 20, Federal Specification W-S-896, UL Listed
-
Terminal Type: Back/Side Wire
-
Voltage Rating: 120 to 277 VAC
