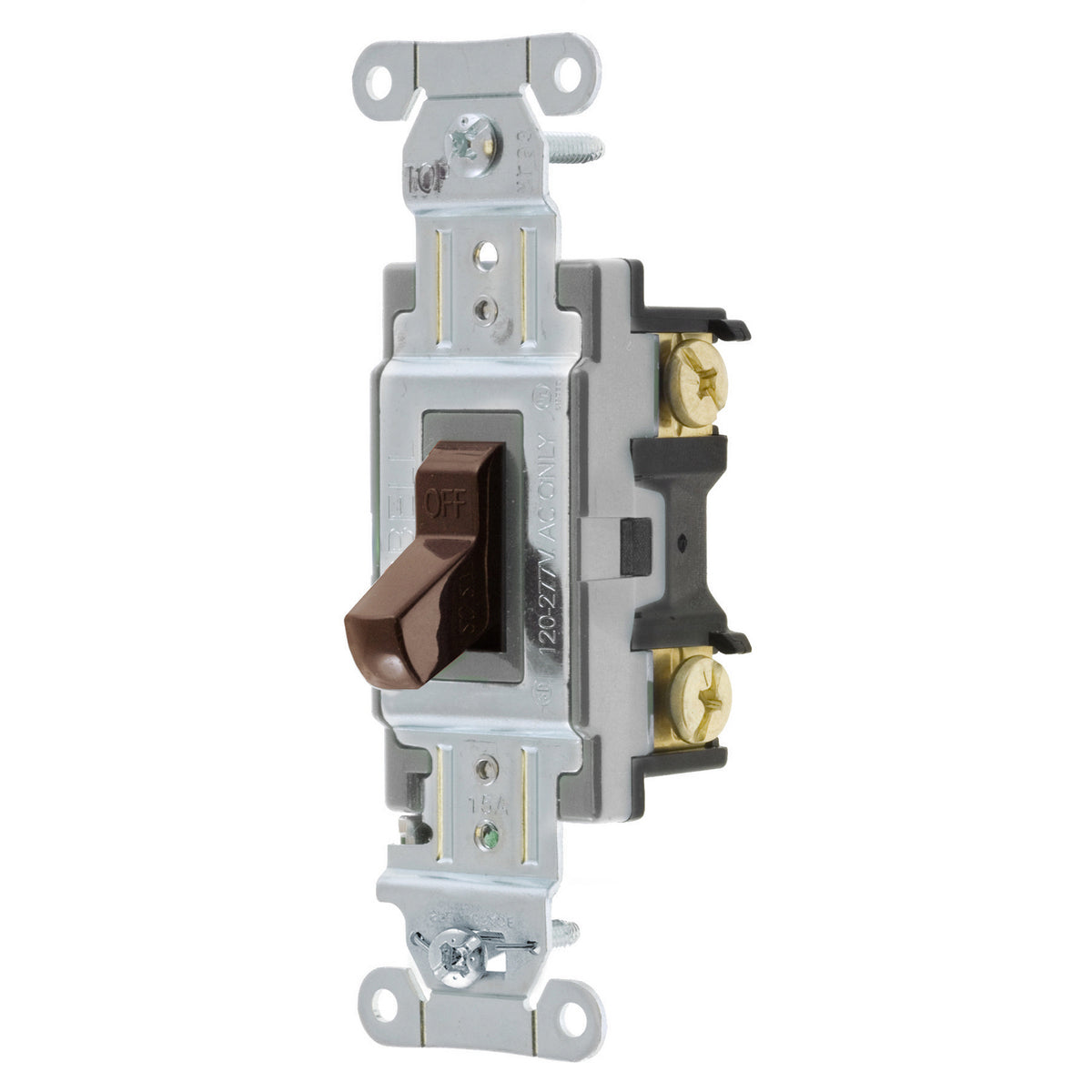

Hubbell CSB115 Toggle Switch 15 A 120-277 VAC (2-Position)

Product Description

Hubbell CSB115 is a commercial-grade single-pole toggle switch rated 15 A at 120 to 277 VAC. It provides two-position maintained operation with back-and-side screw terminals, threaded mounting, and a nylon toggle with thermoplastic housing. The switch carries a 4155 W power rating, documented horsepower values, and is rated for 50,000 operating cycles with an operating temperature range of -40 to 75 °C. It is UL and CSA listed.

• Electrical: 15 A, 120–277 VAC; power rating 4155 W; horsepower: 1/2 hp at 120 V, 1-1/2 hp at 208 V, 2 hp at 240/277 V
• Construction: nylon toggle, thermoplastic top and base; threaded mounting with thread-cleaning captive screw; back and side screw terminals compatible with #14–#10 AWG
• Performance: single-pole two-position maintained switch; 50,000 operating cycles; dielectric withstand 1500 V AC; operating temperature -40 to 75 °C

Product Highlights

Commercial-grade single-pole toggle switch, 15 A at 120–277 VAC, back/side wired, nylon toggle, UL and CSA listed

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: CSB115
• Country of Origin: China

Technical Specifications

• Brand: Hubbell
• Manufacturer Part Number: CSB115
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 15 A
• Power Rating: 4155 W
• Horsepower Rating: 1/2 hp at 120 V; 1-1/2 hp at 208 V; 2 hp at 240/277 V
• Number of Poles: Single pole
• Contact Configuration: 2-Position
• Actuator: Toggle
• Mounting: Threaded (includes mounting screw)
• Terminal Type: Back and side wired; screw terminals
• Wire Size: #14 AWG to #10 AWG (solid and stranded copper only)
• Material: Nylon toggle; thermoplastic top and base
• Operating Temperature: -40 to 75 °C
• Operating Cycles: 50,000 cycles
• Dimensions: 4.18 x 1.49 x 1.83 in
• Weight: 0.15 lb
• Dielectric Strength: Withstands 1500 V AC minimum for 1 minute
• Overload: Minimum 4.8 times rated current for 100 cycles
• Temperature Rise: 30 °C maximum at rated current
• Standards/Approvals: UL Listed; CSA Certified; RoHS Compliant; NEMA WD1; UL 20; Federal Specification W-S-896
• Contact Material: Silver alloy contacts
• Grounding: Stainless steel automatic grounding staple assuring grounding continuity
• Terminal Screw Material: #8 brass screw (integral grounding terminal where applicable)
• Application: General purpose commercial indoor applications
