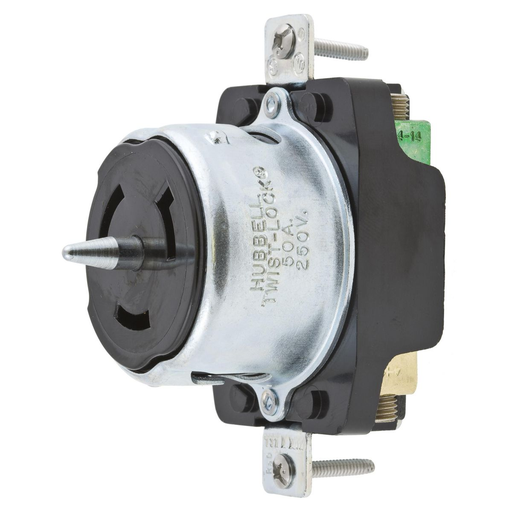

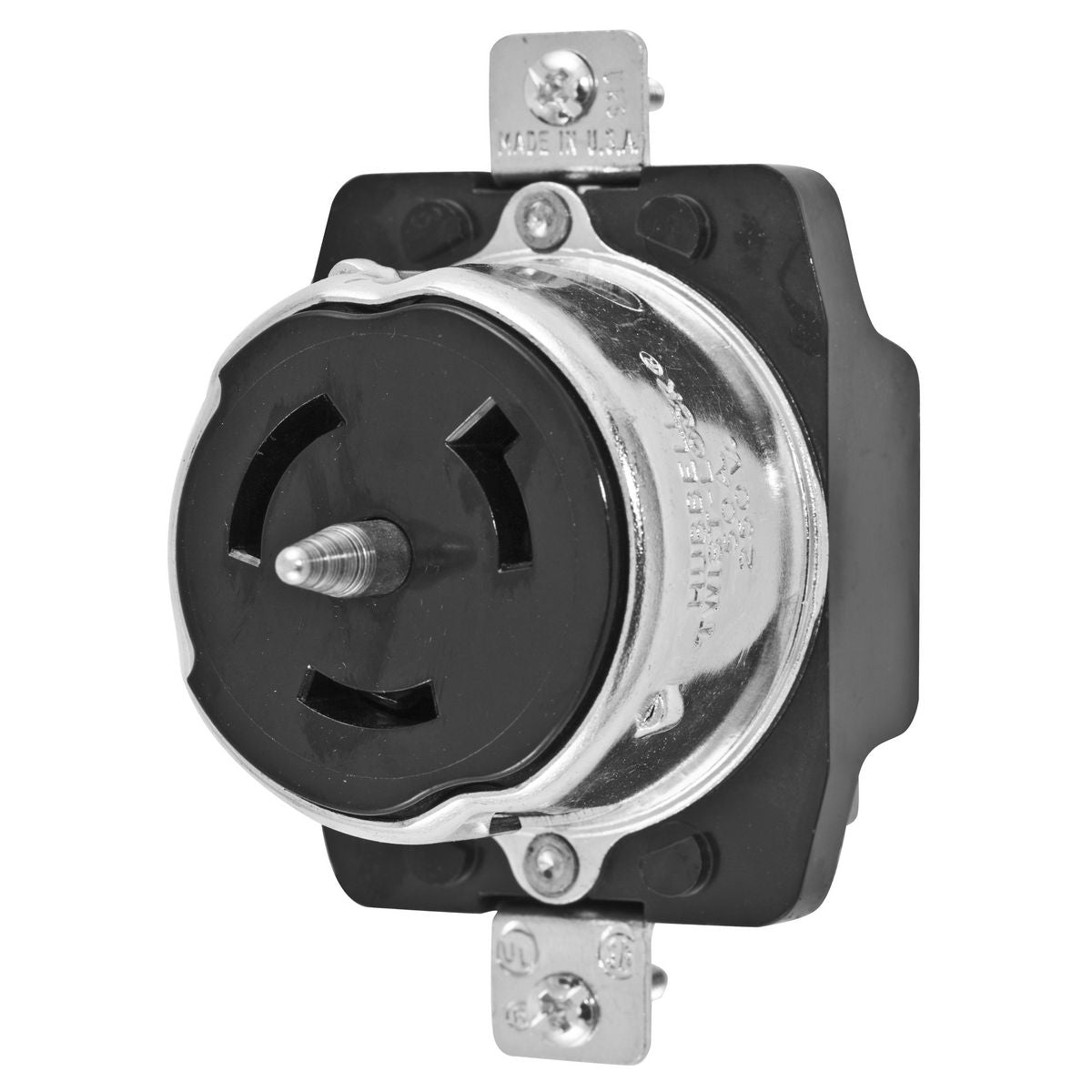

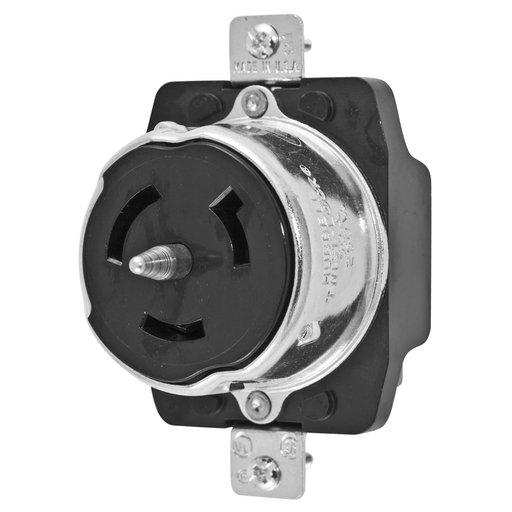

Hubbell CS8269 HWD Twist-Lock Black Single Standard Screw Mount Locking Receptacle

Product Description

The Wiring Device-Kellems CS8269 is a locking receptacle designed for heavy duty applications. This receptacle operates at two hundred fifty volts and fifty amps, featuring a sturdy grounding design and standardized screw mount. The robust construction makes it suitable for industrial environments.

• Voltage Rating: 250 VAC
• Amperage Rating: 50 A
• Material: Phenolic

Product Highlights

This receptacle is designed for indoor applications with a temperature range from negative forty to seventy-five degrees Celsius. Its screw terminal setup is compatible with a variety of wire sizes.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Part Number: CS8269

Technical Specifications

• Type: Heavy Duty Grounding Single Standard Screw Mount
• Number of Poles: 2
• Number of Wires: 3
• Operating Temperature: -40 to 75 degrees C
• Dimensions: 2.69 x 2.12 x 2.36 inches
• Grade: Industrial
• Face Material: Phenolic
• Dielectric Strength: Withstands 2,000V minimum
