Product Description

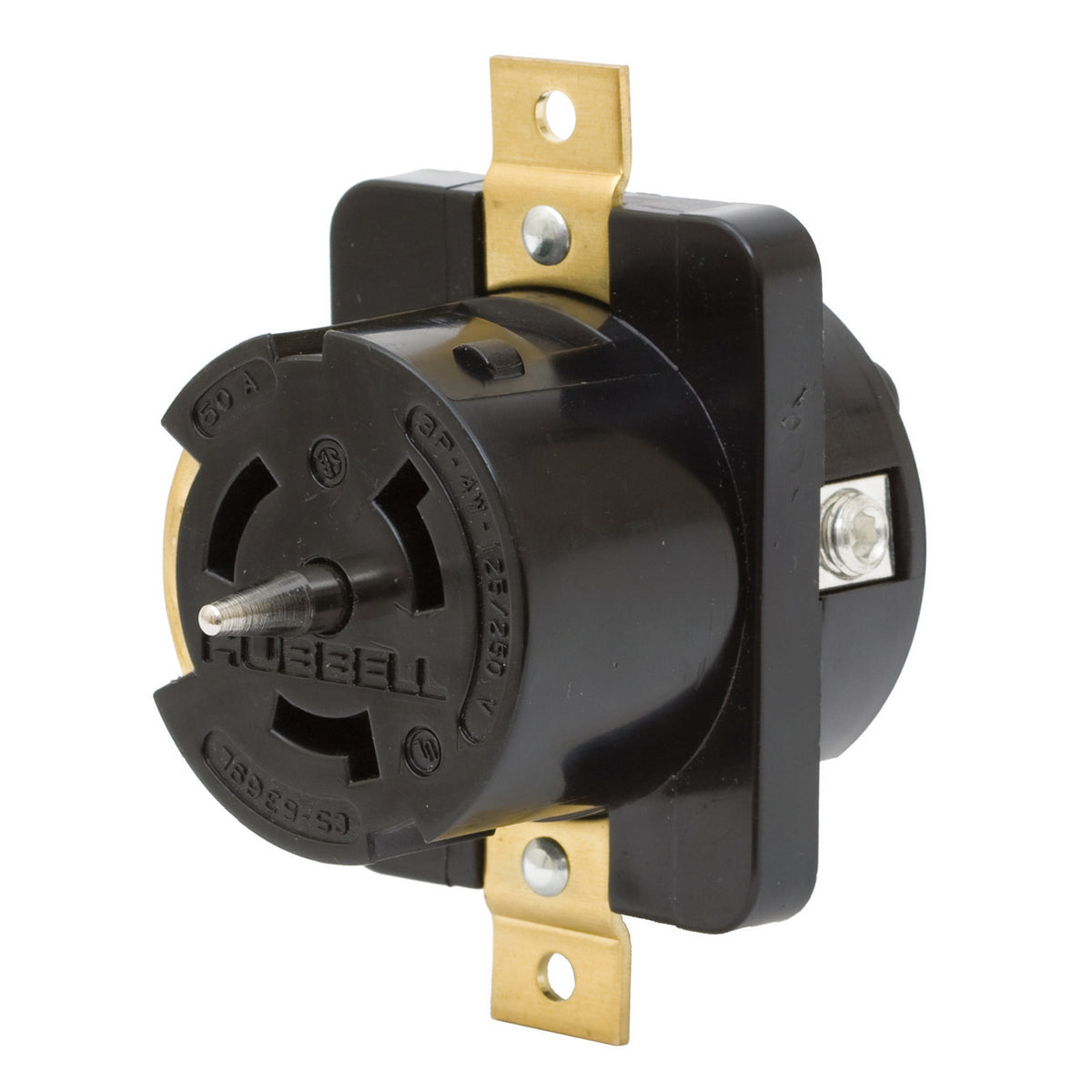

The Hubbell CS6369L is a locking receptacle designed for industrial applications. It operates at fifty amperes with a voltage range of one hundred twenty-five to two hundred fifty volts. This model incorporates a single screw mount for easy installation. The receptacle has three poles and four wires ensuring reliable connectivity.
- Amperage Rating: 50 A
- Indoor applications only
- WD1/WD5 NEMA Rating
Product Highlights
This device is suitable for various indoor settings requiring secure and stable electrical connections. It is designed for use with ten to six AWG wire, making it versatile for different installation needs.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358532070
Technical Specifications
-
Amperage Rating: 50 A
-
Voltage Rating: 125/250 VAC
-
Number of Poles: 3
-
Number of Wires: 4
-
NEMA Rating: WD1/WD5
-
Grade: Industrial
-
Material: Thermoplastic/Composite
-
Dimensions: 3.3 x 2.1 x 2.4 inches
-
Terminal Type: Screw
-
Standards/Approvals: RoHS Compliant, UL 498
