Hubbell CS6364L Lkg Conn, 50A 125/250V, 3P4W

Product Description

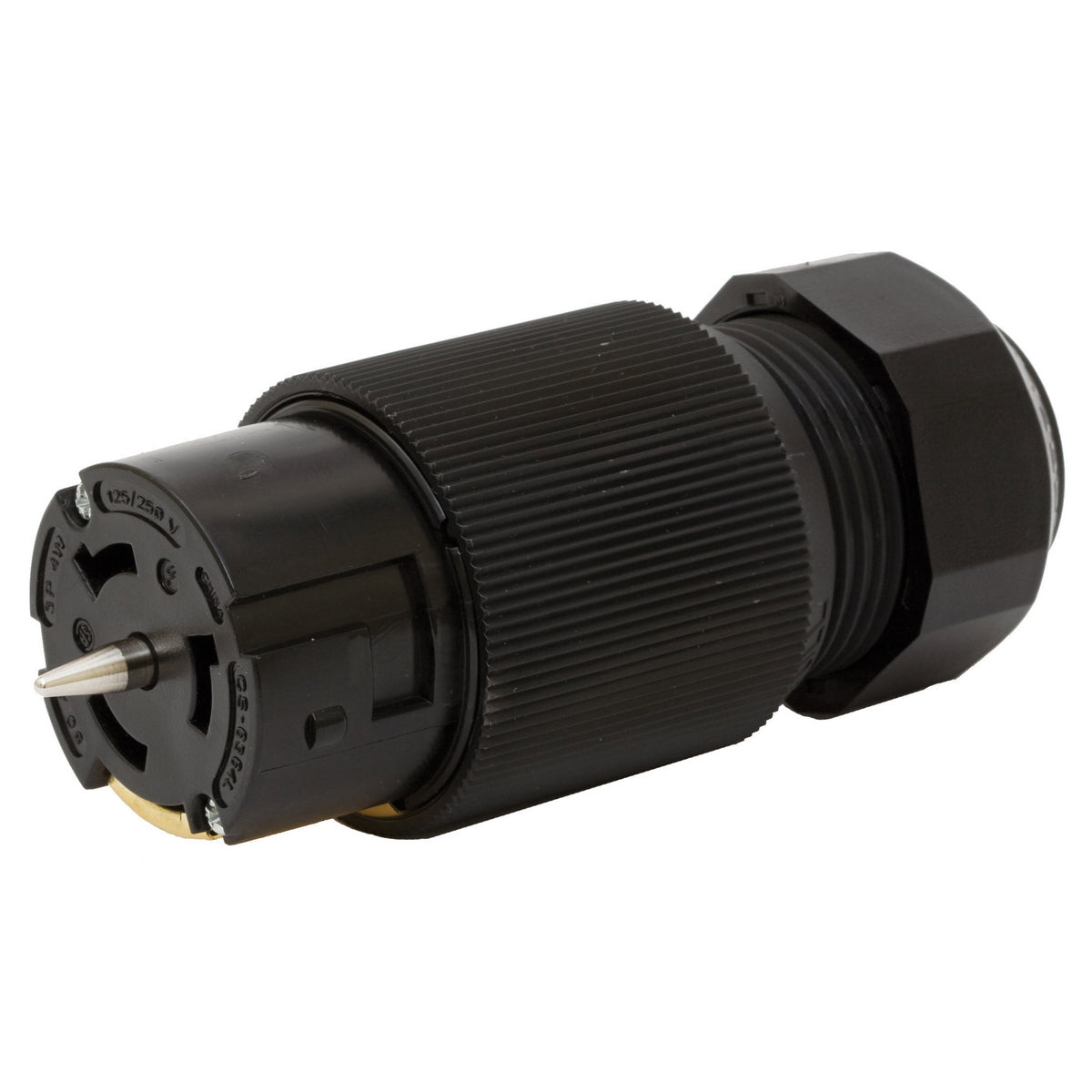

The HUBBELL CS6364L is a Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector. This economy female grounding connector is designed for heavy-duty industrial applications. Rated at 125/250 VAC and 50 A, it features a 3-pole, 4-wire configuration and screw terminals. It is suitable for cords with a diameter of 0.83 to 1.25 inches.

• Cord mounted
• Insulated body
• Indoor dry unless protected by additional means

Product Highlights

This Hubbell locking connector ensures a secure connection for heavy-duty applications. UL and CSA certified for safety.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: CS6364L
• Country of Origin: United States

Technical Specifications

• Amperage Rating: 50 A
• Application: Heavy Duty Industrial Applications
• Color: Black
• Cord Diameter: 0.83 to 1.25 in
• Grade: Industrial
• Manufacturer Part Number: CS6364L
• Material: Composite
• Number of Poles: 3
• Number of Wires: 4
• Standards/Approvals: RoHS Compliant|UL 498|CSA Certified
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Type: Economy Female Grounding Heavy Duty Isolated Standard Cord Mount
• Voltage Rating: 125/250 VAC
• Wire Size: #18 AWG to #8 AWG
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Material - Mounting Hardware: Cord Mounted
• Series: Replacement Part
• Style: Heavy Duty
• Connectivity: Screw Terminals
• Current Rating: 50 A
• Voltage Rating Description: 125/250 VAC
• Conductor Range: #6 AWG
• Number of Conductors: 4-Wire Grounding
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Brand: Hubbell
• Connector Type: Twist
• Plug Type: twist-lock
• Product Grade: Industrial
• Specification Met: UL
• Input Voltage: 250V
• Features: Locking Plug, Cord
• Maximum Input Current: 41-50 A
• Output Voltage: 250 V
• Country of Origin: United States
• Standard: UL498
• Width: 2.5 in.
