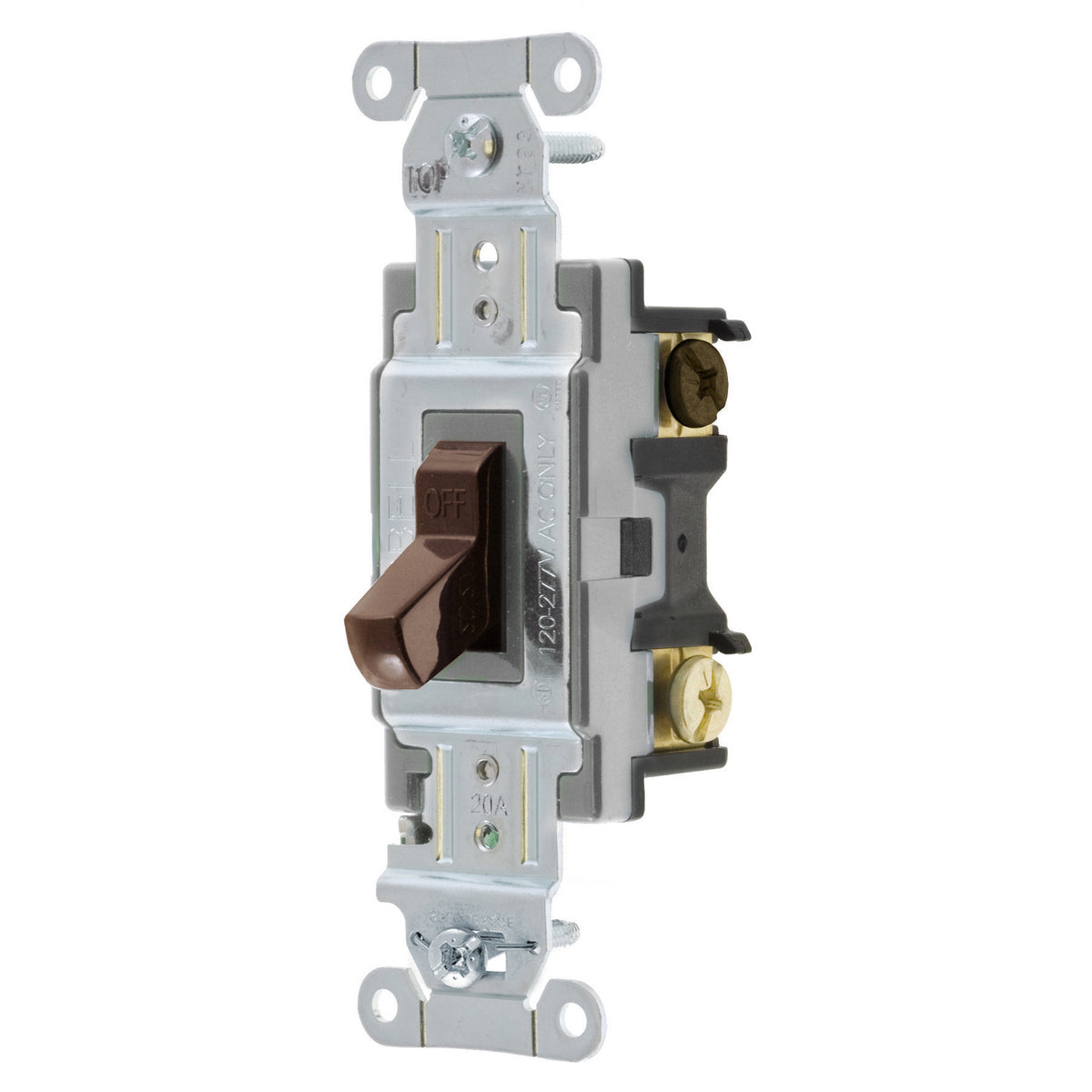

Hubbell CS320 SWITCH, SPEC 3W, 15A 120/277 WH

Product Description

The Hubbell CS320 is a toggle switch designed for 3-way general purpose applications. This switch operates at a voltage range of one hundred twenty to two hundred seventy-seven volts alternating current and provides a current rating of twenty amperes. Its power rating reaches up to five thousand five hundred forty watts. The CS320 features a toggle actuator along with a threaded mounting system for secure installation.

• Voltage Rating: 120 to 277 VAC
• Current Rating: 20 A
• Operating Cycles: 50,000 cycles

Product Highlights

This switch is suitable for commercial specifications and indoor dry environment applications. It is made of nylon, providing durability and resistance to abuse. The device complies with RoHS and CSA standards, ensuring safe use in various settings.

Product Information

Standard Information

• Manufacturer: Hubbell-Kellems DIV
• Part Number: CS320

Technical Specifications

• Actuator: Toggle
• Amperage Rating: 20 A
• Contact Configuration: 2-Position
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 deg C
• Material: Nylon
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50,000 cycles
• Power Rating: 5540 W
• Standards/Approvals: RoHS Compliant, CSA Certified, UL94 V-2 Flammability Rating, UL 20
• Terminal Type: Side Wire
• Type: 3-Way General Purpose Standard
• UNSPSC Code: 39111500
