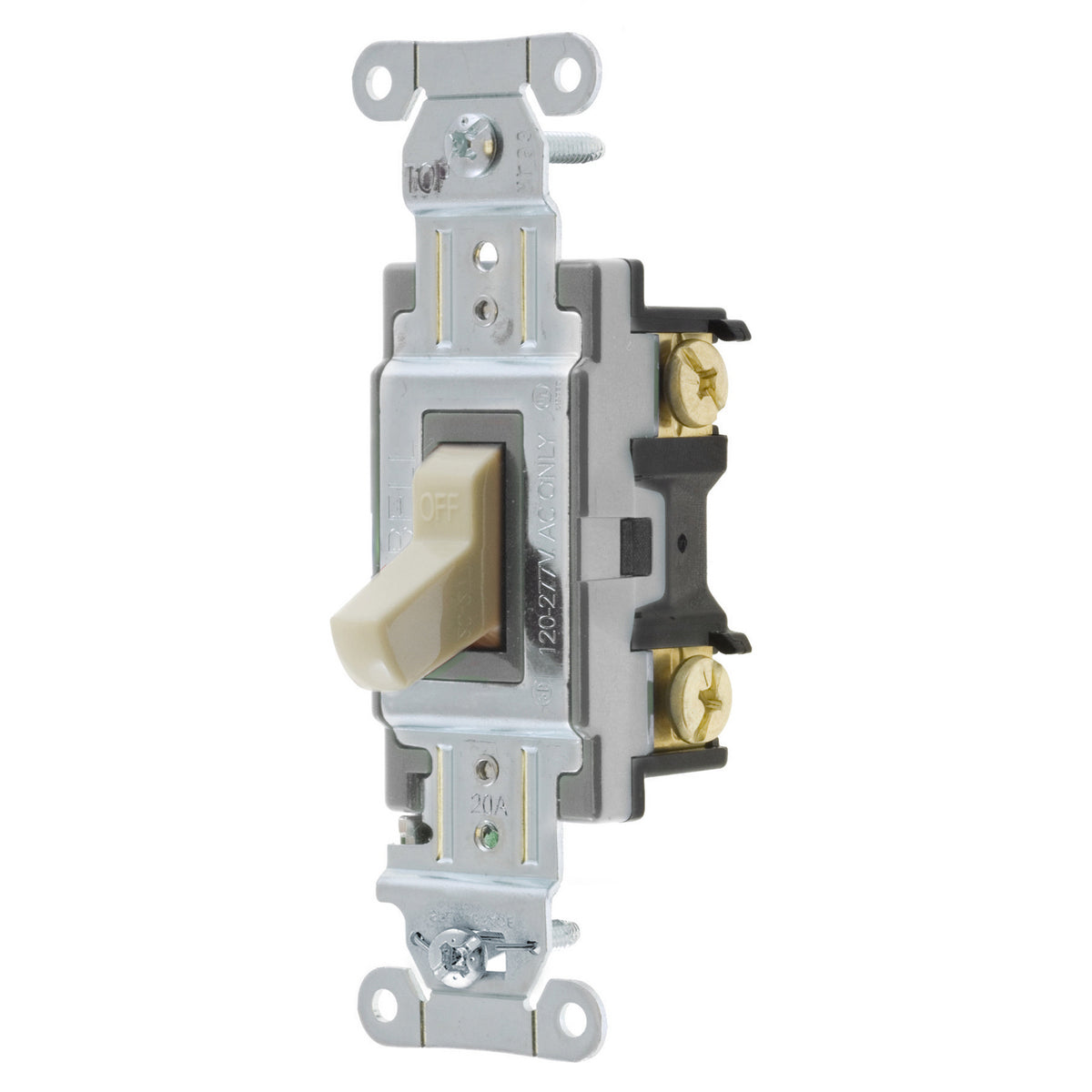

Hubbell CS120I 20A 120/277V SP Toggle Switch. Spec Grade Commercial Series - Ivory

Product Description

The Hubbell Wiring Device-Kellems CS120I is a single pole toggle switch that operates at 20 amps and supports voltages from one hundred twenty to two hundred seventy-seven volts. It is designed for general purpose AC use and is part of the specification grade commercial series. This product features a side wiring connection and comes in an ivory color.

• Single Pole, 20 Amp, 120/277V AC
• Side Wired Only
• Durable nylon construction

Product Highlights

This toggle switch is suitable for commercial applications. It is designed to withstand frequent use with positive snap action.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: CS120I

Technical Specifications

• Current Rating: 20 Amperes
• Voltage Rating: 120-277 Volts
• Wattage: 5540 Watts
• Action: Positive Snap, Off
• Material: Nylon
• Color: Ivory

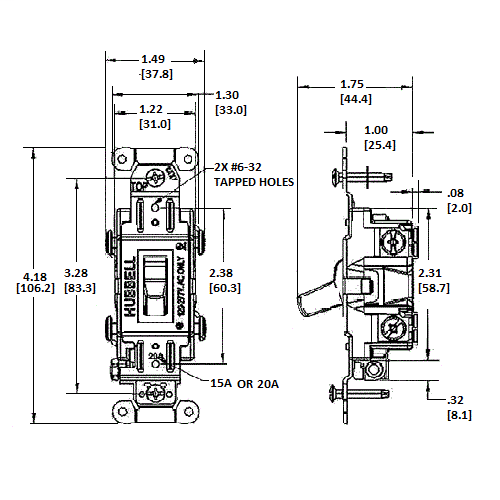

• Width: 2.000 inches
• Height: 1.83 inches
• Length: 4.18 inches
• Weight: 0.15 pounds
• Connection Type: Side Wired Only
• Contact Configuration: Two Position
• Operating Temperature: -40 degrees C
• Operating Cycles: 50000
• Environmental Conditions: Indoor Dry unless protected
• Standard: UL Listed
