Product Description

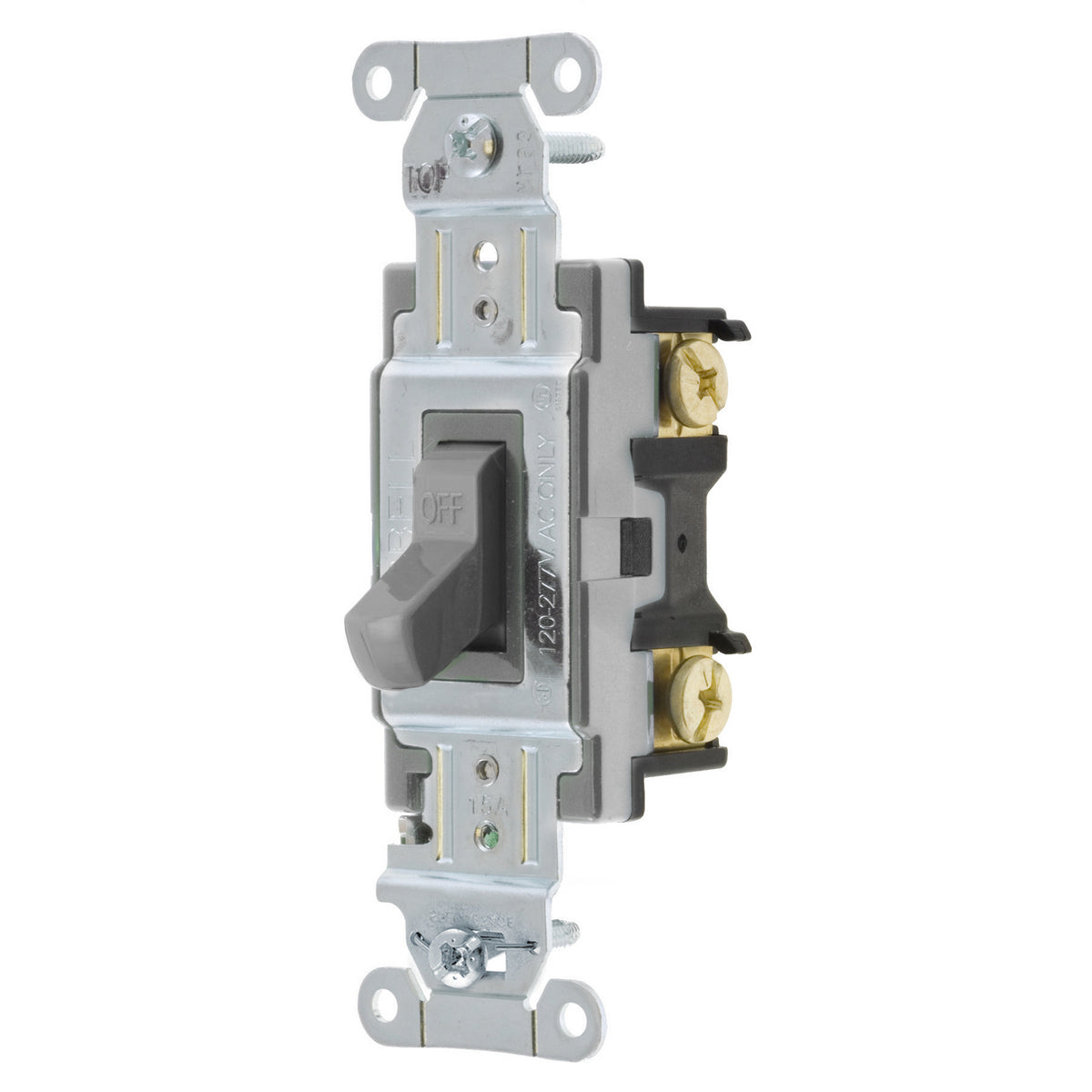

The Hubbell CS115GY is a standard AC toggle switch designed for both residential and commercial use. This switch operates at a voltage range of one hundred twenty to two hundred seventy-seven volts and supports up to fifteen amps of current. The toggle design allows for easy operation in various environments.
- Abuse-resistant nylon material
- Designed for high durability with 50,000 operating cycles
- Corrosion-resistant zinc-plated steel bridge
Product Highlights
This toggle switch is ideal for general-purpose applications, ensuring reliable performance in indoor dry environments.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358553205
Technical Specifications
-
Actuator: Toggle
-
Amperage Rating: 15 A
-
Application: General Purpose, Commercial Specification Grade and Indoor Dry Environment
-
Color: Gray
-
Contact Configuration: 2-Position
-
Dimensions: 4.18 x 1.49 x 1.83 inches
-
Environmental Conditions: -40 to 75 degrees C
-
Material: Nylon
-
Mounting: Threaded
-
Number of Poles: 1
-
Operating Cycles: 50,000 cycles
-
Power Rating: 4155 W
-
Standards/Approvals: RoHS Compliant, CSA Certified, UL 20, UL94 V-2 Flammability Rating, NEMA WD1, Federal Specification WS896
-
Terminal Type: Side Wire
-
Voltage Rating: 120 to 277 VAC
