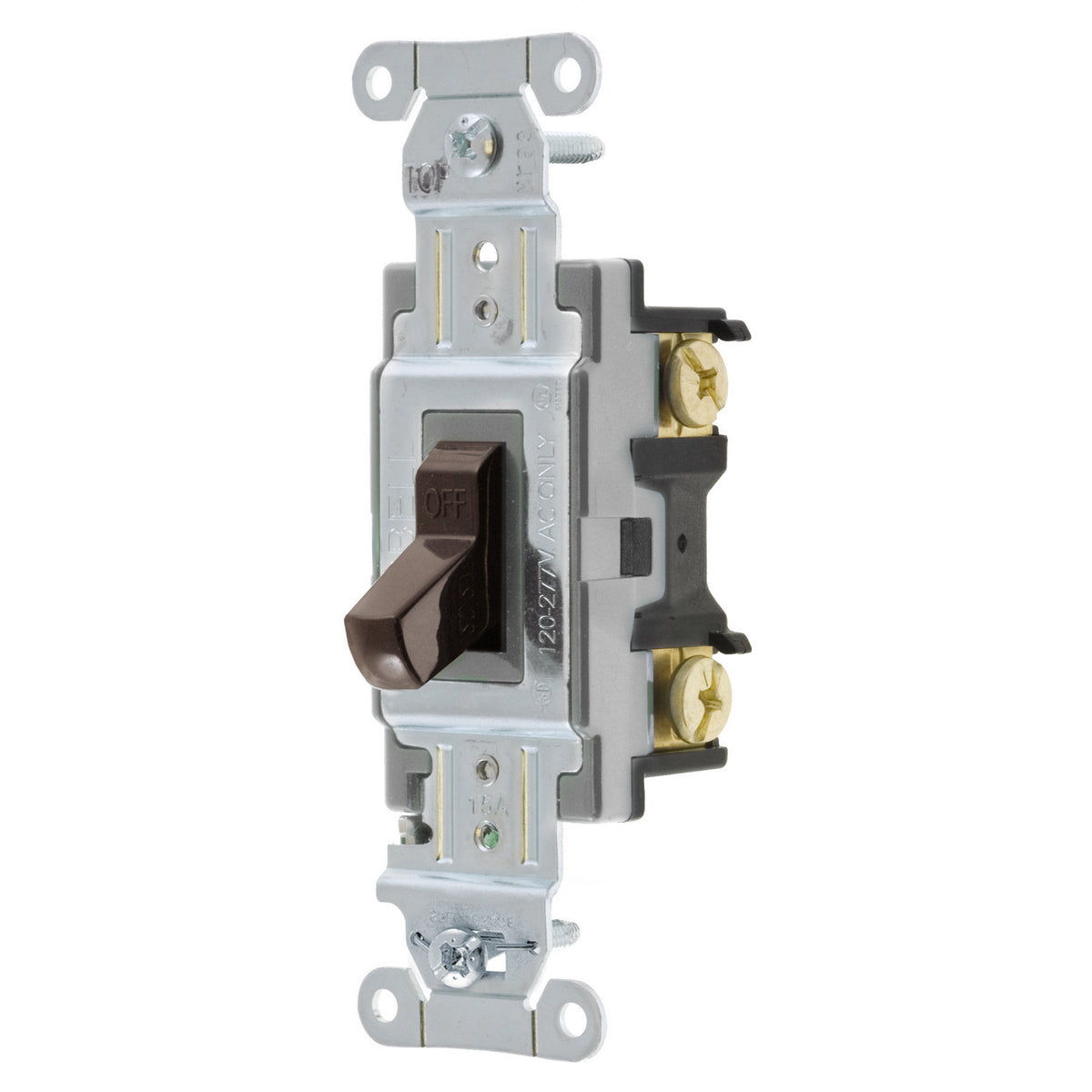

Hubbell CS115 General Purpose Standard Toggle Switch 15A 120 to 277 VAC

Product Description

The Hubbell CS115 is a general purpose toggle switch designed for versatile electrical applications. It supports a voltage range of 120 to 277 VAC and handles up to 15 amperes of current. This switch is made from durable nylon and features a brown toggle actuator.

• Operating cycles: 50000 cycles
• Environmental rating: -40 to 75 degrees Celsius
• Power rating: 4155 watts

Product Highlights

This toggle switch is ideal for commercial specifications and works best in indoor dry environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: CS115

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 120 to 277 VAC
• Power Rating: 4155 W
• Type: General Purpose Standard
• Actuator: Toggle
• Number of Poles: 1
• Contact Configuration: 2-Position
• Material: Nylon
• Mounting: Threaded
• Terminal Type: Side Wire
• Operating Cycles: 50000 cycles
• Environmental Conditions: -40 to 75 degrees Celsius
• Standards/Approvals: RoHS Compliant, CSA Certified, UL94 V-2 Flammability Rating, UL 20, Federal Specification WS896, NEMA WD1
