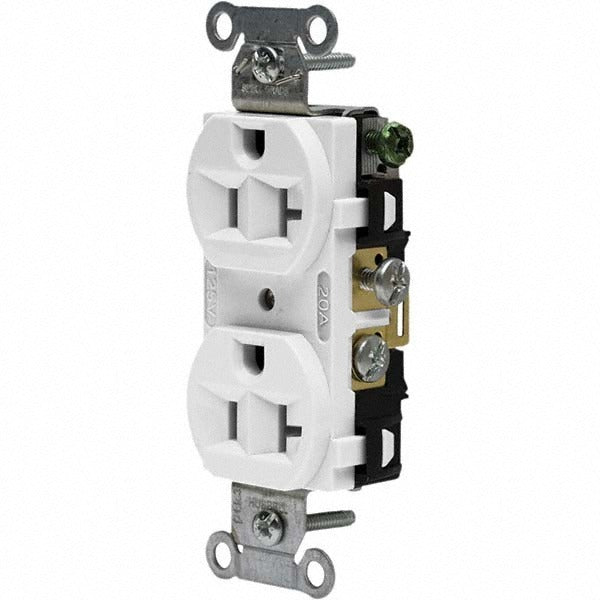

Hubbell CRF20WHI Duplex Receptacle 20A Nema 5-20R White

Product Description

The HUBBELL WIRING DEVICE-KELLEMS CRF20WHI is a straight blade duplex receptacle rated at 20 amps and 125 volts, configured to NEMA 5-20R. Built for commercial-grade service, it features a self-grounding design that simplifies installation and supports code-compliant grounding without a separate grounding jumper. The nylon body provides durability in high-use commercial environments. Back and side wiring options accommodate a range of rough-in conditions. Flush-mount configuration fits standard single-gang outlet boxes. Licensed electricians install this receptacle in commercial and light industrial applications where 20-amp circuit capacity is required.

The CRF20WHI is suited for commercial office spaces, retail environments, schools, healthcare facilities, and other locations requiring 20-amp, 125-volt duplex outlets. Its NEMA 5-20R configuration accepts both 15-amp and 20-amp plugs, making it appropriate for general-purpose circuits as well as circuits serving equipment with higher draw requirements. The white finish integrates with standard commercial wall plates. Single-phase, 2-pole, 3-wire construction aligns with typical branch circuit wiring in commercial buildings.

Key Features

• NEMA 5-20R configuration accepts 15-amp and 20-amp straight blade plugs
• Self-grounding design eliminates need for a separate grounding clip or jumper
• Back and side wiring options for flexible installation in varied box configurations
• Commercial-grade nylon body for durability in high-traffic locations
• Flush-mount profile fits standard single-gang outlet boxes
• CSA Certified and UL Listed for commercial installation compliance

Compatibility

Designed as a commercial-grade replacement duplex receptacle for standard single-gang flush-mount outlet boxes wired on 20-amp, 125-volt branch circuits per NEMA 5-20R configuration.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the branch circuit at the panel and verify absence of voltage with a meter before beginning work. Back and side wiring terminals are available; use the appropriate wire gauge for a 20-amp circuit as required by NEC. Confirm the self-grounding tab makes full contact with the mounting yoke and metal box to ensure a proper ground path.
