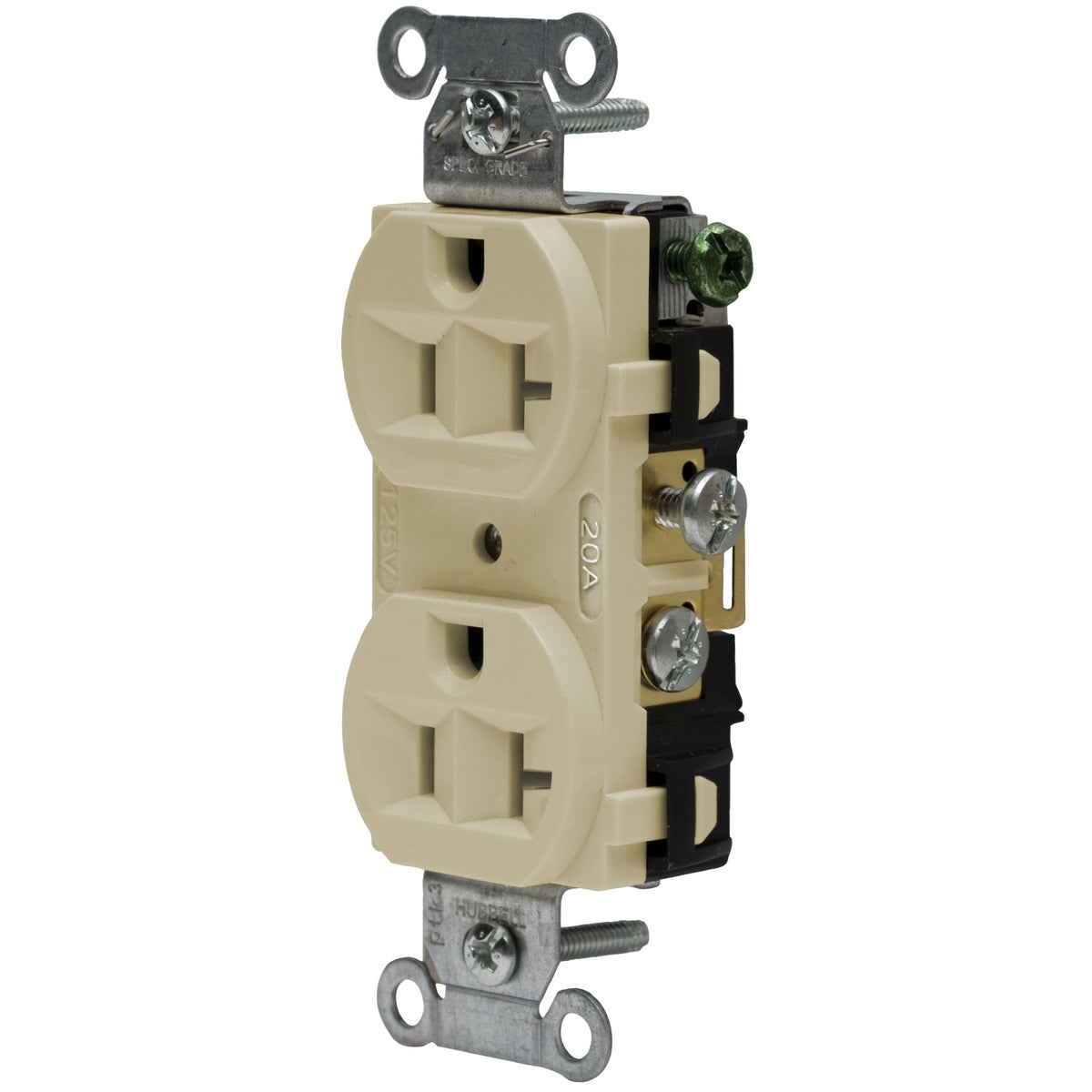

HUBBELL CRF20I TERMINALS
HUBBELL CRF20I TERMINALS

Hubbell CRF20I DPLX RCPT-20A125V

HUBBELL
Brand: HUBBELL
SKU: CRF20I
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Hubbell CRF20I is a straight blade receptacle designed for commercial and specification grade applications. It operates at 125 VAC with a maximum current of 20 A. This device features a traditional screw mount design with duplex grounding capabilities, suitable for various environments including washdown areas and indoor spaces.

  • Easy access split circuit tab for simple installation
  • Commercial/Specification grade for reliable performance
  • Rated for -40 to 75 degrees Celsius

Product Highlights

Designed for safety and ease of use, this receptacle supports multiple wire configurations and robust installation features.

Product Information

Standard Information

  • Manufacturer: Hubbell
  • UPC: 78358510788
Technical Specifications
Amperage Rating
20 A
Voltage Rating
125 VAC
Horsepower
1 hp
Color
Ivory
Application
Washdown areas, transit centers, amusement parks
Material
Nylon
NEMA Rating
5-20R
Number of Poles
2
Number of Wires
3
Dimensions
1.32 x 1.06 x 3.28 inches
Temperature Rating
-40 to 75 degrees Celsius
Standards/Approvals
RoHS Compliant, CSA, UL 498
Terminal Type
Side Wired
Grade
Commercial/Specification
