Product Description

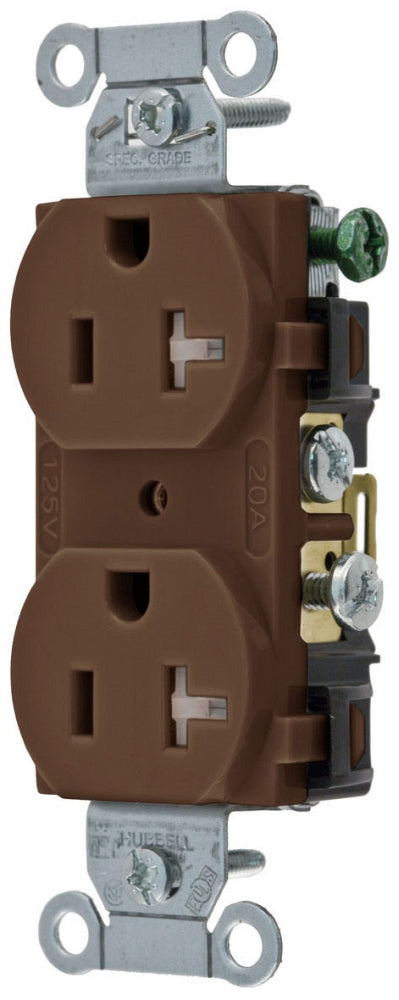

The Hubbell CR20TR is a 1-Phase Duplex Self-Grounding Standard Tamper Resistant Traditional Screw Mount Straight Blade Receptacle. This product operates at 125 VAC with an amperage rating of 20 A. It is designed for commercial applications and complies with the National Electrical Code. The receptacle features a tamper-resistant shutter for added safety.
- Meets National Electric Code standards
- Constructed from durable nylon material
- Rated for -40 to 75 degrees Celsius
Product Highlights
This receptacle is ideal for various electrical applications in commercial settings. The design ensures reliable performance while providing safety features that prevent unauthorized access.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358514425
Technical Specifications
-
Amperage Rating: 20 A
-
Color: Brown
-
Dimensions: 1.32 x 1.14 x 3.28 inches
-
Grade: Commercial/Specification
-
Horsepower: 1 hp
-
Material: Nylon
-
NEMA Rating: 5-20R
-
Number of Poles: 2
-
Number of Wires: 3
-
Standards/Approvals: RoHS Compliant, UL 498 File No. E2186, CSA C22.2 No. 42 File 285, UL 94-V-2 Flammability Rating, NEMA WD1/WD5/WD6
-
Temperature Rating: -40 to 75 degrees Celsius
-
Terminal Type: Side Wired
-
Type: 1-Phase Duplex Self-Grounding Standard Tamper Resistant Traditional Screw Mount
-
Voltage Rating: 125 VAC
