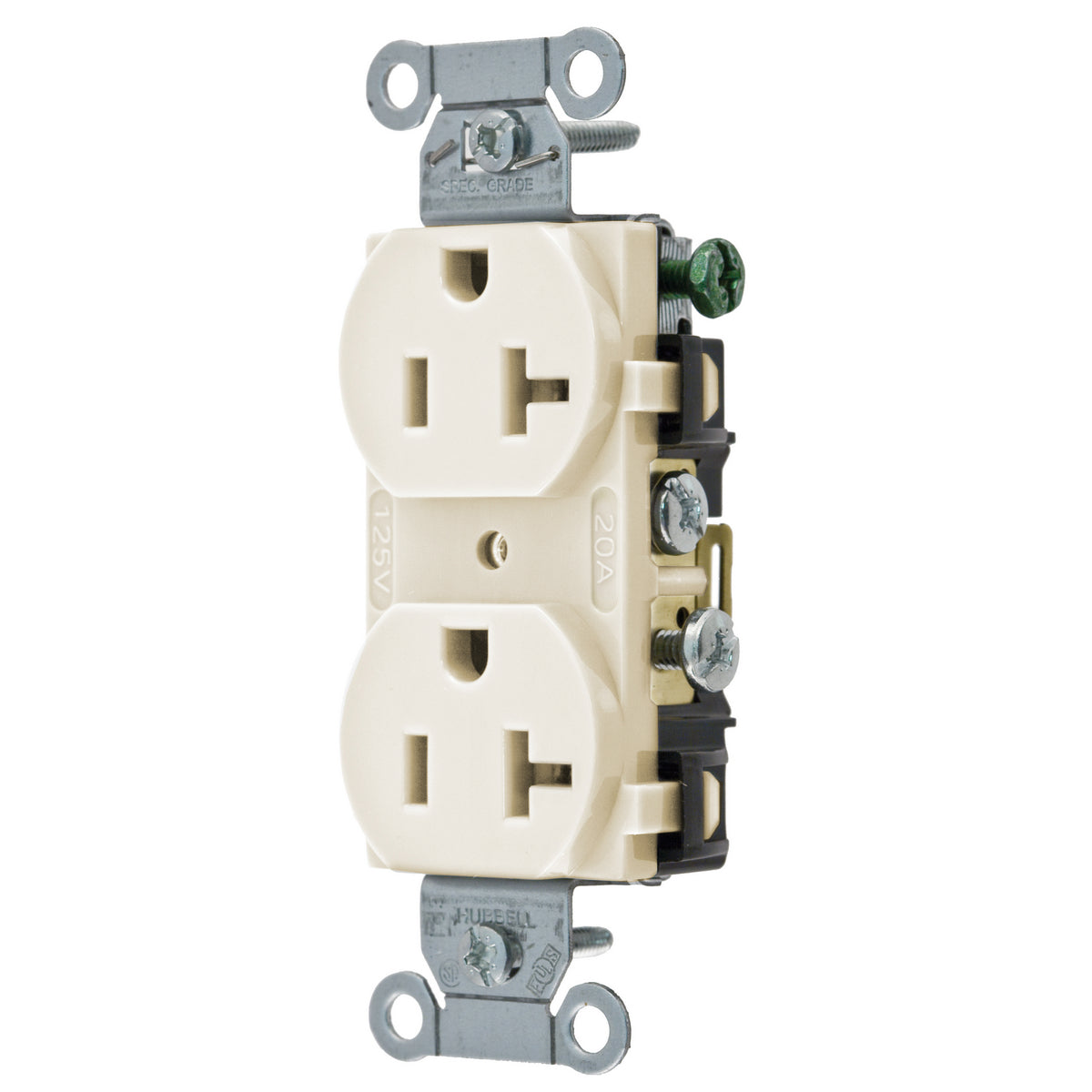

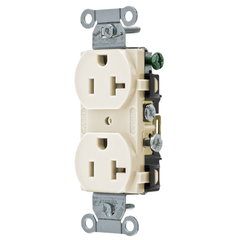

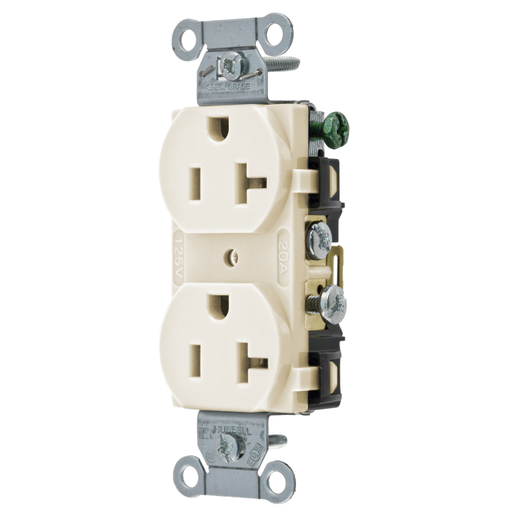

Hubbell CR20LA Light Almond 20 Amp 125 Volt NEMA 5-20R Duplex Receptacle

Product Description

The Hubbell Wiring Device-Kellems CR20LA is a light almond straight blade duplex receptacle designed for commercial applications. This receptacle supports a maximum current of twenty amps at one hundred twenty-five volts. It features two-pole, three-wire grounding for reliable safety and compliance with industry standards.

• Standard NEMA 5-20R configuration
• Constructed from durable nylon material
• Suitable for back and side wired connections

Product Highlights

This receptacle is built to withstand environmental conditions, including a minimum dielectric strength of two thousand volts. It meets commercial specification grades and is UL listed.

Product Information

Standard Information

• Amperage: 20 Amp
• Voltage: 125 Volt

Technical Specifications

• Type: Traditional, Standard Size
• Material: Nylon
• Conductor Size: 14-12 AWG
• NEMA: 5-20R
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• Operating Temperature: -40 degrees C
• Weight: 0.15 lb
• Height: 3.28 Inch
• Length: 1.32 Inch
• Width: 0.83 Inch
• Country of Origin: China
