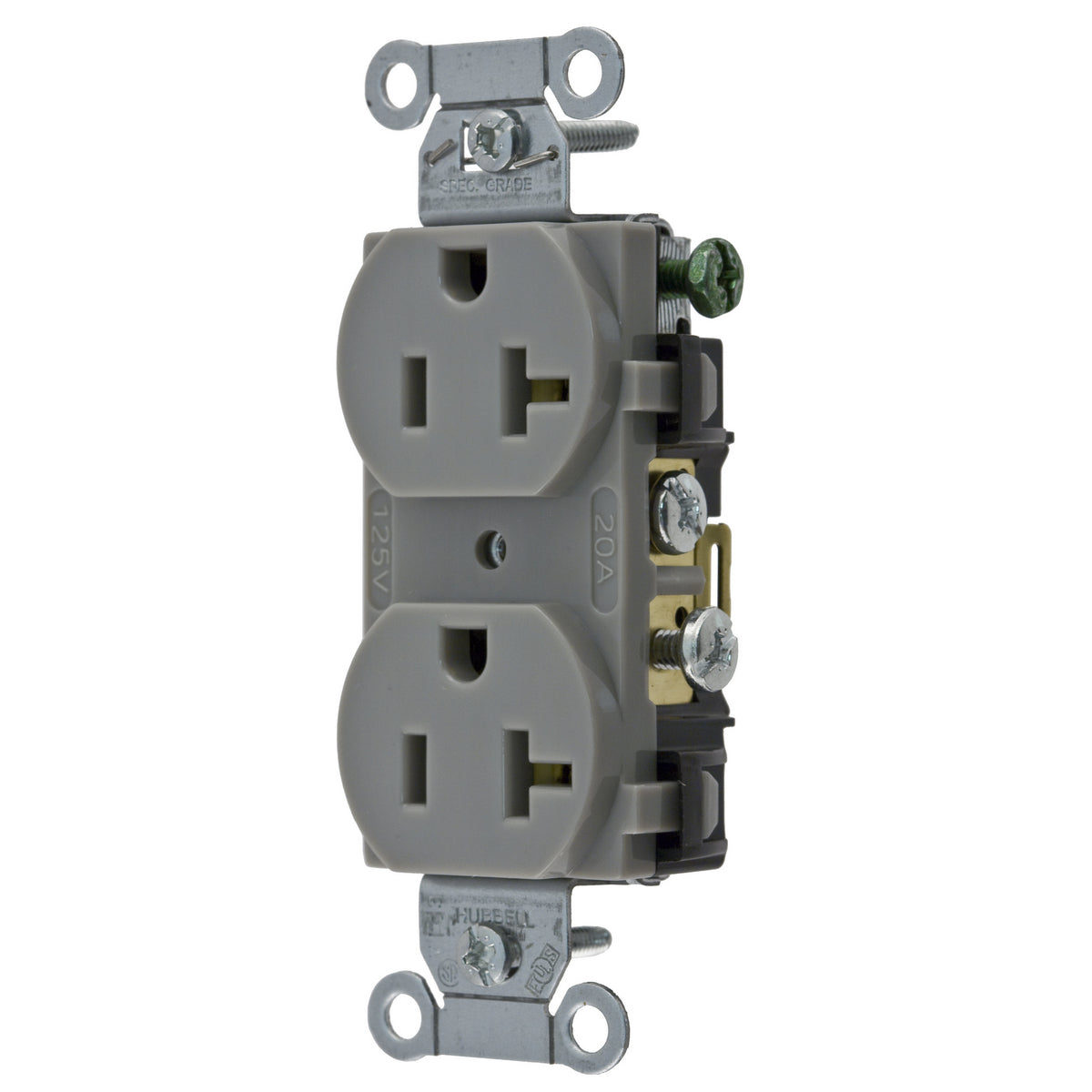

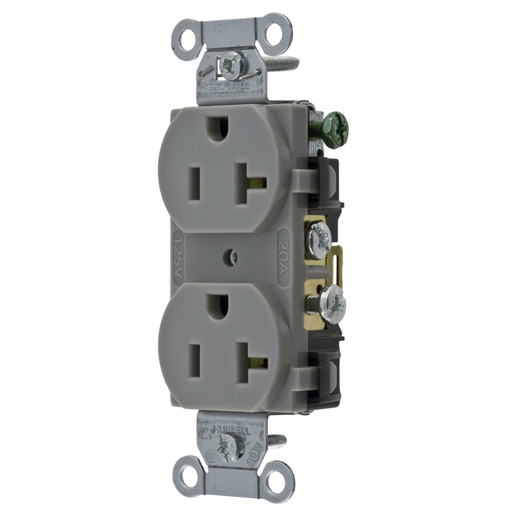

Hubbell CR20GRY Gray 20A 125V Duplex Receptacle

Product Description

The Hubbell CR20-GRY is a gray duplex receptacle designed for commercial applications. It is rated for 20 amps and 125 volts, making it suitable for various electrical devices. This receptacle features a 2-pole, 3-wire grounding configuration with a traditional style.

• Standard sized NEMA 5-20R configuration
• Back and side wired connections for versatile installation
• Meets commercial specification standards

Product Highlights

This receptacle provides a reliable and sturdy connection for electrical devices. It is designed for easy access and installation, ensuring optimal performance in commercial environments.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Color: Gray

Technical Specifications

• Amperage: 20 Amp
• Voltage: 125 Volt
• Weight: 0.2 lb

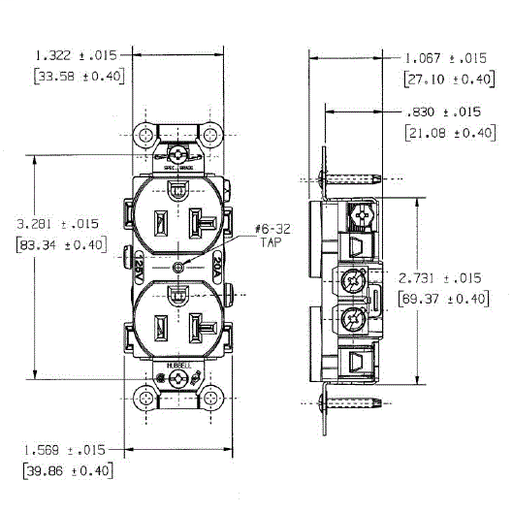

• Width: 0.83 in
• Height: 3.28 in
• Length: 1.32 in
• Face Material: Nylon
• Mounting Type: Screw
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• Dielectric Strength: Withstands 2,000V minimum
• Standards: C22.2, CSA, Fed. Spec. W-C-596, NEMA WD-6, UL Listed
