Hubbell CL501 BURNDY DIRECT BURIAL 14-4AWG CU LUG W/ 10 STUD HOLE

Product Description

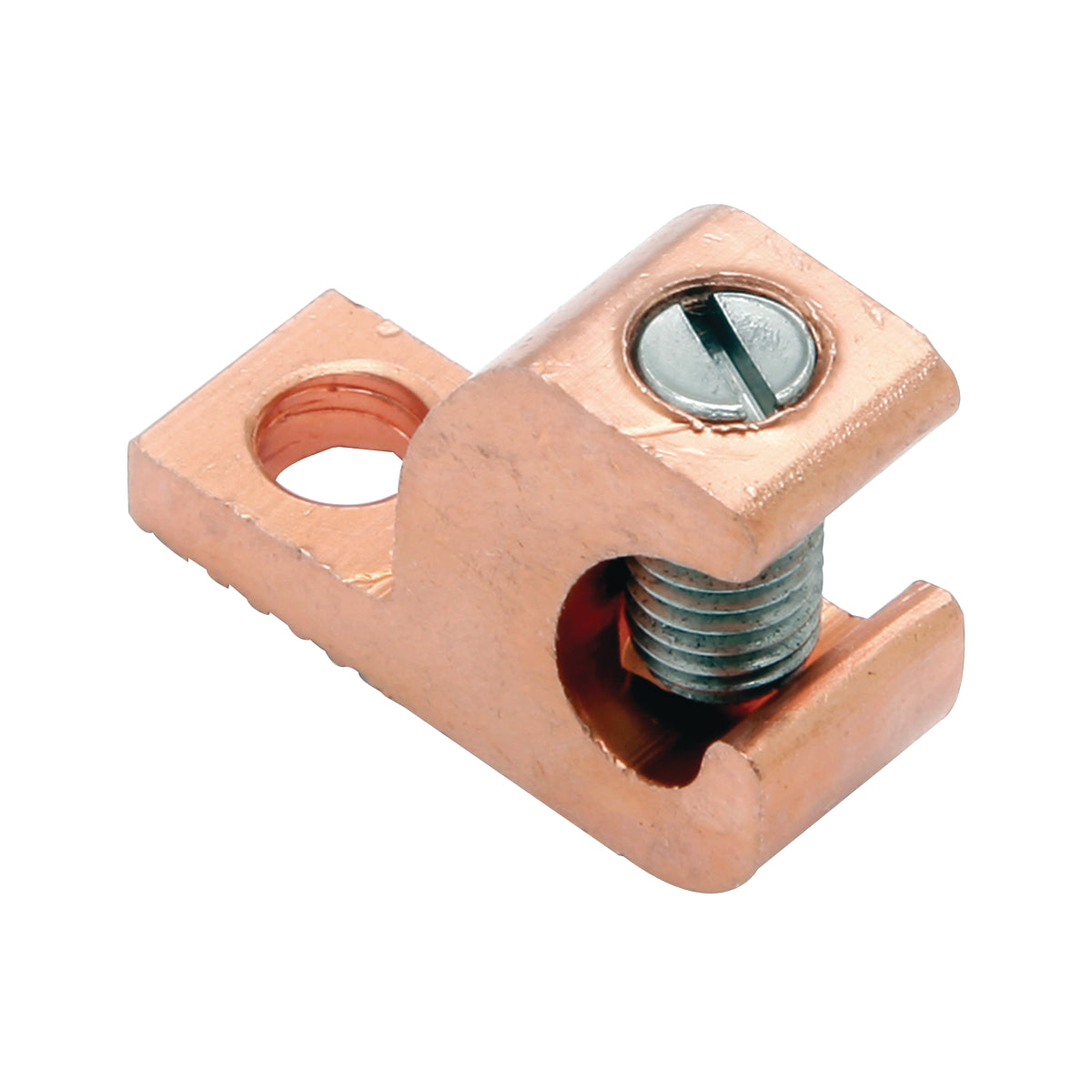

The Hubbell CL501 is a BURNDY QIKLUG Lay-In Lug designed for direct burial applications in concrete or earth. This lug accommodates copper conductors ranging from fourteen to four AWG. With its open-faced design, it simplifies the installation process without the need for cutting or breaking the conductor. The lug features a #10 stud and one bolt hole, allowing for secure connections.

• Designed for ease of use with directly buried applications
• Open-faced design for quick lay-in of conductors
• Constructed from electrolytic copper for reliability

Product Highlights

This product is ideal for electricians needing efficient and reliable terminal lugs for projects involving direct burial. Its robust construction ensures long-lasting performance in various environmental conditions.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: CL501

Technical Specifications

• Application: For direct burial applications in concrete or earth
• Conductor Size: 14 to 4 AWG
• Conductor Type: Copper
• Dimensions: 1.13 in L x 0.85 in H
• Finish: Electro-Zinc Plated
• Material: Electrolytic Copper
• Number of Bolt Holes: 1
• Specifications: Slotted Screw, 0.22 in Hole
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 467, cULUS Listed, CSA Certified, Buy American Act Compliant
• Stud Size: #10
• Tongue Size: 0.38 in W x 0.15 in THK
• Tongue Type: Straight
• Type: Open Faced
