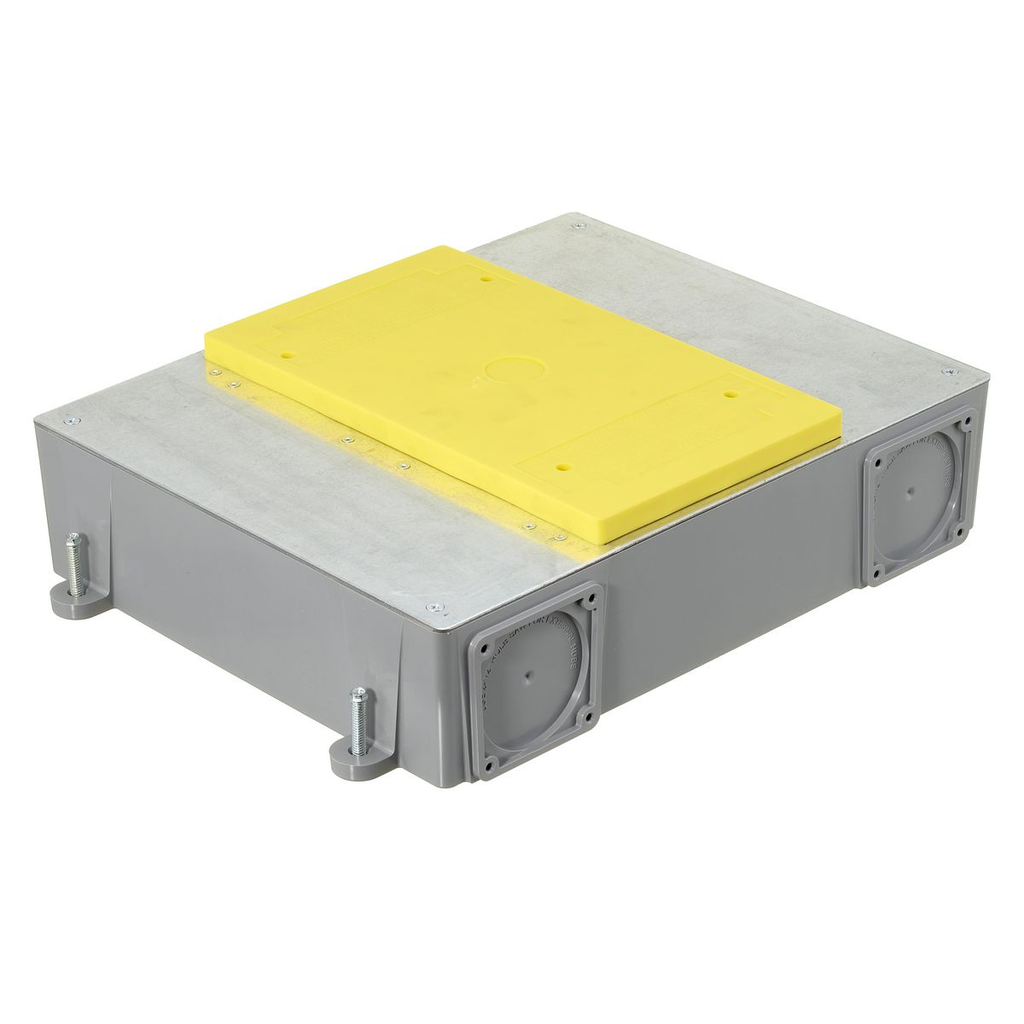

Hubbell CFB4G30PFBE Recessed Concrete Floorbox 4-Gang

Product Description

The HUBBELL CFB4G30PFBE is a recessed 4-Gang concrete floorbox with a rectangular cover, designed for use in concrete floors. It features 3.75" deep wiring chambers for large AV modules and feed-thru capacity. The corrosion-resistant PVC base includes grounding terminals and molded drill points. The floorbox has a 3.17" minimum depth of pour.

• For Use In Concrete Floors
• 3.75" Deep Wiring Chambers
• External High Capacity Feed-Thru Hubs Sold Separately

Product Highlights

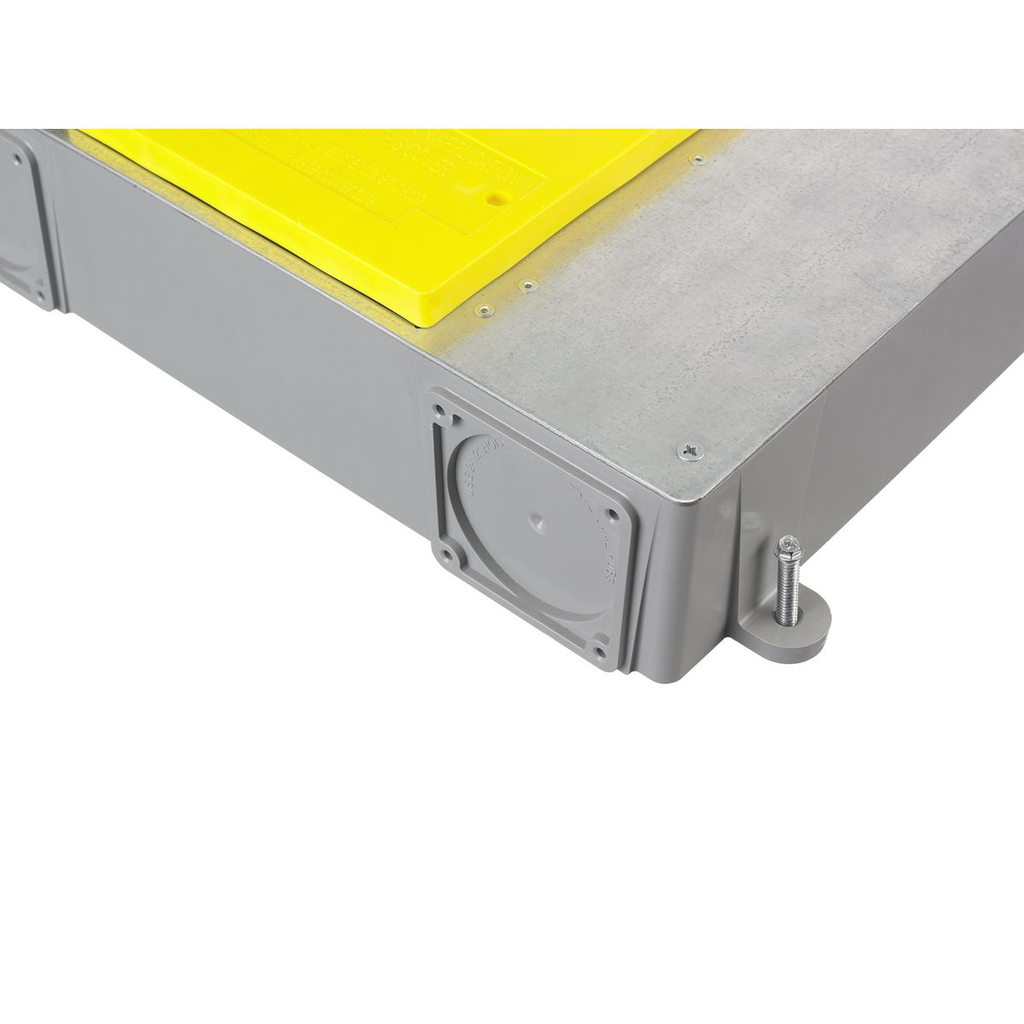

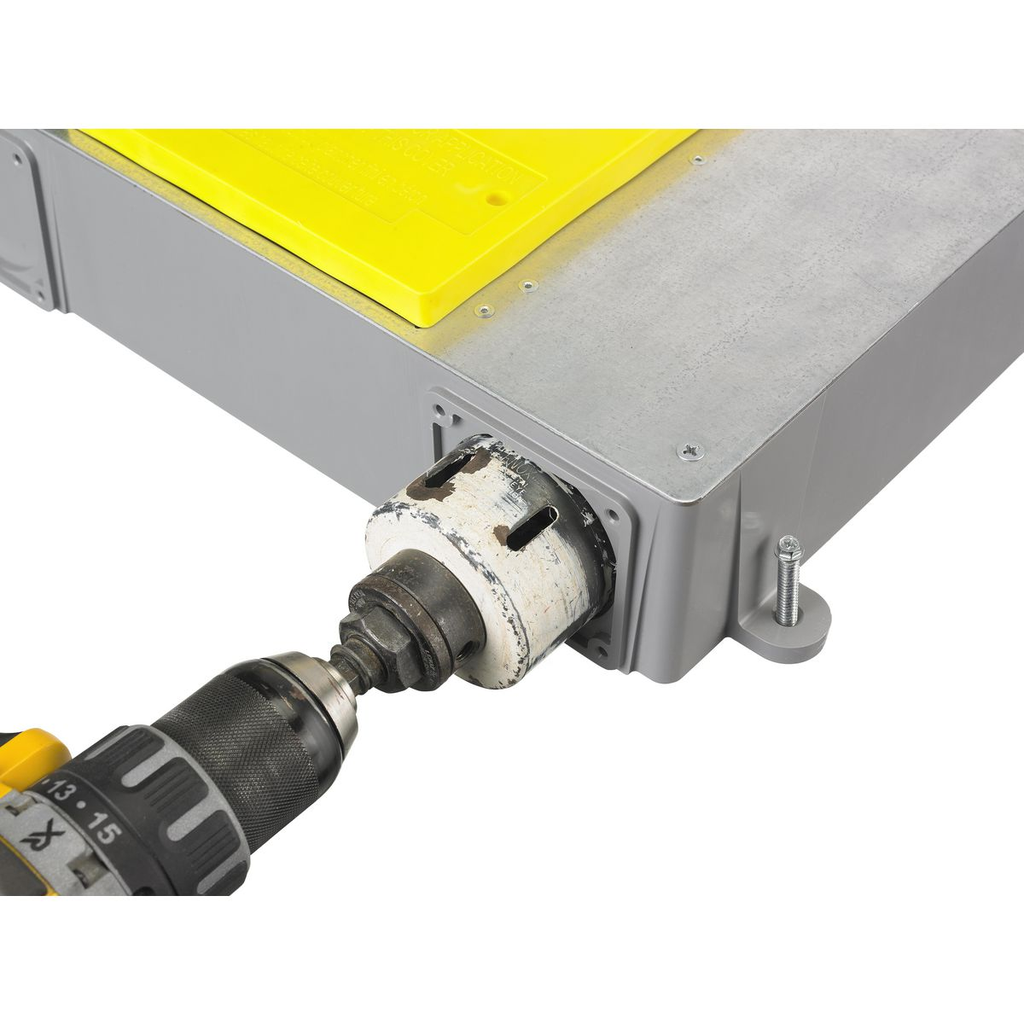

Corrosion-resistant recessed 4-gang rectangular cover PVC base floorbox with grounding terminals and molded drill points.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: CFB4G30PFBE

Technical Specifications

• Catalog Number: CFB4G30PFBE
• Application: For Use in Concrete Floors
• Color: Gray/Metallic
• Construction: Fabricated
• Knockouts: 0
• Material: PVC Base Box with Pregalvanzied Top
• Mounting Method: Screw Mount Device Mounting Plates
• Mounting Type: Field Installed
• Number of Gang(s): 4-Gang
• Series: Concrete Floorboxes
• Size: 15.70 in x 11.20 in x 3.17 in
• Style: 4-Gang
• Type: Recessed
• UPC: 783585695433
• Dimensions: 15.70 in x 11.20 in x 3.17 in
• Height: 3.17 in
• Length: 15.7 in
• Width: 11.2 in
• Cable Entry: Through Cover
• Brand: Hubbell Premise Wiring
