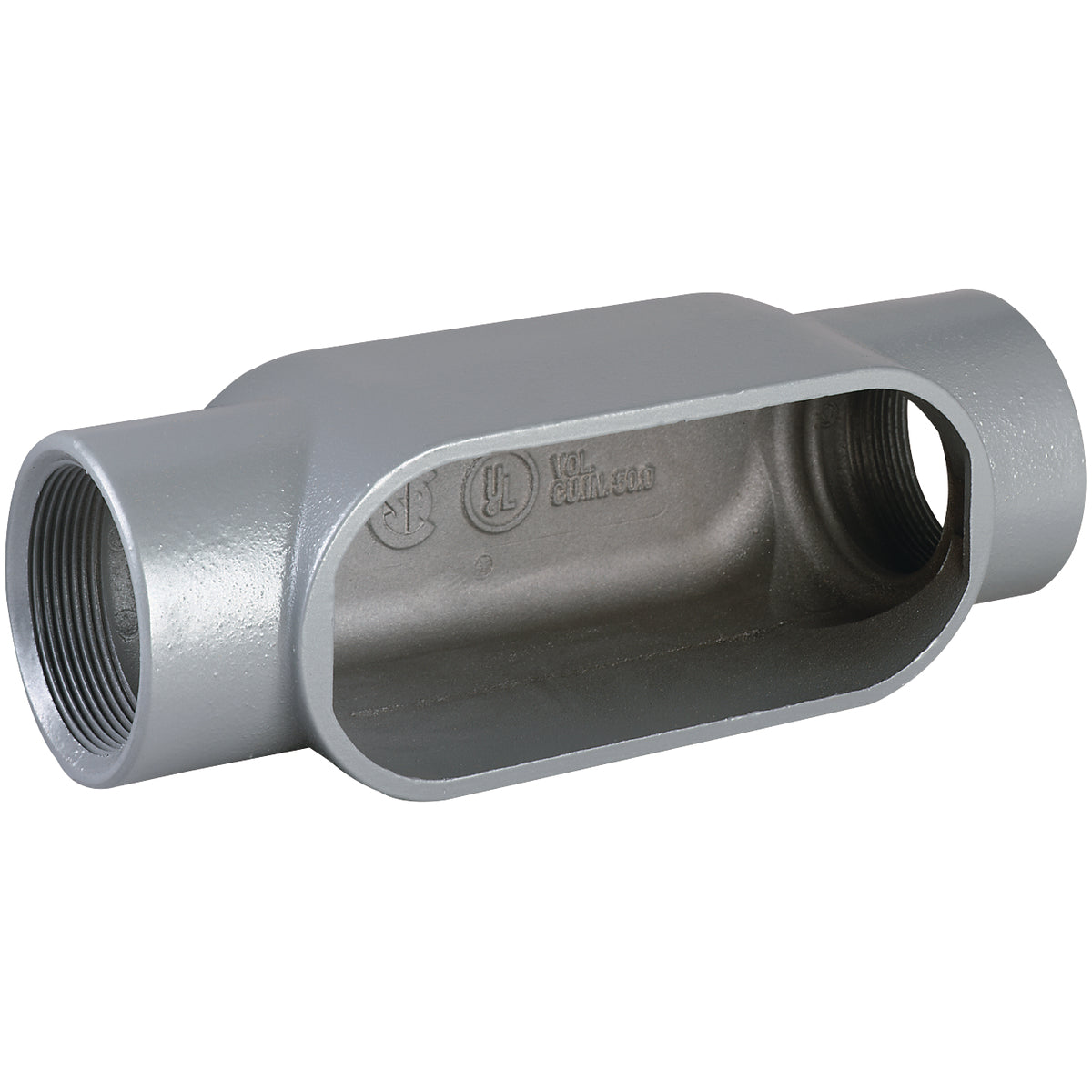

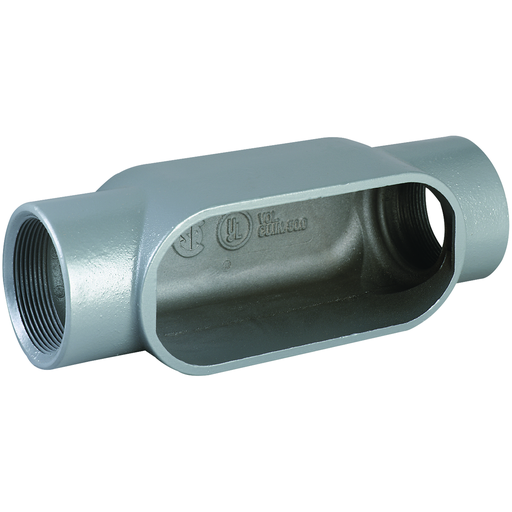

Hubbell C77 Conduit Body Type-C 2-1/2 Inch Gray Iron

Product Description

The Hubbell C77 is a Type-C conduit body with a hub size of 2-1/2 inches. This product is built from durable iron and provides easy access to conductors for maintenance and splicing.

• Constructed from iron for durability
• NEMA 3 rated for wet locations
• Tri-coat finish enhancing corrosion resistance

Product Highlights

The Hubbell C77 conduit body features a flat back design and smooth integral wire bushings to protect cables. It is suitable for use with threaded rigid conduit, steel, or aluminum, facilitating versatile installation options.

Product Information

Standard Information

• Type: Type-C
• Color: Gray

Technical Specifications

• Application: Access to conductors for pulling, splicing, and maintenance
• Hub Size: 2-1/2 inch
• Material: Iron
• Dimensions: 12-3/4 inches L x 4-3/8 inches W x 4-3/8 inches H
• Finish: Tri-Coated
• Enclosure: NEMA 3
• Standards/Approvals: UL, CSA approved
