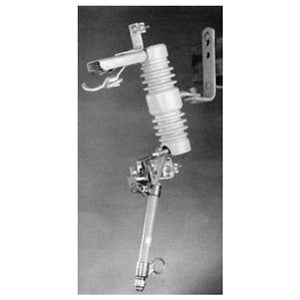

Hubbell C710112PB Overhead Cutout Porcelain Insulator 15 kV 100A

Product Description

The Hubbell C710112PB is an overhead cutout porcelain insulator designed for effective use in electric utility applications. This insulator can operate at fifteen thousand volts, equipped with a one hundred amp fuse holder. It features a parallel-groove connector and is supplied with a NEMA B crossarm bracket for secure mounting.

• Operating voltage: 15 kV
• Amperage rating: 100 A
• Leakage to ground: 220 mm

Product Highlights

This product serves as a crucial component for sectionalizing devices and distribution systems. Its robust porcelain construction withstands outdoor conditions, ensuring long-term reliability.

Product Information

Standard Information

• Manufacturer: Hubbell Power Systems
• Part Number: C710112PB

Technical Specifications

• Type: Type C Standard
• BIL Rating: 110 kV
• Application: For sectionalizing device and distribution system
• Material: Porcelain
• Temperature Rating: 38 degrees Celsius
• Standards/Approvals: ANSI Certified, RUS Listed, IEEE Certified
• Terminal Type: Parallel Groove Clamp
• Terminal Wire Range: 6 to 4/0 AWG, 250 kcmil
