HUBBELL Hubbell C22D Cast Bronze Ground Clamp (1-1/4 in - 2 in)
HUBBELL Hubbell C22D Cast Bronze Ground Clamp (1-1/4 in - 2 in)
HUBBELL Hubbell C22D Cast Bronze Ground Clamp (1-1/4 in - 2 in)
HUBBELL Hubbell C22D Cast Bronze Ground Clamp (1-1/4 in - 2 in)

Hubbell C22D Cast Bronze Ground Clamp (1-1/4 in - 2 in)

HUBBELL
Brand: HUBBELL
SKU: C22D
Availability: In Stock

Ships same day if ordered by 12 pm
$49.59
$49.59
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

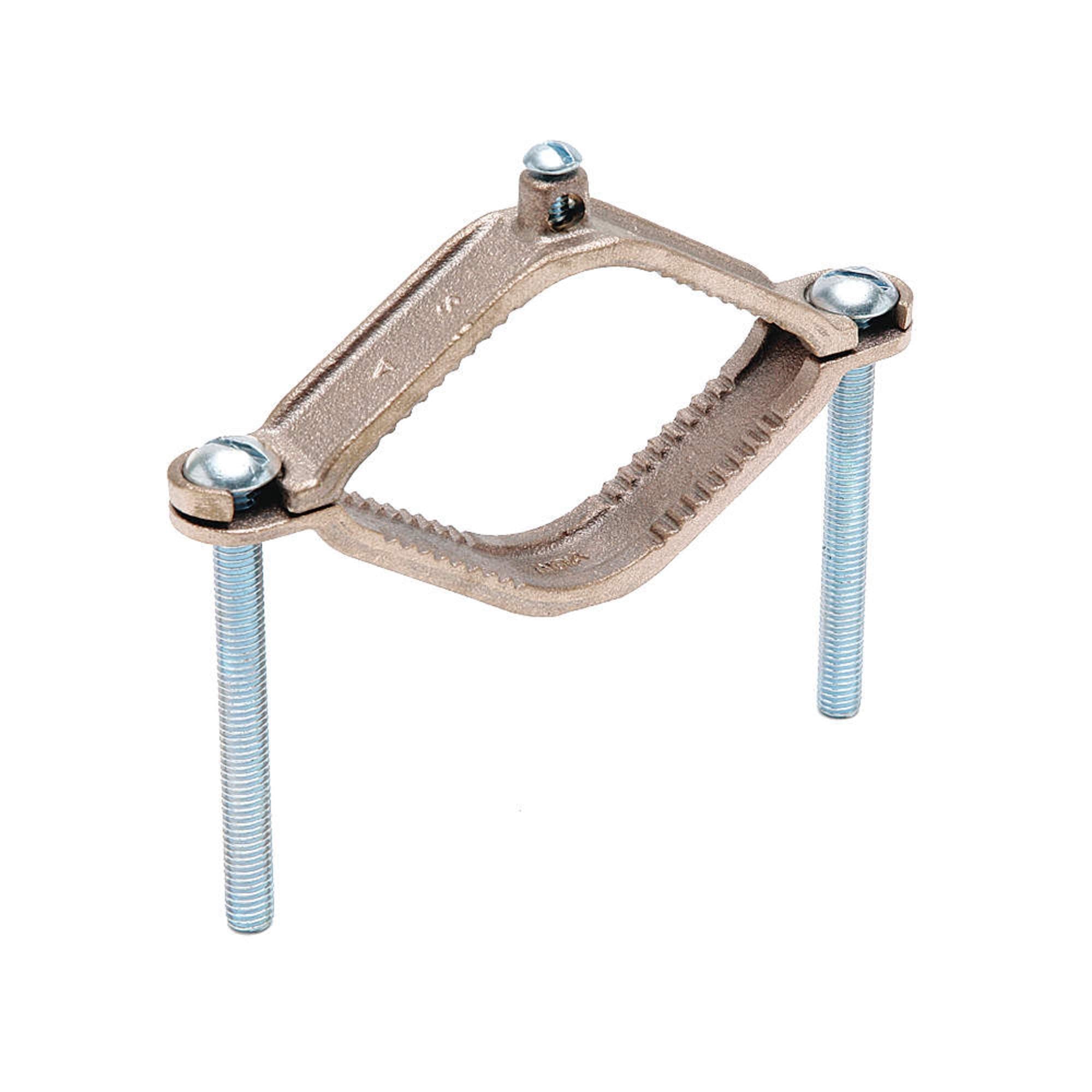

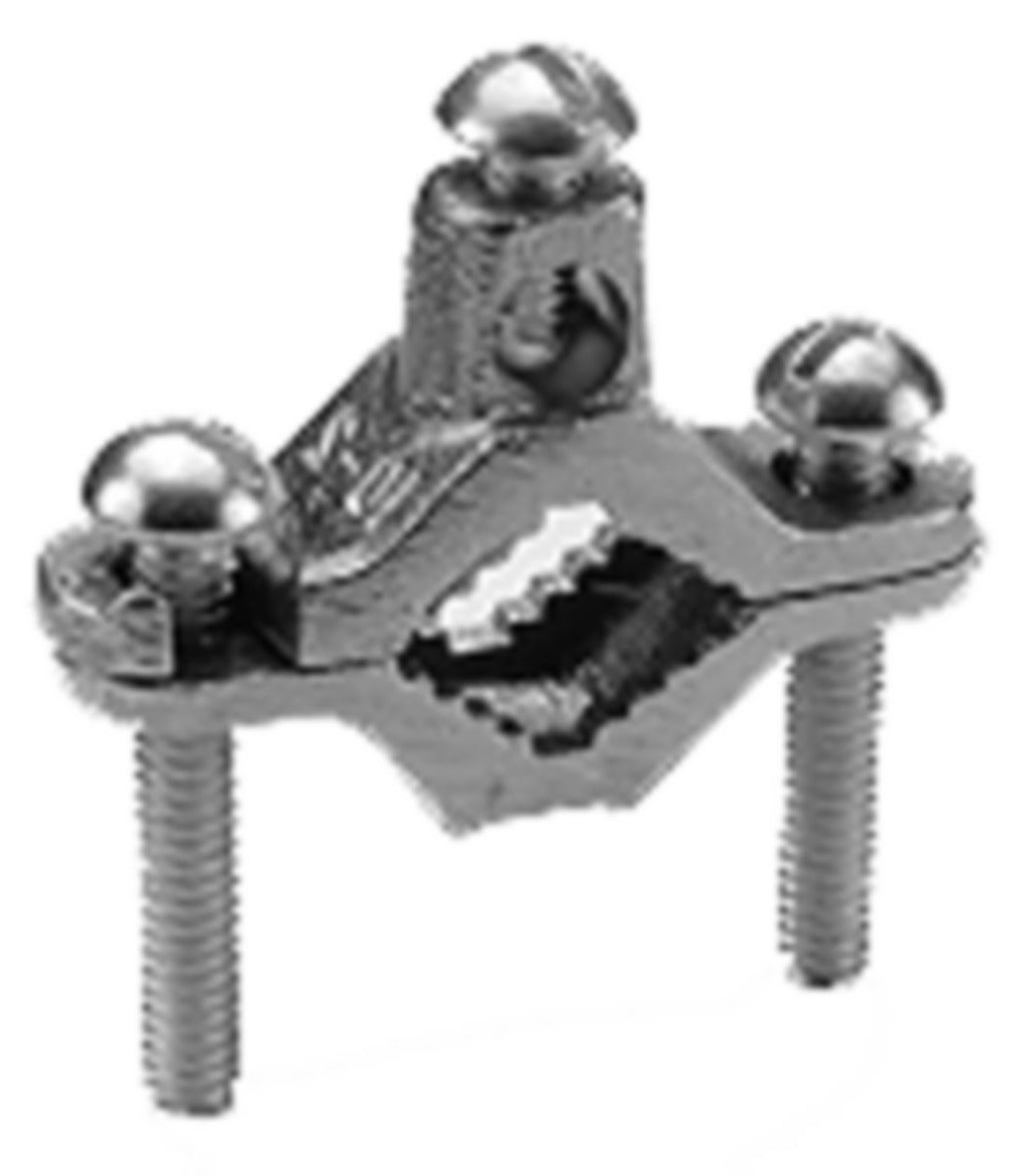

Hubbell C22D is a cast bronze ground clamp designed to bond a grounding conductor to a water pipe or copper tube. It accepts stranded copper conductors from 10 AWG to 2 AWG and fits pipe diameters from 1-1/4 in to 2 in. The clamp is supplied with silicon bronze hardware, is unplated, and is UL467 listed for direct burial in earth and concrete.

  • Accepts stranded copper conductors 10 AWG to 2 AWG for grounding connections
  • Fits water pipe or copper tube diameters 1-1/4 in to 2 in; overall dimensions 3.63 in L x 0.75 in W x 2.38 in H
  • Cast bronze body with silicon bronze hardware; UL467 listed and direct burial rated; RoHS compliant

Product Highlights

Cast bronze mechanical ground clamp C22D for 10–2 AWG to 1-1/4–2 in pipe; silicon bronze hardware; UL467 direct burial listed.

Product Information

Standard Information

  • Brand: HUBBELL
  • Manufacturer Part Number: C22D
  • Country of Origin: India
Technical Specifications
Manufacturer Part Number
C22D
Brand
Hubbell
Product Type
Mechanical ground clamp
Material
Cast bronze (bronze alloy)
Hardware Material
Silicon bronze
Application
Connect grounding conductor to water pipe or copper tube; direct burial in earth and concrete
Conductor Size
10 AWG - 2 AWG
Conductor Type
Stranded copper
Pipe Size
1-1/4 in - 2 in
Dimensions (L x W x H)
3.63 in x 0.75 in x 2.38 in
Pad Width
1.00 in
Hole Size
0.31 in
Finish / Plating
Unplated
Standards / Certifications
UL467; UL listed direct burial; RoHS compliant; CSA certified; California Proposition 65 (contains lead/lead compounds)
Weight
0.34 lb
Country of Origin
India
