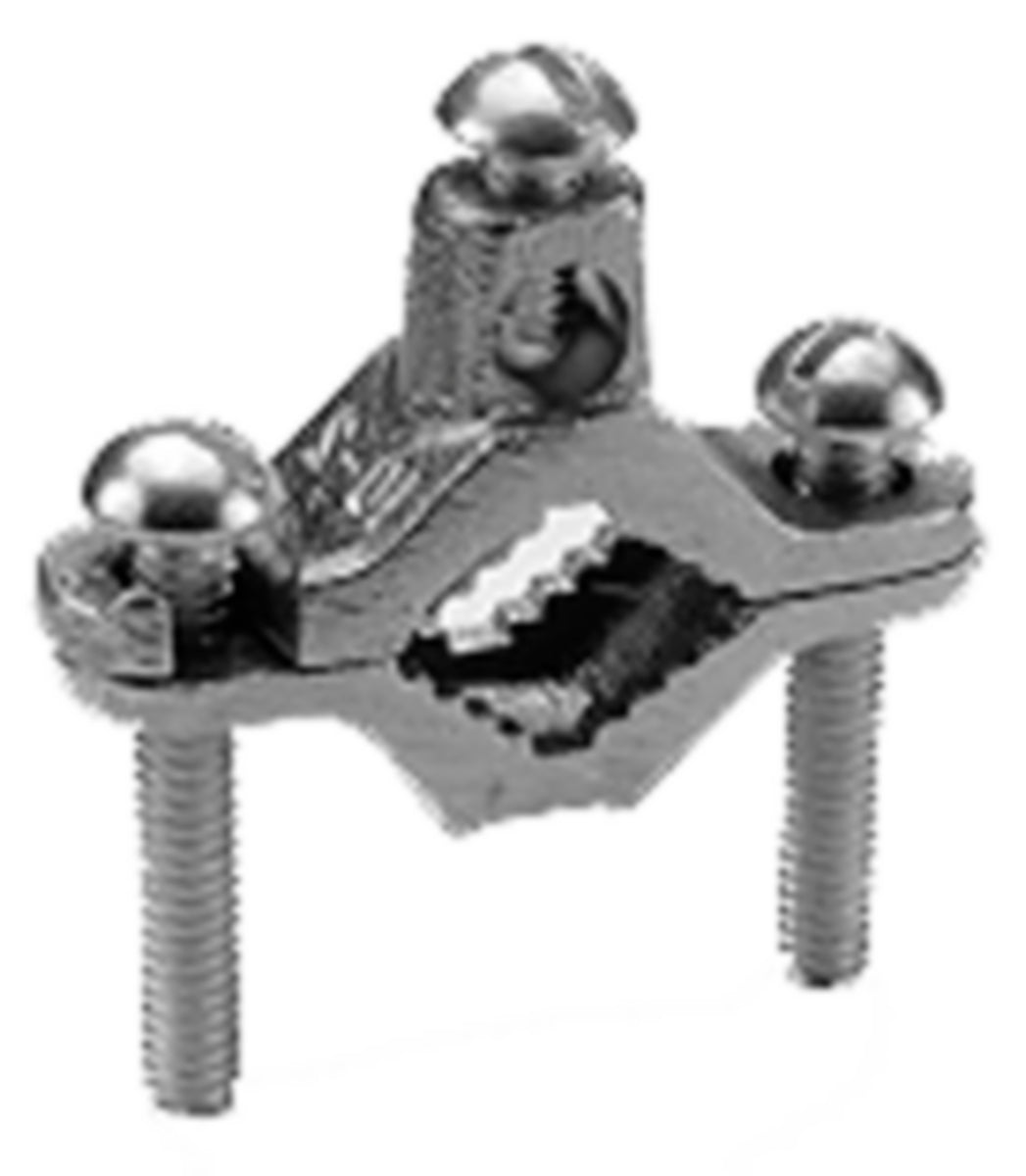

Hubbell C11N Grounding Clamp 1/2 to 1 Water Pipe to 10 to 3/0 AWG Bare CU GRD

Product Description

The Hubbell C11N is a grounding clamp designed for connecting grounding conductors to water pipes or copper tubes. This clamp is suitable for use with pipes ranging from three-eighths to one inch in diameter. It is compatible with stranded copper conductors from ten to three-aught American Wire Gauge (AWG).

• Utilizes screw installation for secure connection
• Cast bronze construction enhances durability
• Dimensions are two point two five inches long, zero point six three inches wide, and one point eight one inches high

Product Highlights

This grounding clamp is ideal for applications requiring reliable connections in electrical systems.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181014228

Technical Specifications

• Application: For bare wire, connecting grounding conductor to water pipe or copper tube
• Conductor Size: 10 to 3/0 AWG
• Conductor Type: Copper/Stranded
• Connection Type: Cable parallel to pipe
• Dimensions: 2.25 in L x 0.63 in W x 1.81 in H
• Finish: Zinc Plated
• Material: Cast Bronze
• Pipe Size: 3/8 to 1 in
• Standards/Approvals: RoHS Compliant, UL Listed, CSA Certified, PROP65 warning
