Product Description

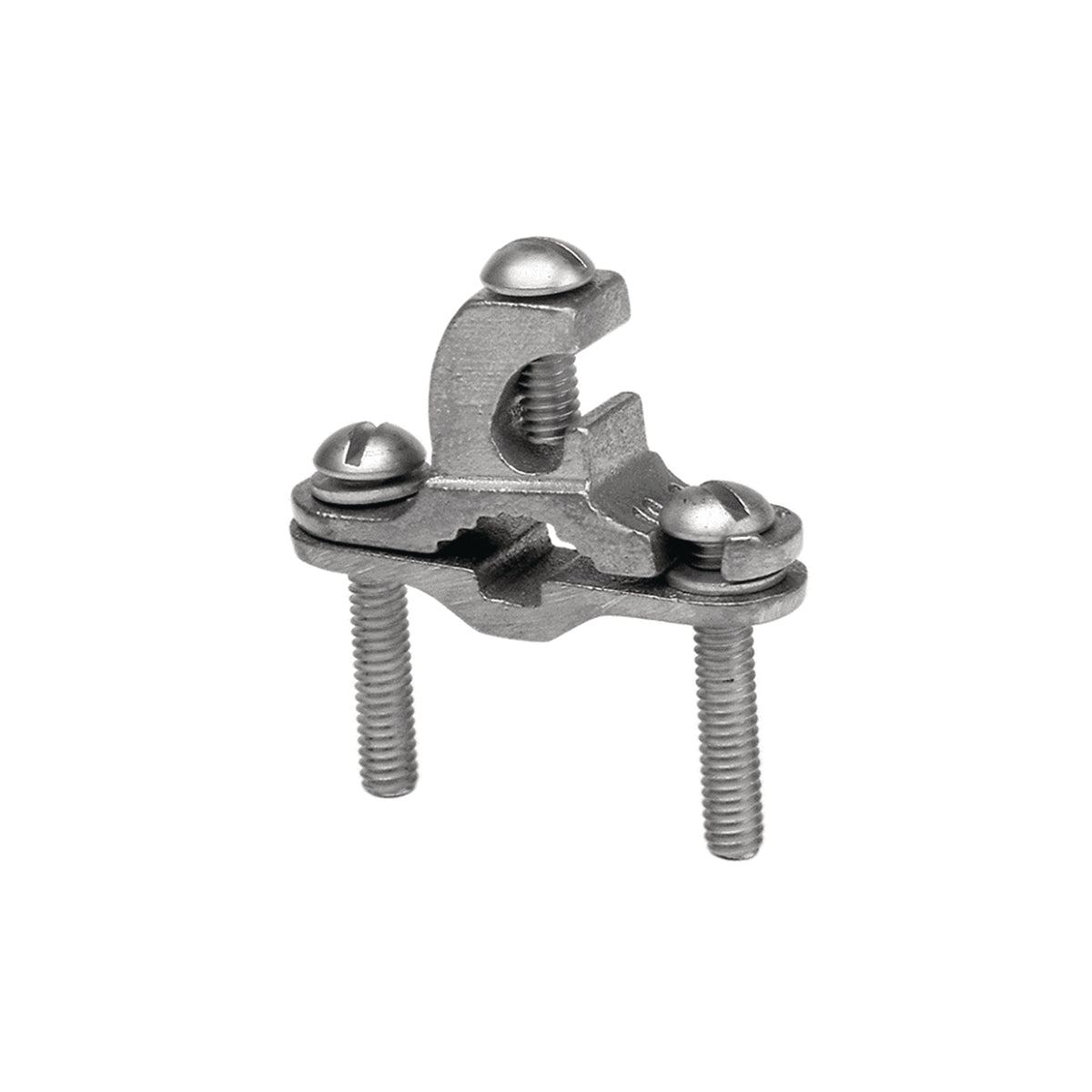

The Hubbell C11K16D is a ground clamp designed for effective grounding connections. It works with pipe sizes from half an inch to one inch and rod sizes from three-eighths of an inch to one inch. The clamp accommodates conductors rated for ten to two American Wire Gauge (AWG). This component is essential for grounding systems, providing robust and reliable connections.
- Recommended installation torque of fifty pounds.
- Open face design allows quick insertion of the tap conductor.
- Includes silicon bronze hardware for enhanced durability.
Product Highlights
This ground clamp features a cast bronze construction and a screw installation method.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78181035864
Technical Specifications
-
Application: For connecting grounding conductor to water pipe, copper tube, ground rod or rebar and direct burial
-
Conductor Size: 10 to 2 AWG
-
Conductor Type: Copper/Stranded
-
Connection Type: Conductor to Water Pipe
-
Dimensions: 2.28 in L x 0.66 in W x 1.64 in H
-
Finish: Unplated
-
Includes: Silicon Bronze Hardware
-
Material: Cast Bronze
-
Pipe Size: 1/2 to 1 in
-
Rod Size: 3/8 to 1 in
-
Standards/Approvals: RoHS Compliant, UL 467, cULus Listed, PROP65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and birth defects.
