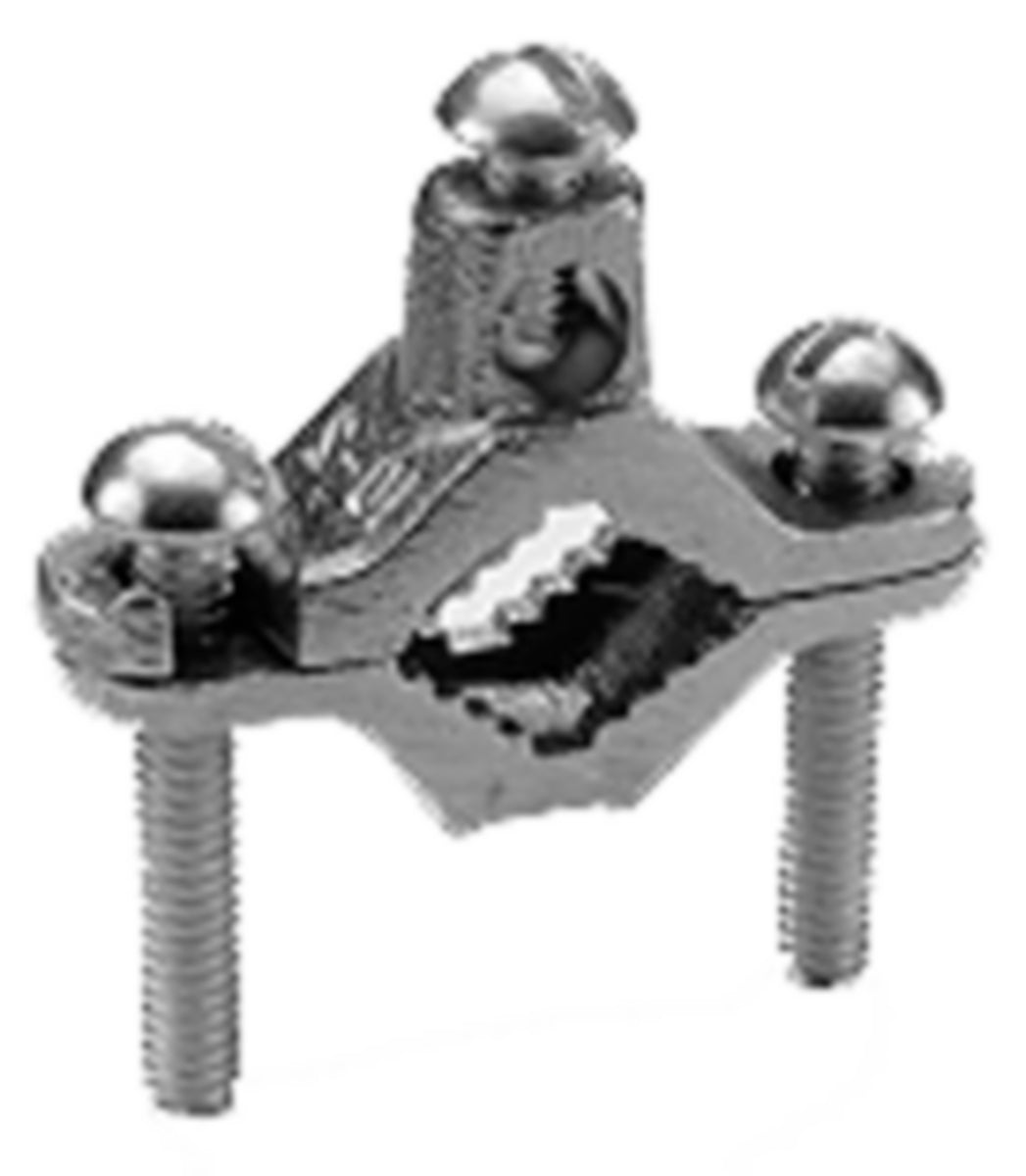

Hubbell C11D Burndy Cast Bronze Ground Clamp, Cable to Water Pipe or Copper Tube, 10 to 2 AWG, 1/2 to 1 Water Pipe

Product Description

The Hubbell C11D is a Burndy cast bronze ground clamp designed for connecting a cable to water pipes or copper tubes. This clamp accommodates conductor sizes from ten to two American Wire Gauge and fits water pipes measuring one half to one inch. It is suitable for use with stranded copper conductors and is installed via screws. This clamp is ideal for grounding applications, providing reliable connections for safety and performance.

• No armored cable required
• Includes silicon bronze hardware for durability
• Designed for direct burial in soil and concrete

Product Highlights

The C11D ground clamp is made of cast bronze and is unplated, ensuring long-lasting durability.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181014234

Technical Specifications

• Application: Connecting grounding conductor to water pipe or copper tube, direct burial in earth and concrete
• Conductor Size: 10 to 2 AWG
• Conductor Type: Stranded Copper
• Connection Type: Cable parallel to pipe
• Dimensions: 2.25 in L x 0.63 in W x 1.81 in H
• Finish: Unplated
• Includes: Silicon bronze hardware
• Manufacturer Part Number: C11D
• Material: Cast Bronze
• Pipe Size: 3/8 to 1 in
• Standards/Approvals: RoHS Compliant, UL 467, CSA Certified, PROP65 warning applies
