Product Description

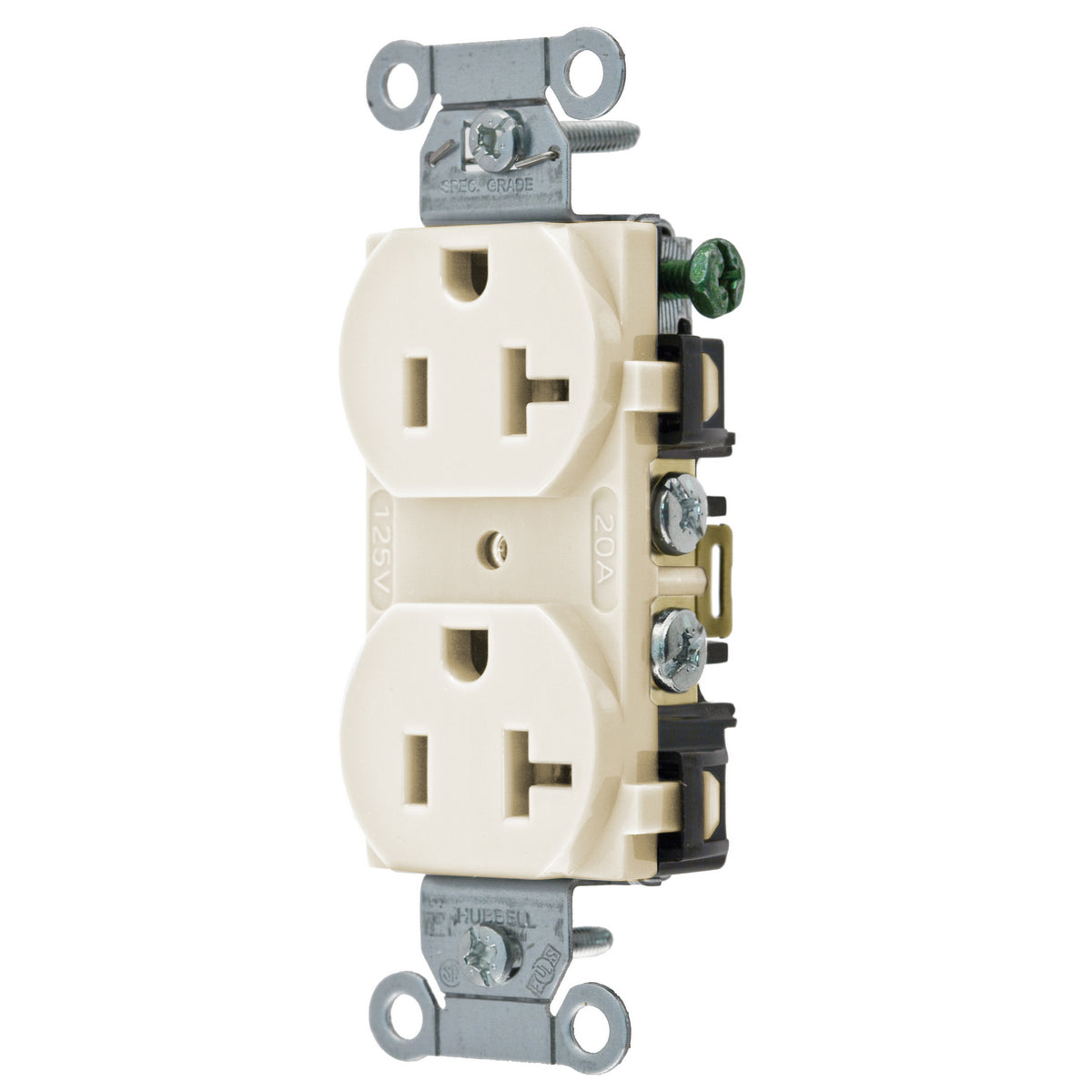

Hubbell BR20LA is a 1-phase duplex straight blade receptacle designed for commercial and industrial use. This receptacle supports a voltage of one hundred twenty-five volts and a current of twenty amps. It includes a side wired terminal and is made from nylon for enhanced durability.
- Amperage rating of twenty amps
- Temperature range from negative forty to seventy-five degrees Celsius
- 5-20R NEMA rating for versatile applications
Product Highlights
Hubbell's BR20LA is ideal for use in washdown areas, transit centers, and amusement parks.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358512757
Technical Specifications
-
Application: Washdown Areas, Transit Centers, Amusement Parks and Open Air Markets
-
Amperage Rating: 20 A
-
Color: Light Almond
-
Dimensions: 1.32 x 0.83 x 3.28 inches
-
Grade: Commercial/Industrial/Specification
-
Horsepower: 1 hp
-
Material: Nylon
-
NEMA Rating: 5-20R
-
Number of Poles: 2
-
Number of Wires: 3
-
Temperature Rating: -40 to 75 degrees Celsius
-
Terminal Type: Side Wired
-
Type: 1-Phase Duplex Standard Traditional Screw Mount
-
Voltage Rating: 125 VAC
-
Standards/Approvals: CSA C22.2 No. 42, Federal Specification WC596, NEMA WD1/WD5, UL 498
