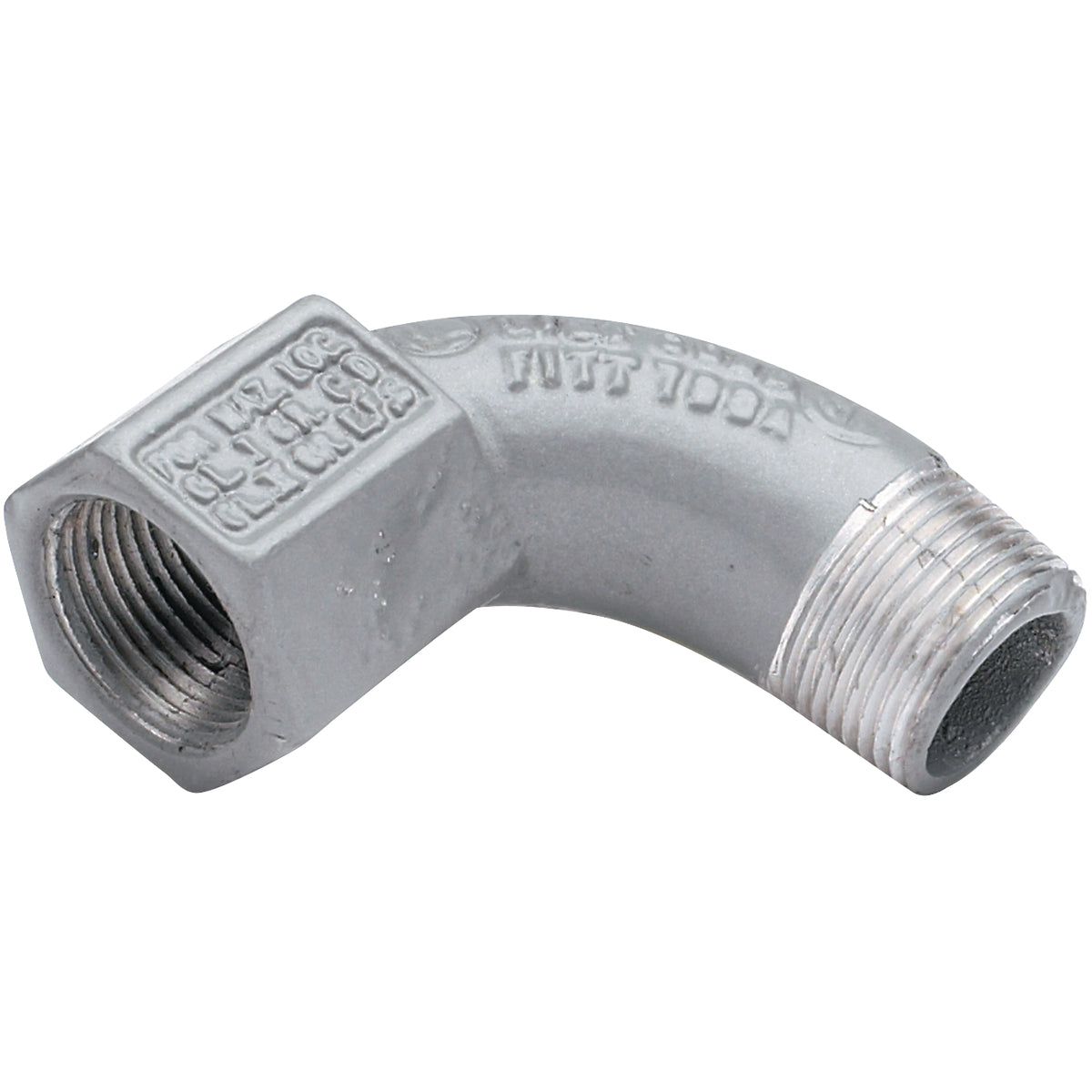

Hubbell BL90-2 Killark® BL Series Elbow Conduit 3/4IN 90DEG

Product Description

The HUBBELL BL90-2 Killark® elbow series is designed to change direction in rigid IMC conduit systems. These non-capped elbows offer a 90 degree change in direction where space is limited for pulling conductors. It is made from copper-free aluminum with an electro-statically applied powder coat paint.

• Smooth integral bushings to prevent damage to wires
• Copper-free aluminum (less than 4/10 of 1%)
• Electrostatically applied epoxy powder coated

Product Highlights

The Killark® BL series conduit elbows are ideal for use in rigid IMC conduit systems where space is limited.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: BL90-2
• Country of Origin: US

Technical Specifications

• Manufacturer: Hubbell
• Finish: Electro-Static Powder Coated
• Angle: 90 deg
• Type: Male/Female
• Series: BL Series
• Suitable For Use With: IMC/Rigid Conduit
• Color: Gray
• Dimensions: 2-5/8 in L x 3 in W x 2-1/8 in H
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Trade Size: 3/4 in
• Application: To change direction in rigid or IMC conduit systems.
• Bend Angle: 90 °
• Catalog Number: BL-90-2
• Country of Origin: US
• Standard: UL, CSA, FM APPROVED
• Standards: Class I, Div 1 & 2, Groups C,D, Class II, Div 1 & 2, Groups E,F,G Class III, CSA File No LR11716, FM File No 25215, UL File No E10514
• Width: 3.00 in
• Height: 3.00 in
• Length: 3.00 in
• Hub Size: 0.75 in
