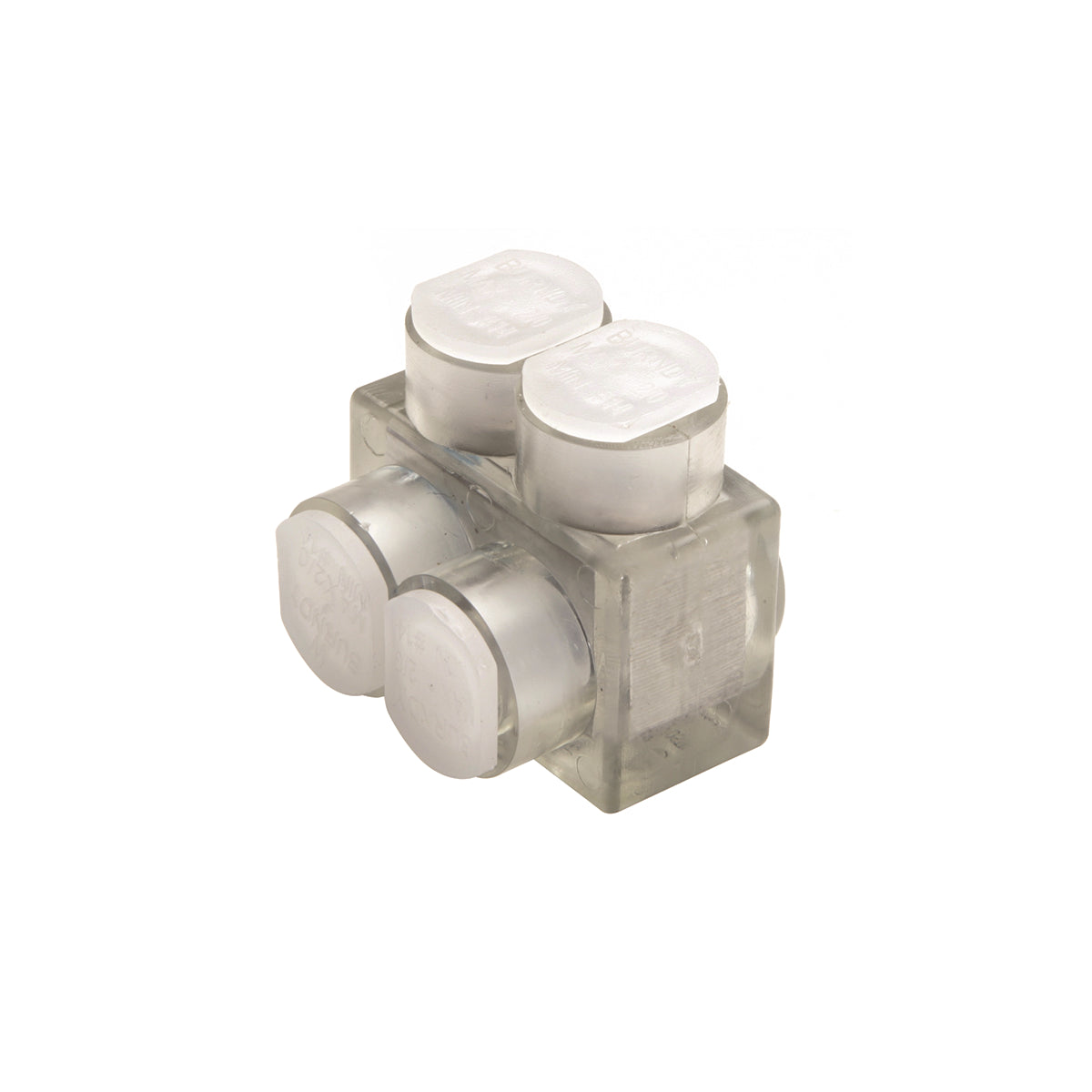

Hubbell BIT600 BURNDY UNI-TAP TERM. CONN. 600 VAC (1 EA) BIT600

Product Description

The Hubbell BIT600 is a BURNDY UNI-TAP connector designed for use with aluminum and copper stranded conductors. This product accommodates conductor sizes from four AWG to six hundred kcmil and is rated for six hundred VAC. It features a single-sided entry and meets various standards for electrical connections.

• Approved for copper or stranded aluminum use
• Clear plastisol insulation for easy conductor visibility
• Multi-port design to save on connector inventory

Product Highlights

Designed for reliable performance in electrical wiring applications, the BIT600 connector allows for efficient installation and ensures proper connection under various environmental conditions.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181022525

Technical Specifications

• Application: For copper or stranded aluminum indoor applications
• Conductor Size: 4 AWG to 600 kcmil
• Conductor Type: Aluminum/Copper Stranded
• Dimensions: 2.72 in L x 2.38 in W x 2.75 in H
• Material: Aluminum
• Series: BIT
• Specifications: 3/8 in Hex Key, 375 in-lb Torque, Multi-Port, 1-1/8 in L Wire Strip
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
