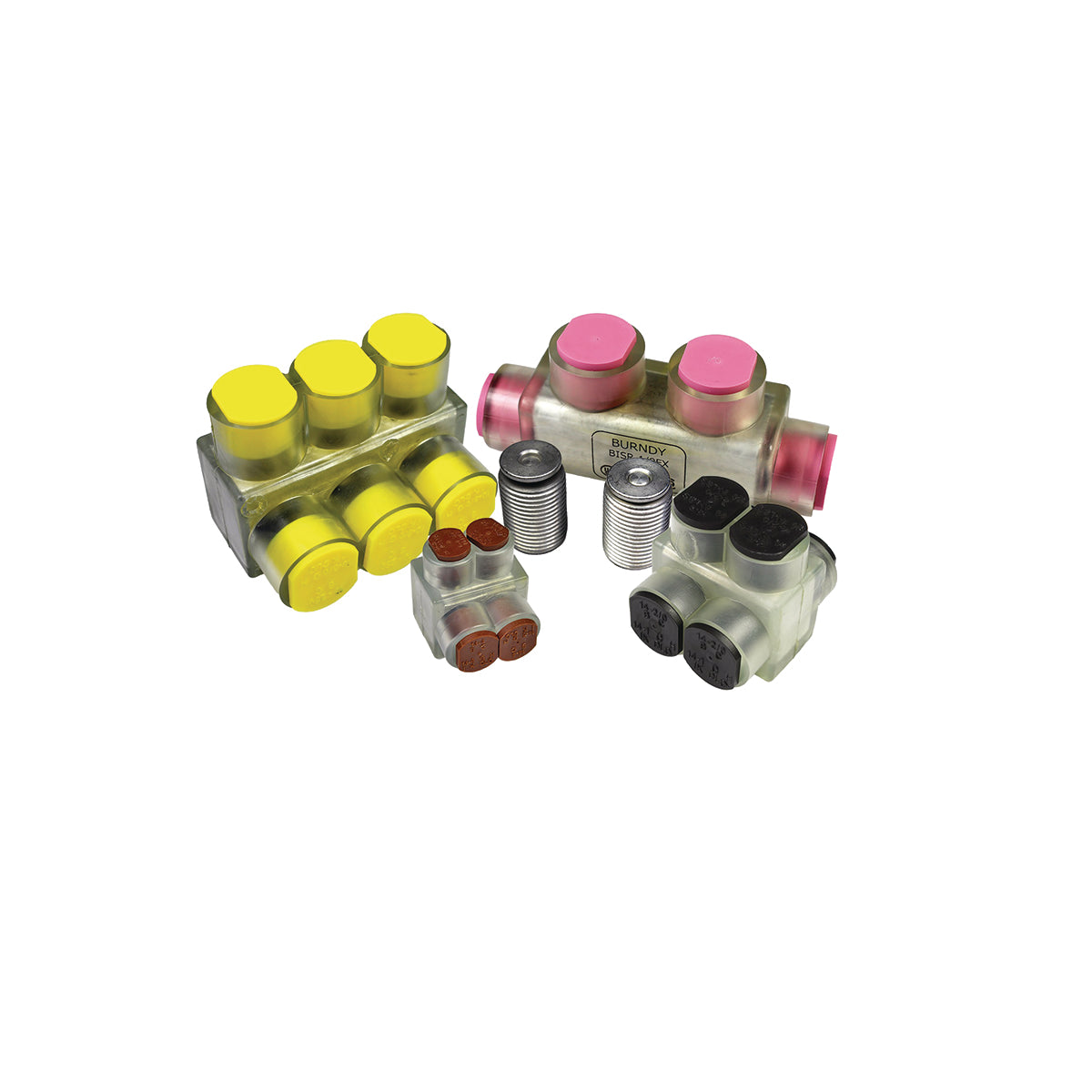

Hubbell BIT4FX BURNDY 4-4 ONE SIDED UNITAP, TAP 62194544003

Product Description

Hubbell BIT4FX is a Type 3A Bit Insulated Multi-Tap Connector. It is designed for aluminum and copper stranded conductors ranging from fourteen to four AWG. This connector allows for a secure and effective connection in various electrical applications.

• Compatible with aluminum and copper conductors
• Rated for 600 VAC
• Temperature rating from negative forty to one hundred thirty-five degrees Celsius

Product Highlights

BIT4FX is built with a clear plastisol covered aluminum body. It has an oxide inhibitor to prevent moisture from entering. This design reduces inventory needs and simplifies installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 62194544003

Technical Specifications

• Application: Clear Insulated Multiple Tap Connectors
• Conductor Size: 14 to 4 AWG, 14 to 6 AWG
• Conductor Type: Aluminum/Copper/Stranded
• Dimensions: 1.08 in L x 1.13 in W x 1.25 in H
• Finish: Tin Plated
• Voltage Rating: 600 VAC
• Temperature Rating: -40 to 135 deg C
• Manufacturer Part Number: BIT4FX
• Standards/Approvals: RoHS Compliant, UL 468A/468B
