Product Description

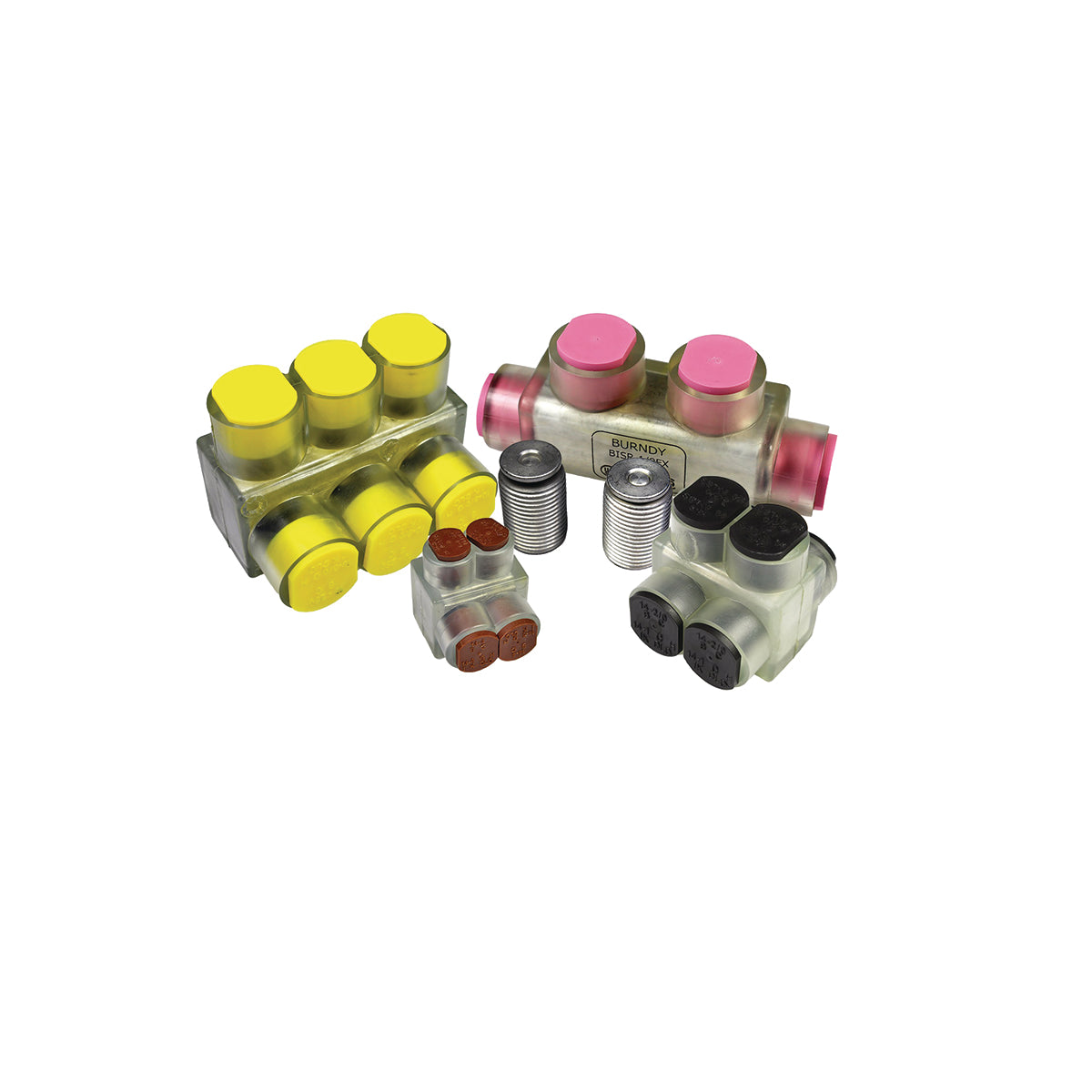

The Hubbell BIT350FX is a BURNDY UNITAP multi-tap connector designed for the electrical industry. This type 3A insulated connector accommodates conductor sizes from ten AWG to three hundred fifty kcmil.
- Multi-tap capability allows for efficient connections.
- Suitable for aluminum and copper stranded conductors.
- Temperature range of negative forty to one hundred thirty-five degrees Celsius.
Product Highlights
This product offers a clear plastisol-covered aluminum body with an oxide inhibitor to prevent corrosion and moisture infiltration.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: BIT350FX
Technical Specifications
-
Application: Clear Insulated Multiple Tap Connectors
-
Conductor Size: 10 AWG to 350 kcmil, 10 AWG to 250 kcmil
-
Conductor Type: Aluminum/Copper/Stranded
-
Voltage Rating: 600 VAC
-
Temperature Rating: -40 to 135 deg C
-
Dimensions: 2.22 in L x 2.38 in W x 2.5 in H
-
Material: Aluminum
-
Finish: Tin Plated
-
Series: BIT
-
Specifications: 2-Port, 5/16 in Hex Key, Plastisol Insulation
-
Standards/Approvals: RoHS Compliant, UL 468A/468B
