Hubbell BIT350 BURNDY UNI-TAP TERM. CONN. 10-350MCM TWO-ENTRY

Product Description

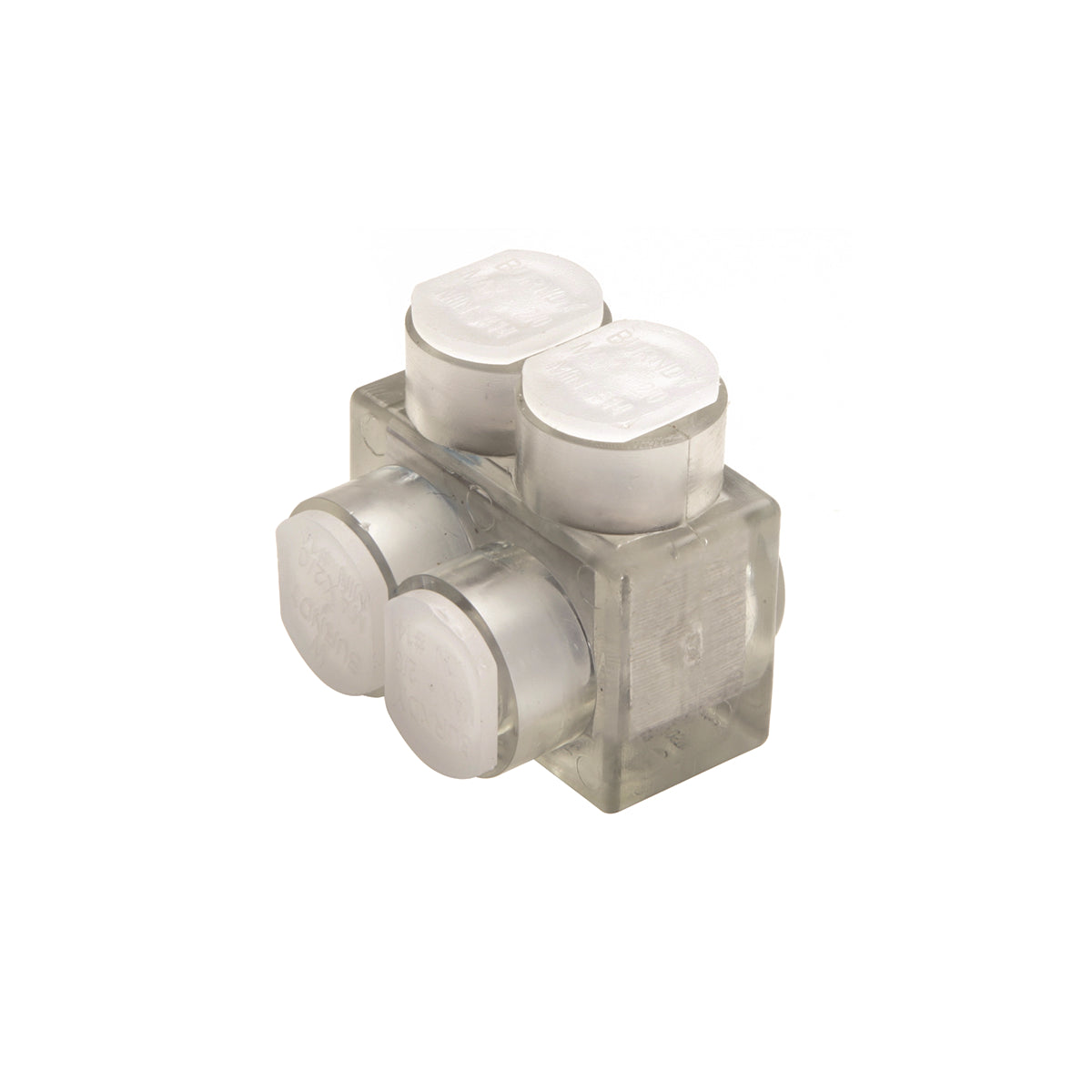

The Hubbell BIT350 is a BURNDY UNITAP Multi-Tap Connector designed for use with conductors ranging from ten AWG to 350 kcmil. This connector supports both aluminum and copper stranded conductors. It is rated for a maximum voltage of 600 VAC. The connector features a single-sided entry design, simplifying the installation process.

• Clear plastisol insulated body for easy visibility and quick installation.
• Torque rating of 275 in-lb for secure connections.
• Meets UL and CSA standards for quality and safety.

Product Highlights

Suitable for indoor applications, the BIT350 connector allows for efficient wiring connections with minimal inventory needs.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181013353

Technical Specifications

• Application: For copper or stranded aluminum and indoor applications
• Conductor Size: 10 AWG to 350 kcmil
• Conductor Type: Aluminum/Copper Stranded
• Dimensions: 2.22 in L x 2.32 in W x 2.5 in H
• Manufacturer Part Number: BIT350
• Material: Aluminum
• Series: BIT
• Specifications: 5/16 in Hex Key, 275 in-lb Torque Multi-Port, 1-1/8 in L Wire Strip
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 486A, UL 486B
