Product Description

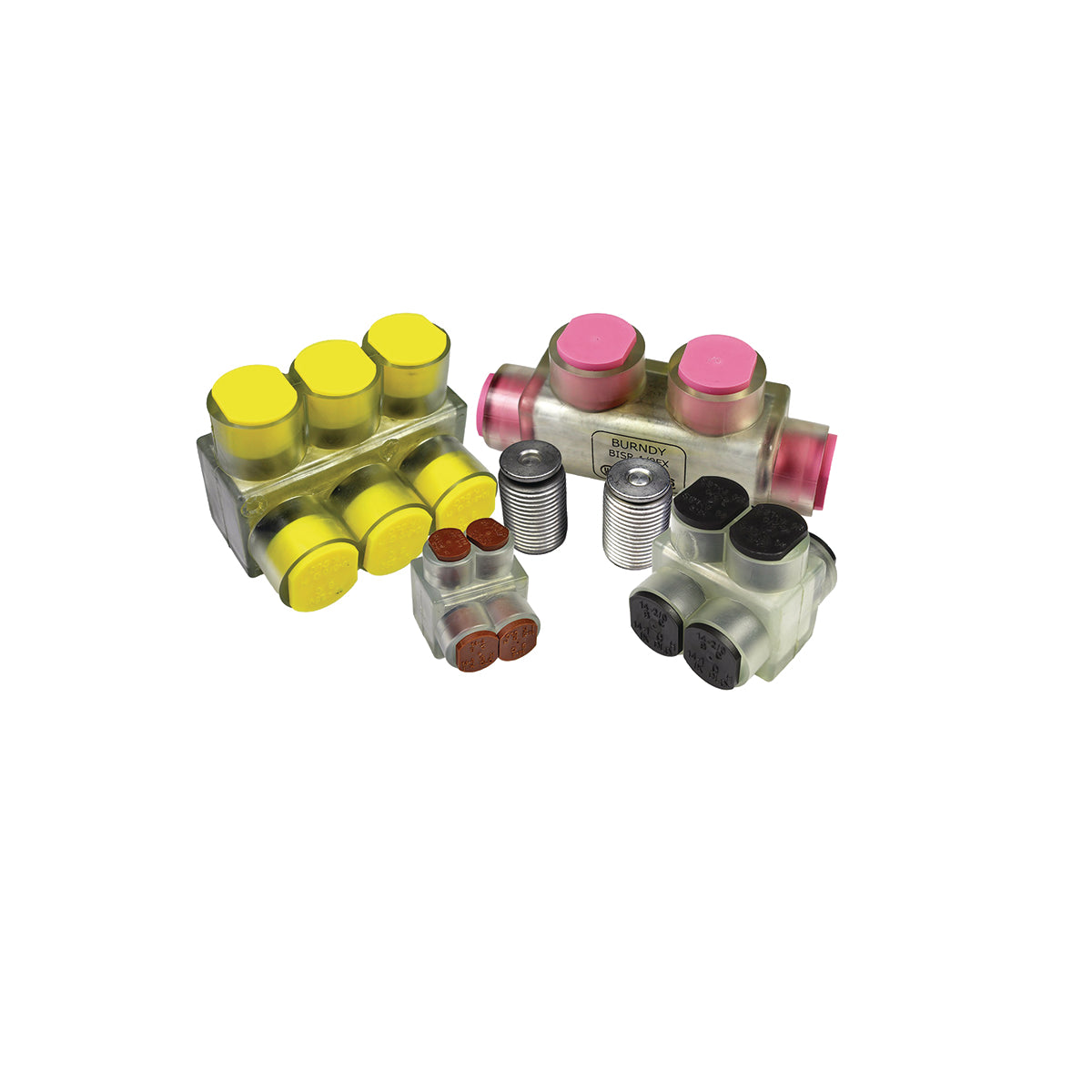

The Hubbell BIT250FX is a BURNDY UNITAP Multi-Tap Connector. This Type 3A bit insulated connector is suitable for aluminum, copper, or stranded conductors. It accommodates conductor sizes from ten AWG to two hundred fifty kcmil or ten to three aught AWG. It supports a voltage rating of six hundred VAC and is designed for a wide range of electrical applications.
- Clear plastisol-covered AL6061-T6 aluminum body
- Pre-installed oxide inhibitor to reduce moisture penetration
- Rated for temperatures from minus forty to one hundred thirty-five degrees Celsius
Product Highlights
This connector features a two-port design and is fitted with a five-sixteenth inch hex key. The plastisol insulation enhances safety and durability. It is RoHS compliant and meets various industry standards.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 62194543921
Technical Specifications
-
Application: Clear Insulated Multiple Tap Connectors
-
Conductor Size: 10 AWG to 250 kcmil, 10 to 3/0 AWG
-
Conductor Type: Aluminum/Copper/Stranded
-
Voltage Rating: 600 VAC
-
Temperature Rating: -40 to 135 deg C
-
Finish: Tin Plated
-
Material: Aluminum
-
Series: BIT
-
Specifications: 2-Port, 5/16 in Hex Key, Plastisol Insulation
-
Dimensions: 2.03 in L x 2.13 in W x 2.13 in H
-
Standards/Approvals: RoHS Compliant | UL 468A/468B | PROP65 Warning
