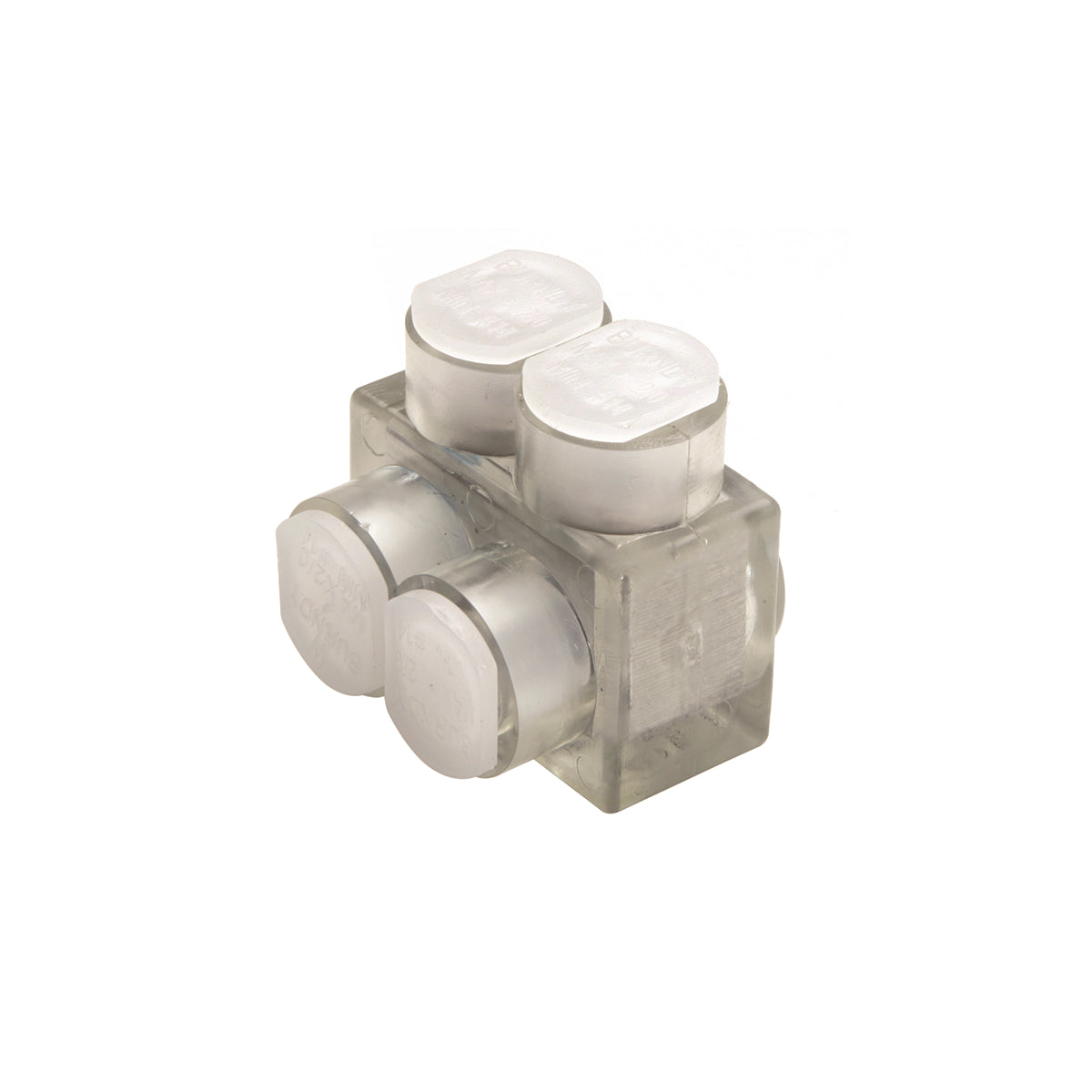

Hubbell BIT250 BURNDY UNI-TAP TERM. CONN. 10-250MCM TWO-ENTRY

Product Description

The Hubbell BIT250 is a BURNDY UNITAP Multi-Tap Connector designed for one-sided entry systems. This connector is suitable for conductors ranging from ten AWG to two hundred fifty kcmil, compatible with both aluminum and copper stranded conductors. It operates effectively at six hundred VAC and features a variety of specifications tailored for reliable performance in various electrical applications.

• Compatible with a wide range of conductor sizes
• Includes clear plastisol insulation for conductor visibility
• Designed for indoor use, enhancing installation efficiency

Product Highlights

This connector helps streamline the wire installation process while ensuring secure connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• Material: Aluminum

Technical Specifications

• Application: For copper or stranded aluminum and indoor applications
• Conductor Size: 10 AWG to 250 kcmil
• Conductor Type: Aluminum/Copper Stranded
• Dimensions: 2.13 in L x 2.08 in W x 2.14 in H
• Manufacturer Part Number: BIT250
• Specifications: 5/16 in Hex Key, 275 in-lb Torque Multi-Port, 1-3/16 in L Wire Strip
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 486A, UL 486B
