Product Description

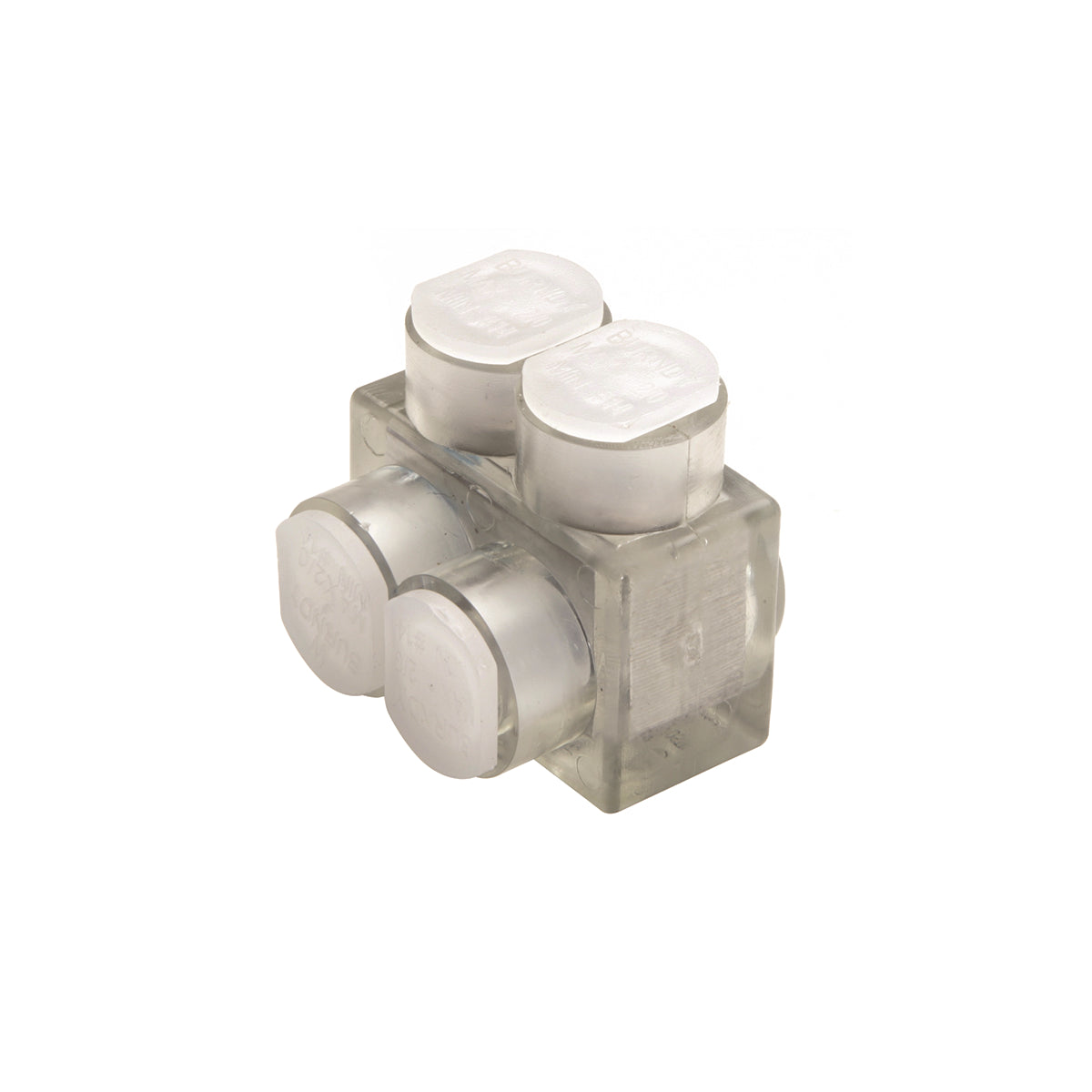

The Hubbell BIT2/0 is a BURNDY UNI-TAP multi-tap connector designed for conductors ranging from fourteen to two-aught AWG. This connector operates at a voltage rating of six hundred volts AC and is suitable for both aluminum and copper stranded conductors. The clear plastisol insulated body allows visual verification of proper conductor insertion.
- 1-sided entry design for easy access
- Accepts multiple conductor sizes
- Includes an oxide inhibitor for moisture protection
Product Highlights
Hubbell BIT2/0 is ideal for indoor applications involving copper or stranded aluminum wiring. It meets UL standards and offers an efficient solution for electrical connections.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Series: BIT
Technical Specifications
-
Application: For copper or stranded aluminum and indoor applications
-
Conductor Size: 14 to 2/0 AWG
-
Conductor Type: Aluminum/Copper Stranded
-
Dimensions: 1.52 in L x 1.4 in W x 1.38 in H
-
Manufacturer Part Number: BIT2/0
-
Material: Aluminum
-
Specifications: 3/16 in Hex Key, 120 in-lb Torque, 11/16 in L Wire Strip
-
Voltage Rating: 600 VAC
-
Temperature Rating: 90 deg C
