Hubbell BISR500FX BURNDY 500-6, In-Line Splice, Flex

Product Description

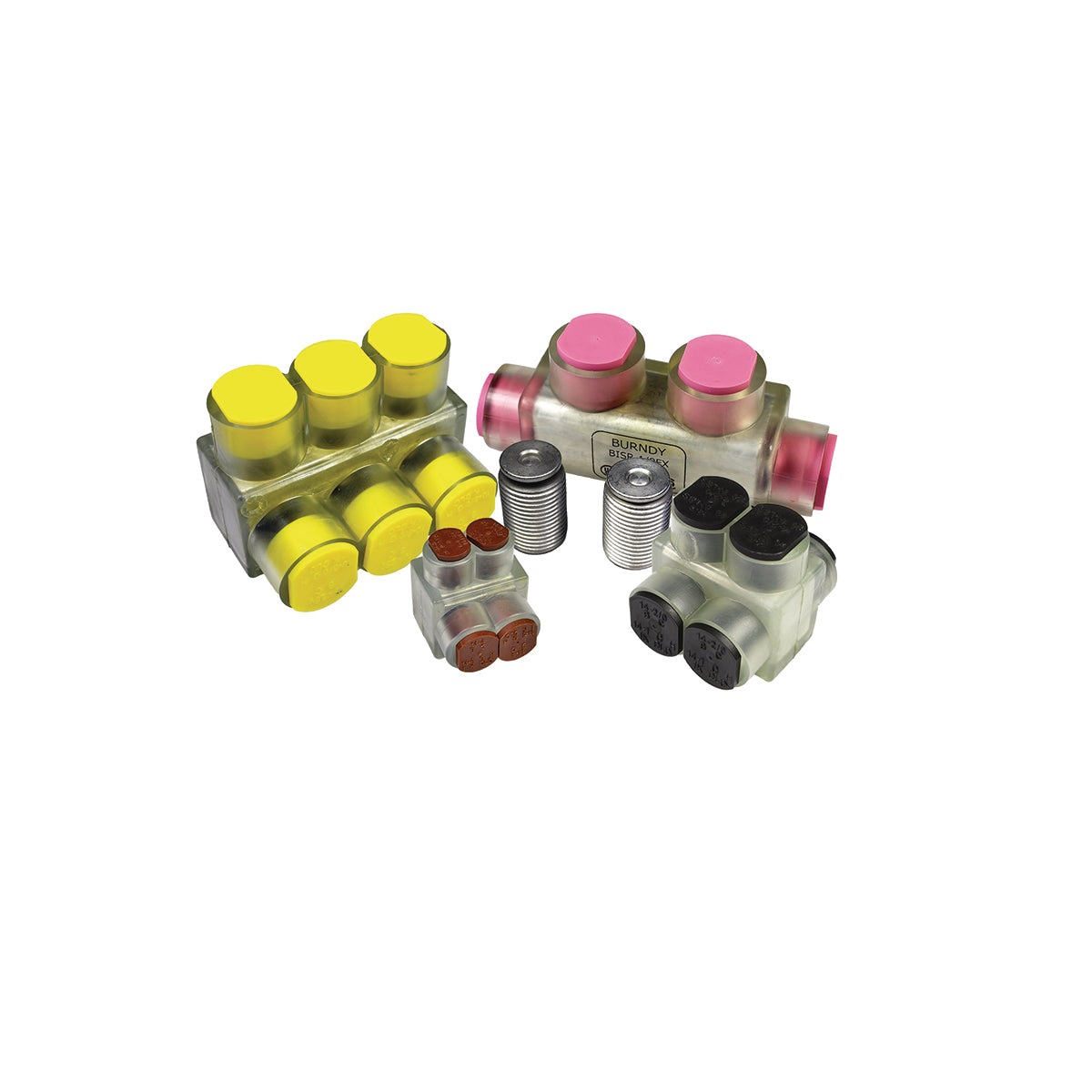

The Hubbell BISR500FX is a BURNDY® UNITAP™ splice reducer. This product features two ports and is classified as a Type 3A BISR in-line insulated splice. It is suitable for aluminum and copper stranded conductors ranging from six AWG to 373 kcmil and six AWG to 500 kcmil. The voltage rating is 600 VAC, making it ideal for various electrical applications.

• Clear plastisol insulation reduces installation time and costs.
• Oxide inhibitor pre-installed to enhance performance.
• Quick and easy tap connections and splice reductions.

Product Highlights

This splice reducer accommodates a wide range of conductor sizes and types, ensuring efficient connections with minimal effort.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 62194544071

Technical Specifications

• Application: For tap connections and in-line splice/reductions are made quickly and easily.
• Conductor Sizes: Six AWG to 373 kcmil, six AWG to 500 kcmil.
• Conductor Types: Aluminum/Copper/Stranded.
• Dimensions: Five point twenty-five inches long x one point sixty-three inches wide x two point sixty-three inches high.
• Finish: Tin Plated.
• Material: Aluminum.
• Specifications: Three eighths inch hex key, plastisol insulation.
• Voltage Rating: Six hundred VAC.
• Temperature Rating: Minus forty to one hundred thirty-five degrees Celsius.
