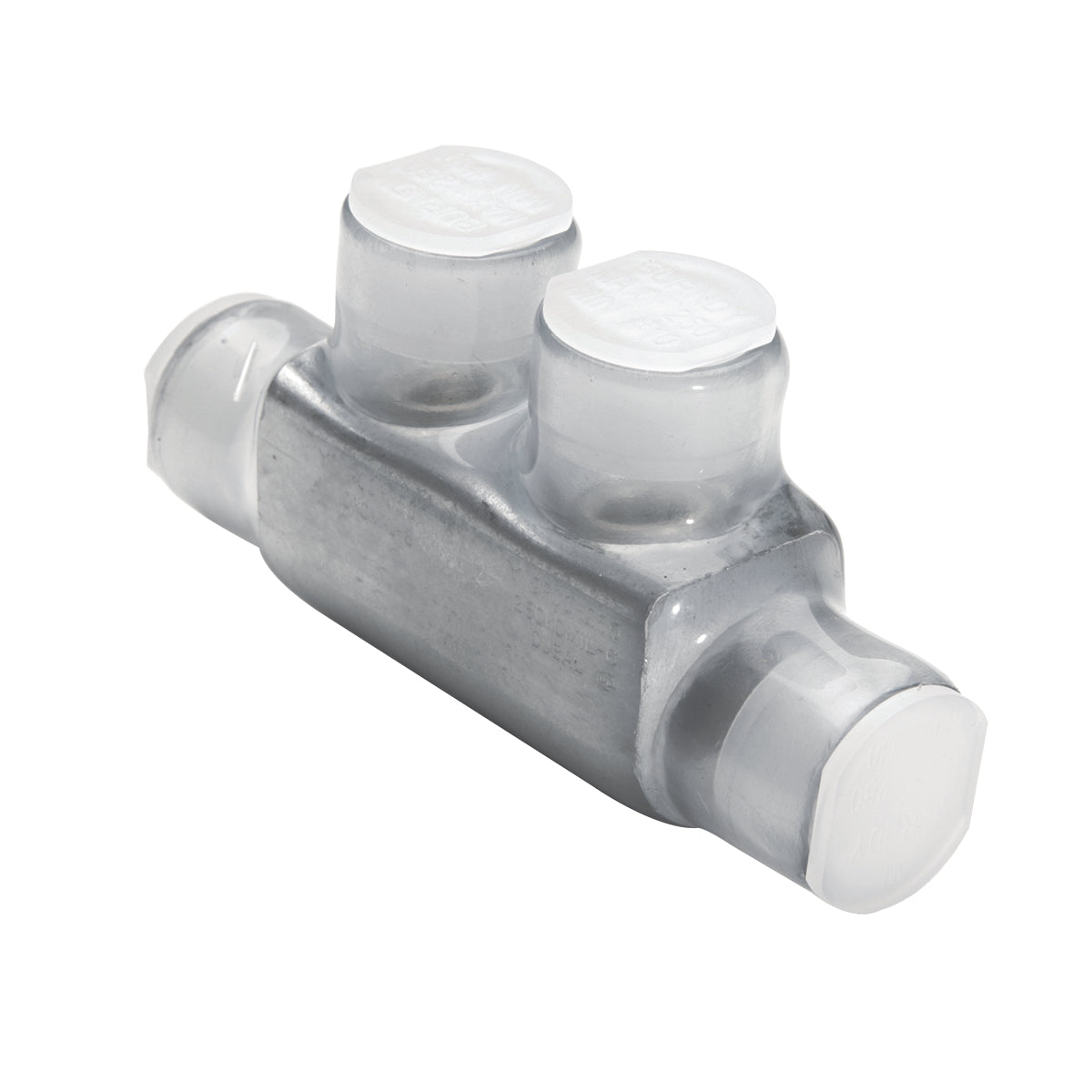

Hubbell BISR350 BISR350 BURNDY 350-10 IN-LINE SPLICE

Product Description

The Hubbell BISR350 is a BURNDY UNITAP In-Line Splice designed for electrical connections. This product is suitable for aluminum and copper conductors ranging from ten AWG to three hundred fifty kcmil. It operates at a voltage rating of six hundred VAC and is constructed to comply with multiple safety standards.

• Supports indoor applications.
• Features a pre-installed oxide inhibitor that protects against moisture.
• Clear plastisol coating for easy installation verification.

Product Highlights

Make quick and reliable in-line splices with the BISR350. The design minimizes installation time and helps reduce inventory needs.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: BISR350

Technical Specifications

• Application: Indoor Applications
• Conductor Type: Aluminum/Copper
• Dimensions: 4.63 in L x 1.34 in W x 2.35 in H
• Run Main Size: 10 AWG to 350 kcmil
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Series: BISR
• Installation Torque: 275 in-lb
