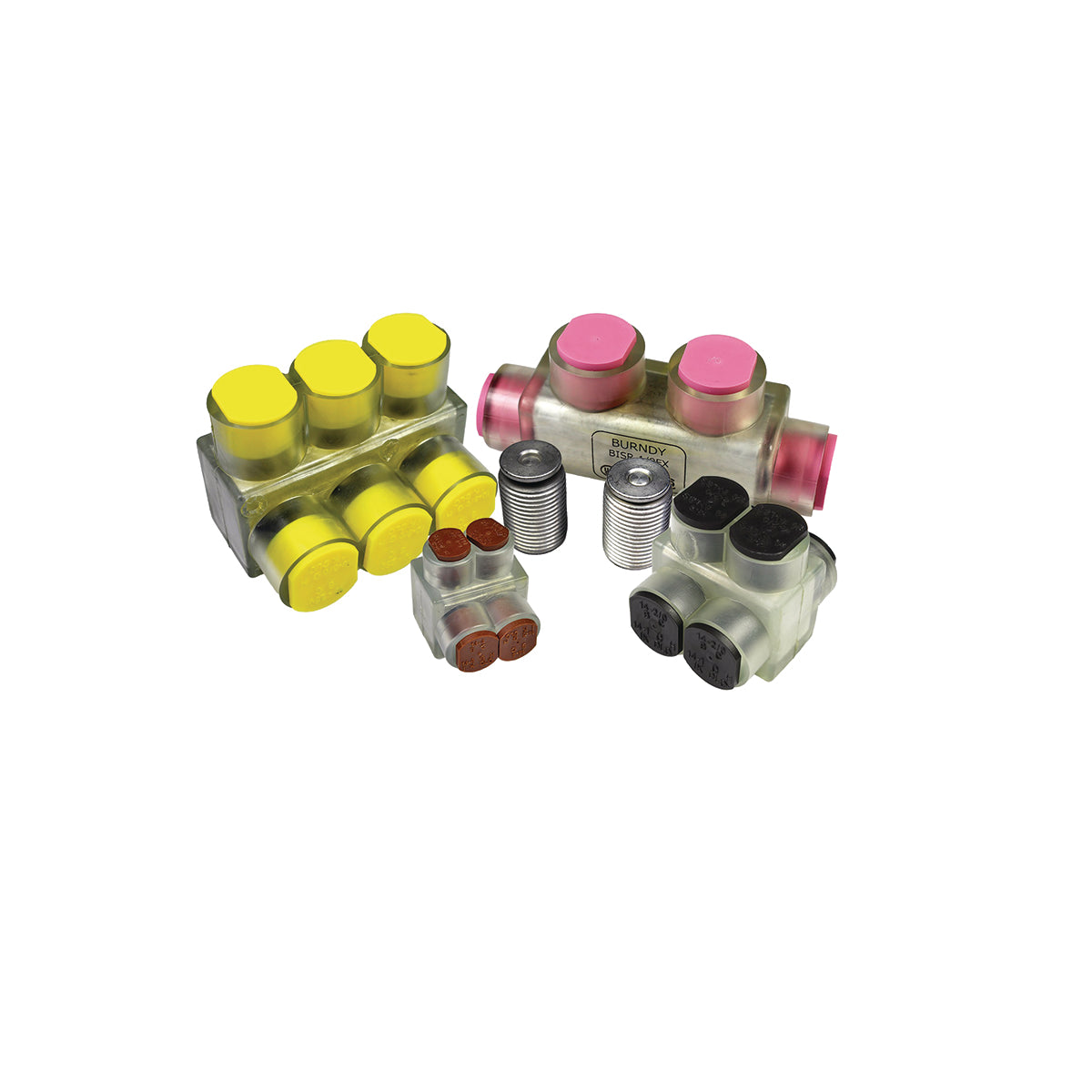

Hubbell BISR2FX BURNDY 14-2, In-Line Splice, Flex

Product Description

The Hubbell BISR2FX is an in-line insulated splice reducer designed for use with aluminum and copper stranded conductors. This splice allows for quick and easy tap connections. It accommodates conductor sizes from fourteen to two AWG and is rated for 600 VAC.

• Two-port design with 5/32 inch hex key
• Temperature range from -40 to 135 degrees Celsius
• Constructed from aluminum with a tin-plated finish

Product Highlights

The BISR2FX features plastisol insulation which protects connections from moisture and contaminants. It is suitable for various electrical applications where reliable connections are essential.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 62194543996

Technical Specifications

• Conductor Size: 14 to 2 AWG
• Voltage Rating: 600 VAC
• Dimensions: 2.38 inches L x 0.75 inches W x 1.22 inches H
• Temperature Rating: -40 to 135 degrees Celsius
• Material: Aluminum
• Series: BISR
• Specifications: Two-Port, 5/32 inch Hex Key, Plastisol Insulation
• Standards/Approvals: RoHS Compliant, UL 468A/468B
