Product Description

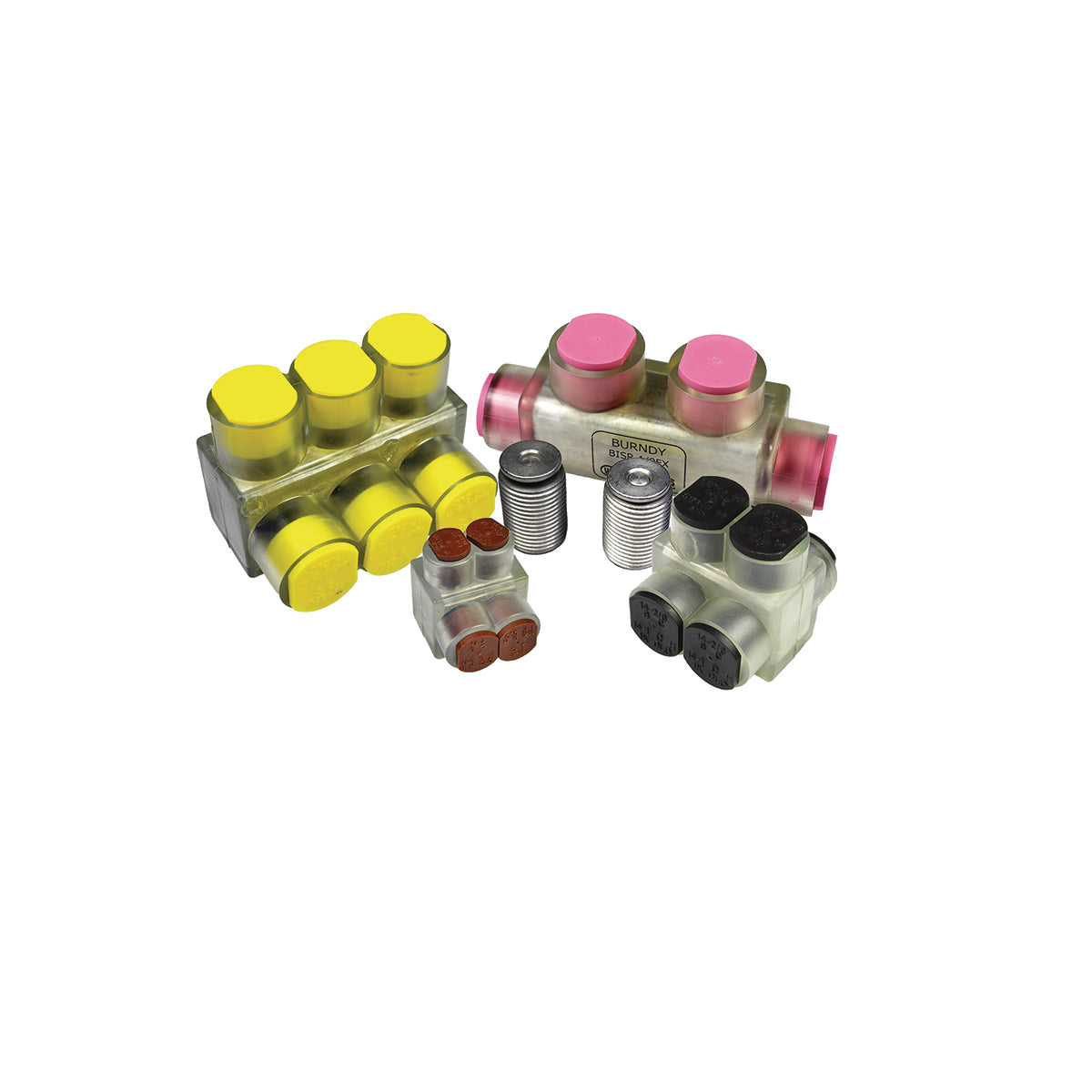

BURNDY UNITAP BISR250FX is an in-line insulated splice designed for electrical connections. This splice facilitates quick and secure connections for conductors ranging from ten AWG to two hundred fifty kcmil. It supports aluminum, copper, and stranded conductors, ensuring versatility in various applications.
- In-line insulated design for efficient installations
- Accommodates conductor sizes from 10 AWG to 250 kcmil
- Constructed from tin-plated aluminum, providing durability
Product Highlights
This splice reducer makes tap connections efficiently, reducing the need for multiple connectors.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: BISR250FX
Technical Specifications
-
Application: Ideal for tap connections and in-line splice/reductions
-
Conductor Size: 10 AWG to 250 kcmil, 10 to 3/0 AWG
-
Conductor Type: Aluminum/Copper/Stranded
-
Dimensions: 4 in L x 1.19 in W x 2.09 in H
-
Finish: Tin Plated
-
Material: Aluminum
-
Series: BISR
-
Specifications: 2-Port, 5/16 in Hex Key, Plastisol Insulation
-
Standards/Approvals: RoHS Compliant, UL 468A/468B, PROP65 warnings apply
-
Temperature Rating: 135 deg C
-
Voltage Rating: 600 VAC
